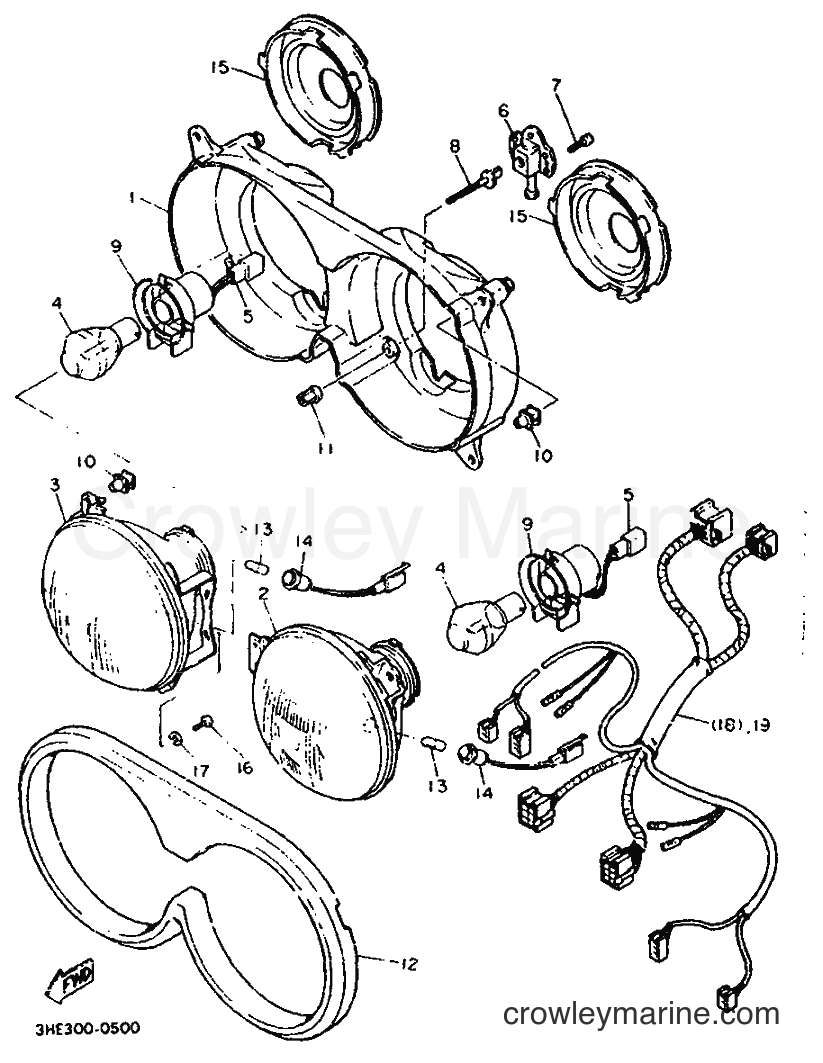

1990 Sport Bike FZR600 - FZR600 (3HG2) [999] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors FZR600 (3HG2) [999] - HEADLIGHT
Change View:
BODY ASSY
1
Yamaha Motors
BODY ASSY3HE-84330-10
Required: 1
BODY ASSY
Price unavailable
LENS ASSY
2
Yamaha Motors
LENS ASSY2GH-84320-00
Required: 1
LENS ASSY
Price unavailable
LENS ASSY
3
Yamaha Motors
LENS ASSY2GH-8432A-00
Required: 1
LENS ASSY
Price unavailable
BULB
4
Yamaha Motors
BULB*
Required: 2
BULB
Price unavailable
SOCKET
5
Yamaha Motors
SOCKET14A-84112-40
Required: 2
SOCKET
Price unavailable
-10%
Tapping Screw
7
Yamaha Motors
Tapping Screw97707-40616-00
Required: 2
SCREW, TAPPING
Supersedes: 97706-40616-00
Cross Ship
Leaves in 2-5 days
$1.85
$1.67
You save $0.19
More details
COVER, SOCKET
9
Yamaha Motors
COVER, SOCKET5T8-84397-00
Required: 2
COVER, SOCKET
Price unavailable
-10%
Neutral Lock Holder
10
Yamaha Motors
Neutral Lock Holder3AJ-8431U-00-00
Required: 2
HOLDER
Cross Ship
Leaves in 2-5 days
$10.99
$9.89
You save $1.10
More details
-10%
Adjusting Nut
11
Yamaha Motors
Adjusting Nut51L-84334-00-00
Required: 1
NUT, ADJUSTING
Cross Ship
Leaves in 2-5 days
$9.99
$8.99
You save $1.00
More details
BULB
13
Yamaha Motors
BULB*
Required: 2
BULB
Price unavailable
HOLDER, SOCKET
14
Yamaha Motors
HOLDER, SOCKET2LA-84312-00
Required: 2
HOLDER, SOCKET
Price unavailable
-10%
Screw
16
Yamaha Motors
Screw98580-04008-00
Required: 2
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
CORD, HEADLIGHT
18
Yamaha Motors
CORD, HEADLIGHT3HE-84359-50
Required: 1
CORD, HEADLIGHT
Price unavailable
CORD, HEADLIGHT
19
Yamaha Motors
CORD, HEADLIGHT3HE-84359-60
Required: 1
CORD, HEADLIGHT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
