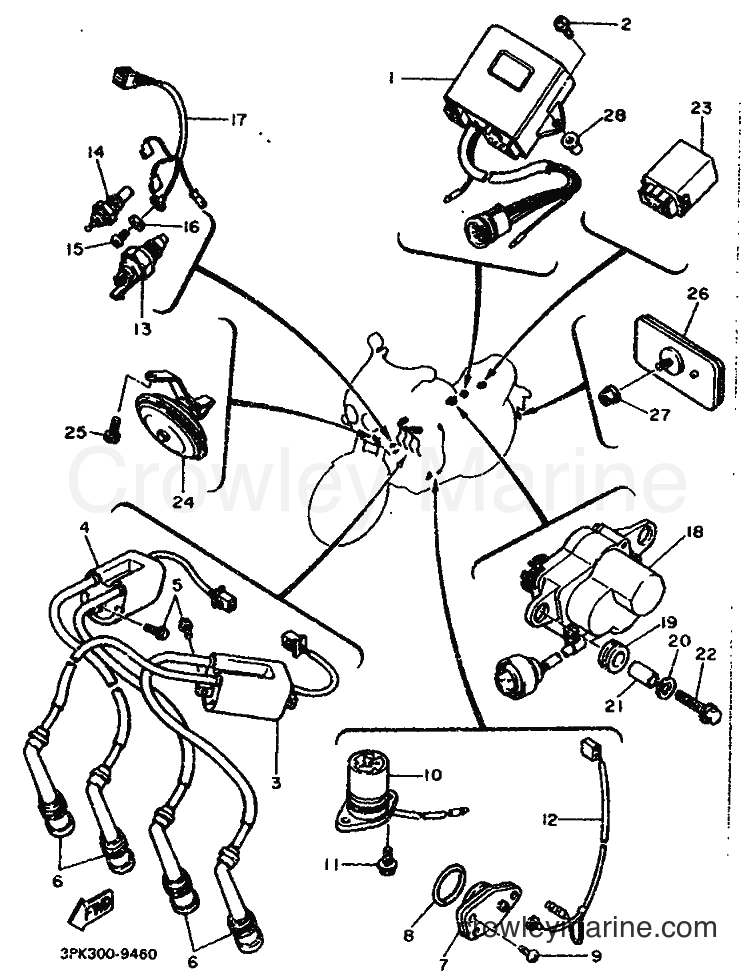

1990 Sport Bike FZR750R - FZR750R (3PK2) [010] ELECTRICAL 1 diagram
![Yamaha Motors FZR750R (3PK2) [010] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/mQYV3x1I.png)
-10%
1
Yamaha Motors
Ignitor Unit Assembly3PK-82305-00-00
Required: 1
IGNITOR UNIT ASSY
No longer availableSearch Nationwide Inventory
$500.39
You save $55.60
-10%
2
Yamaha Motors
Socket Bolt98907-05016-00
Required: 2
SCREW, bind
Supersedes: 98906-05016-00
$8.54
You save $0.95
-10%
3
Yamaha Motors
IGNITION COIL ASSEMBLY3FV-82310-00-00
Required: 1
IGNITION COIL ASSY
$68.39
You save $7.60
-10%
4
Yamaha Motors
IGNITION COIL ASSEMBLY1WG-82310-09-00
Required: 1
IGNITION COIL ASSY
Supersedes: 3FV-82320-00-00
No longer availableSearch Nationwide Inventory
$257.39
You save $28.60
-50%
5
Yamaha Motors
Flange Bolt95817-06020-00
Required: 4
BOLT, flange
Supersedes: 91001-06020-00
In stock
Only 2 remaining
$1.75
You save $1.75
-10%
$119.69
You save $13.30
-10%
7
Yamaha Motors
NEUTRAL SWITCH ASSEMBLY1AE-82540-00-00
Required: 1
NEUTRAL SWITCH ASSY
$30.59
You save $3.40
-10%
$8.54
You save $0.95
-15%
9
Yamaha Motors
Pan Head Screw98580-06016-00
Required: 2
SCREW, pan head
Supersedes: 92502-06016-00
In stock
5+ in stock
$2.93
You save $0.52
10
Yamaha Motors
OIL LEVEL GAUGE ASSEMBLY3FV-85720-00-00
Required: 1
OIL LEVEL GAUGE ASSY
$113.91
-10%
11
Yamaha Motors
Washer Based Bolt90105-06696-00
Required: 2
BOLT, flange
Supersedes: 95026-06016-00
$9.44
You save $1.05
-10%
12
Yamaha Motors
SUB LEAD WIRE1AE-82509-00-00
Required: 1
WIRE, sub lead
Supersedes: 3FV-82509-00-00
No longer availableSearch Nationwide Inventory
$34.19
You save $3.80
-10%
13
Yamaha Motors
Thermo Switch Assembly3LN-82560-01-00
Required: 1
THERMO SWITCH ASSY
Supersedes: 2EL-82560-00-00
$81.89
You save $9.10
-10%
No longer availableSearch Nationwide Inventory
$38.69
You save $4.30
-50%
15
Yamaha Motors
Pan Head Screw98507-05008-00
Required: 1
SCREW, pan head
Supersedes: 98506-05008-00
In stock
Only 1 remaining
$1.92
You save $1.92
-10%
16
Yamaha Motors
Spring Washer92907-05100-00
Required: 1
WASHER, spring
Supersedes: 92906-05100-00
$8.54
You save $0.95
-10%
17
Yamaha Motors
SUB LEAD WIRE2GH-82509-00-00
Required: 1
WIRE, sub lead
No longer availableSearch Nationwide Inventory
$26.09
You save $2.90
-10%
18
Yamaha Motors
3HW-85820-02-003HW-85820-01-00
Required: 1
SERVO MOTOR ASSY
No longer availableSearch Nationwide Inventory
$323.99
You save $36.00
-10%
No longer availableSearch Nationwide Inventory
$5.39
You save $0.60
-10%
20
Yamaha Motors
Plate Washer90201-06380-00
Required: 2
WASHER, plate
Supersedes: 90201-06067-00
$0.59
You save $0.06
-10%
21
Yamaha Motors
COLLAR90387-0609L-00
Required: 2
COLLAR
Supersedes: 90387-065V1-00
$3.60
You save $0.40
-10%
22
Yamaha Motors
Flange Bolt95817-06040-00
Required: 2
BOLT, flange
Supersedes: 91001-06040-00
$5.84
You save $0.65
-10%
23
Yamaha Motors
Flasher Relay Assembly2UJ-83350-01-00
Required: 1
FLASHER RELAY ASSY
Supersedes: 2UJ-83350-00-00
$134.99
You save $15.00
-10%
No longer availableSearch Nationwide Inventory
$33.22
You save $3.69
-10%
No longer availableSearch Nationwide Inventory
$2.07
You save $0.23
-10%
26
Yamaha Motors
4KM-85130-00-003G1-85130-01-00
Required: 1
REAR REFLECTOR ASSY
No longer availableSearch Nationwide Inventory
$11.69
You save $1.30
-10%
27
Yamaha Motors
Flange Nut95707-05500-00
Required: 1
NUT, flange
Supersedes: 95706-05500-00
$8.54
You save $0.95
-20%
In stock
Only 5 remaining
$5.99
You save $1.50
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
