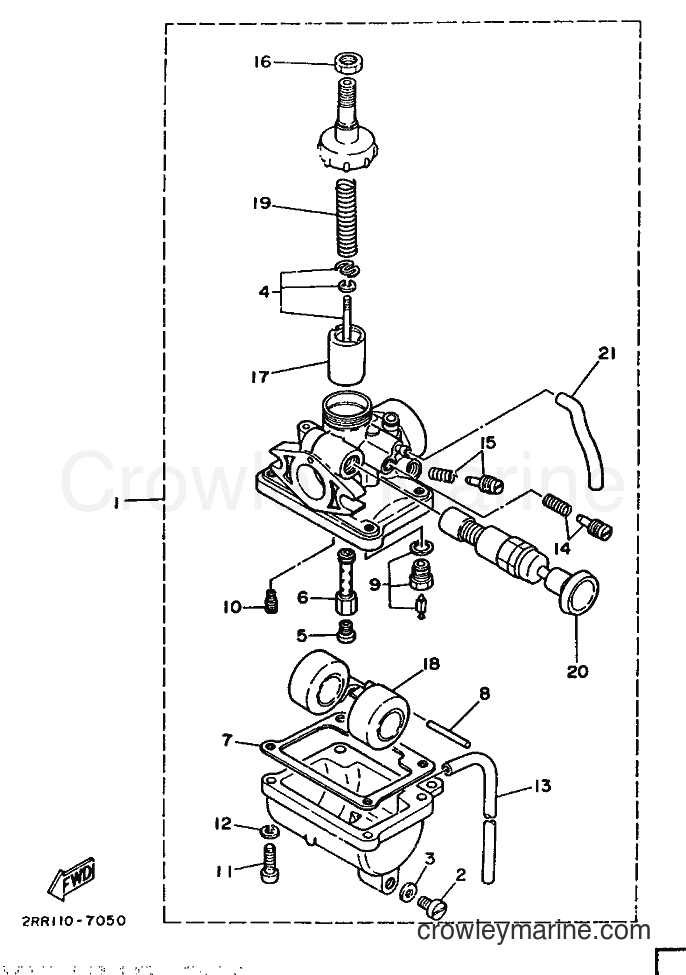

1990 Sport Bike YSR50 - YSR50 (3FD7) [010] CARBURETOR diagram
![Yamaha Motors YSR50 (3FD7) [010] - CARBURETOR](https://cdn.crowleymarine.com/yamaha/xoDYaFwK.png)
-10%
1
Yamaha Motors
Carburetor Assembly2AL-14101-01-00
Required: 1
CARBURETOR ASSY 1
No longer availableSearch Nationwide Inventory
$301.49
You save $33.50
-10%
2
Yamaha Motors
Drain Plug68V-14191-00-00
Required: 1
.PLUG, drain
Supersedes: 266-14191-00-00
No longer availableSearch Nationwide Inventory
$3.64
You save $0.41
-10%
No longer availableSearch Nationwide Inventory
$3.19
You save $0.35
-10%
No longer availableSearch Nationwide Inventory
$23.39
You save $2.60
-10%
5
Yamaha Motors
Main Jet #120127-14143-24-00
Required: 1
.JET, main (#120)
$6.74
You save $0.75
-10%
6
Yamaha Motors
Main Nozzle127-14141-10-00
Required: 1
.NOZZLE, main
No longer availableSearch Nationwide Inventory
$22.49
You save $2.50
-10%
7
Yamaha Motors
Float Chamber Gasket353-14184-00-00
Required: 1
.GASKET, float chamber
$13.94
You save $1.55
-10%
$7.64
You save $0.85
-10%
9
Yamaha Motors
Needle Valve Assembly31J-14107-20-00
Required: 1
.NEEDLE VALVE SET
Supersedes: 31J-14107-00-00
$40.49
You save $4.50
10
Yamaha Motors
.JET, pilot (#17.5)250-14142-17
Required: 1
.JET, pilot (#17.5)
Price unavailable
-10%
11
Yamaha Motors
98580-04014-0098504-04014-00
Required: 4
.SCREW, pan head
Supersedes: 98503-04014-00
No longer availableSearch Nationwide Inventory
$1.80
You save $0.20
12
Yamaha Motors
WASHER92903-04100-00
Required: 4
.WASHER, spring
Supersedes: 92902-04100-00
No longer availableSearch Nationwide Inventory
$1.43
-20%
13
Yamaha Motors
Hose (L700)90445-05M07-00
Required: 1
.HOSE
Supersedes: 90445-05319-00
In stock
Only 5 remaining
$5.19
You save $1.30
-10%
14
Yamaha Motors
THROTTLE SCREW SET12G-14103-00-00
Required: 1
.THROTTLE SCREW SET
$26.09
You save $2.90
-10%
15
Yamaha Motors
Air Screw Kit36R-14104-00-00
Required: 1
.AIR SCREW SET
Supersedes: 12G-14104-00-00
$9.89
You save $1.10
-10%
16
Yamaha Motors
Cap8A7-14169-00-00
Required: 1
.NUT, cable throttle
Supersedes: 802-14169-00-00
$17.99
You save $2.00
-10%
17
Yamaha Motors
THROTTLE VALVE353-14112-20-00
Required: 1
.VALVE, throttle 1
No longer availableSearch Nationwide Inventory
$62.99
You save $7.00
-10%
No longer availableSearch Nationwide Inventory
$36.89
You save $4.10
-10%
19
Yamaha Motors
THROTTLE VALVE SPRING353-14131-00-00
Required: 1
.SPRING, throttle valve
No longer availableSearch Nationwide Inventory
$8.99
You save $1.00
-10%
20
Yamaha Motors
Starter Plunger2GX-14171-00-00
Required: 1
.PLUNGER, starter
No longer availableSearch Nationwide Inventory
$119.69
You save $13.30
-10%
$17.99
You save $2.00
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
