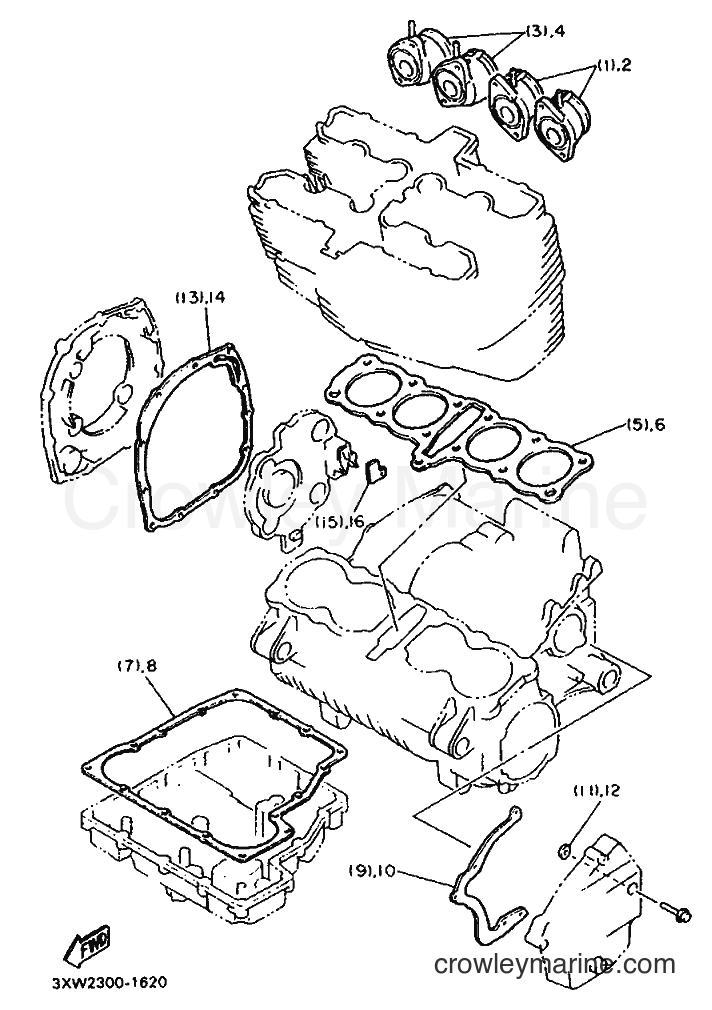

1991 Sport Bike FJ1200A - FJ1200A (4BS2) [999] ALTERNATE FOR ENGINE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors FJ1200A (4BS2) [999] - ALTERNATE FOR ENGINE
Change View:
-10%
Carburetor Joint 1
1
Yamaha Motors
Carburetor Joint 136Y-13586-10-00
Required: 1
JOINT, CARBURETOR 1
Supersedes: 36Y-13586-00-00
Cross Ship
Leaves in 2-5 days
$82.99
$74.69
You save $8.30
More details
MANIFOLD
2
Yamaha Motors
MANIFOLD47E-13585-00
Required: 2
MANIFOLD
Price unavailable
-10%
Carburetor Joint
3
Yamaha Motors
Carburetor Joint36Y-13596-10-00
Required: 1
JOINT, CARBURETOR 2
Supersedes: 36Y-13596-00-00
Cross Ship
Leaves in 2-5 days
$105.99
$95.39
You save $10.60
More details
JOINT, CARBURETOR 2
4
Yamaha Motors
JOINT, CARBURETOR 247E-13596-00
Required: 2
JOINT, CARBURETOR 2
Price unavailable
-10%
CYLINDER GASKET
5
Yamaha Motors
CYLINDER GASKET4CR-11351-00-00
Required: 1
GASKET, CYLINDER
Supersedes: 1TX-11351-00-00
Cross Ship
Leaves in 2-5 days
$37.99
$34.19
You save $3.80
More details
GASKET, CYLINDER
6
Yamaha Motors
GASKET, CYLINDER1TX-11351-10
Required: 1
GASKET, CYLINDER
Price unavailable
-10%
STRAINER COVER GASKET
7
Yamaha Motors
STRAINER COVER GASKET4CR-13414-00-00
Required: 1
GASKET, STRAINER COVER
Supersedes: 36Y-13414-00-00
Cross Ship
Leaves in 2-5 days
$46.99
$42.29
You save $4.70
More details
GASKET, STRAINER COVER
8
Yamaha Motors
GASKET, STRAINER COVER36Y-13414-10
Required: 1
GASKET, STRAINER COVER
Price unavailable
-10%
CRANKCASE COVER GASKET
9
Yamaha Motors
CRANKCASE COVER GASKET4CR-15451-00-00
Required: 1
GASKET, CRANKCASE COVER 1
Supersedes: 36Y-15451-01-00
Cross Ship
Leaves in 2-5 days
$28.99
$26.09
You save $2.90
More details
GASKET, CRANKCASE COVER 1
10
Yamaha Motors
GASKET, CRANKCASE COVER 136Y-15451-10
Required: 1
GASKET, CRANKCASE COVER 1
Price unavailable
-10%
Tank Cap Gasket
11
Yamaha Motors
Tank Cap Gasket3FA-15467-00-00
Required: 1
GASKET
Supersedes: 1UF-15467-00-00
Cross Ship
Leaves in 2-5 days
$7.49
$6.74
You save $0.75
More details
GASKET
12
Yamaha Motors
GASKET36Y-15467-10
Required: 1
GASKET
Price unavailable
-10%
Crankcase Cover Gasket
13
Yamaha Motors
Crankcase Cover Gasket5WM-15461-02-00
Required: 1
GASKET, CRANKCASE COVER 2
Supersedes: 1TX-15461-00-00
Cross Ship
Leaves in 2-5 days
$35.99
$32.39
You save $3.60
More details
GASKET, CRANKCASE COVER 2
14
Yamaha Motors
GASKET, CRANKCASE COVER 21TX-15461-10
Required: 1
GASKET, CRANKCASE COVER 2
Price unavailable
-10%
Breather Gasket
15
Yamaha Motors
Breather Gasket4CR-15374-00-00
Required: 1
GASKET, BREATHER
Supersedes: 1TX-15374-00-00
Cross Ship
Leaves in 2-5 days
$3.65
$3.29
You save $0.36
More details
GASKET, BREATHER
16
Yamaha Motors
GASKET, BREATHER1TX-15374-10
Required: 1
GASKET, BREATHER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
