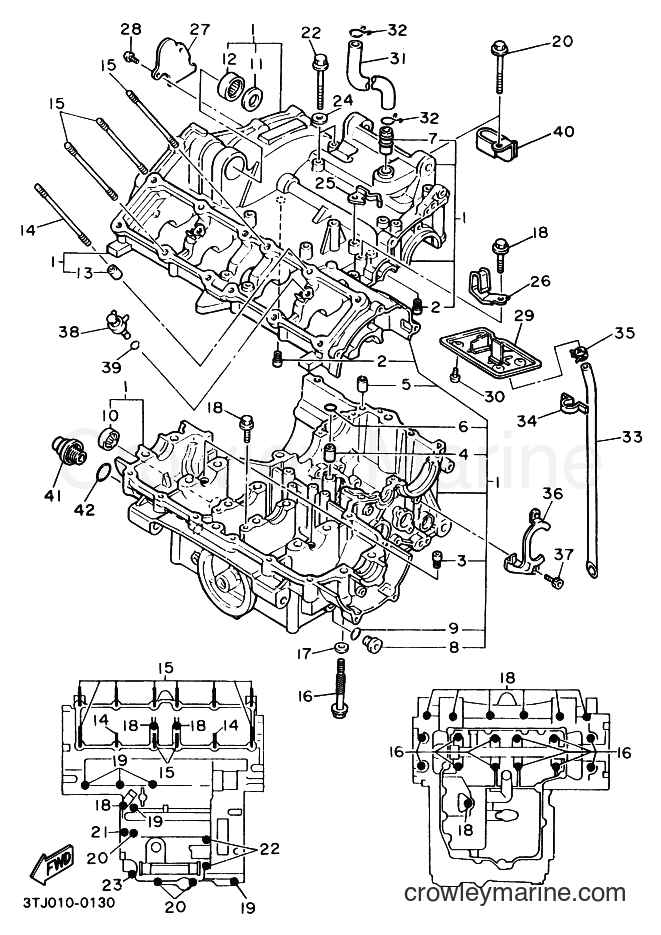

1992 Sport Bike FZR400RR - FZR400RR (4DX2) [999] CRANKCASE diagram
![Yamaha Motors FZR400RR (4DX2) [999] - CRANKCASE](https://cdn.crowleymarine.com/yamaha/4BM1aNK5.png)
1
Yamaha Motors
CRANKCASE ASSY3TJ-15100-01
Required: 1
CRANKCASE ASSY
Price unavailable
-10%
$8.99
You save $1.00
-10%
$4.37
You save $0.49
-10%
No longer availableSearch Nationwide Inventory
$8.09
You save $0.90
-50%
5
Yamaha Motors
Dowel Pin99530-12016-00
Required: 1
. PIN, DOWEL
Supersedes: 99510-12016-00
In stock
Only 2 remaining
$2.45
You save $2.45
6
Yamaha Motors
. O-RING93210-15152
Required: 1
. O-RING
Price unavailable
-10%
7
Yamaha Motors
Breather Pipe371-11167-01-00
Required: 1
. PIPE, BREATHER 2
$13.04
You save $1.45
-10%
8
Yamaha Motors
PLUG36Y-15189-01-00
Required: 2
. PLUG
Supersedes: 36Y-15189-00-00
$13.94
You save $1.55
-50%
In stock
Only 4 remaining
$4.25
You save $4.25
-10%
10
Yamaha Motors
Level Gauge2H7-15361-00-00
Required: 1
. GAUGE, LEVEL
$95.39
You save $10.60
-10%
11
Yamaha Motors
Plate Washer90201-237K5-00
Required: 1
. WASHER, PLATE
No longer availableSearch Nationwide Inventory
$3.56
You save $0.40
-10%
$34.19
You save $3.80
-10%
13
Yamaha Motors
Dowel Pin93612-16254-00
Required: 2
. PIN, DOWEL
Supersedes: 91810-08016-00
$5.84
You save $0.65
14
Yamaha Motors
BOLT, STUD90116-09543
Required: 2
BOLT, STUD
Price unavailable
15
Yamaha Motors
BOLT, STUD90116-09542
Required: 10
BOLT, STUD
Price unavailable
-10%
16
Yamaha Motors
Washer Based Bolt90105-08630-00
Required: 12
BOLT, WASHER BASED
No longer availableSearch Nationwide Inventory
$7.64
You save $0.85
-10%
$3.38
You save $0.38
-10%
18
Yamaha Motors
Flange Bolt95817-06040-00
Required: 10
BOLT, FLANGE
Supersedes: 95811-06040-00
$5.84
You save $0.65
-10%
19
Yamaha Motors
Flange Bolt95817-06050-00
Required: 5
BOLT, FLANGE
Supersedes: 95811-06050-00
$4.14
You save $0.46
-10%
20
Yamaha Motors
Flange Bolt95817-06070-00
Required: 3
BOLT, FLANGE
Supersedes: 95811-06070-00
$4.94
You save $0.55
-10%
21
Yamaha Motors
Flange Bolt95817-06080-00
Required: 1
BOLT, FLANGE
Supersedes: 95811-06080-00
$4.94
You save $0.55
-10%
22
Yamaha Motors
Flange Bolt95817-06090-00
Required: 2
BOLT, FLANGE
Supersedes: 95811-06090-00
$3.46
You save $0.38
-10%
23
Yamaha Motors
Flange Bolt95817-08070-00
Required: 1
BOLT, FLANGE
Supersedes: 95811-08070-00
$4.41
You save $0.49
-50%
In stock
Only 1 remaining
$2.02
You save $2.02
-10%
No longer availableSearch Nationwide Inventory
$4.94
You save $0.55
-10%
No longer availableSearch Nationwide Inventory
$5.39
You save $0.60
-10%
27
Yamaha Motors
Breather Plate1WG-11165-00-00
Required: 1
PLATE, BREATHER
No longer availableSearch Nationwide Inventory
$0.89
You save $0.10
-10%
28
Yamaha Motors
Pan Head Screw98511-06012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98501-06012-00
No longer availableSearch Nationwide Inventory
$2.07
You save $0.23
-10%
29
Yamaha Motors
Breather Plate1WG-11145-00-00
Required: 1
PLATE, BREATHER 2
No longer availableSearch Nationwide Inventory
$12.38
You save $1.38
-10%
30
Yamaha Motors
Pan Head Screw98511-06012-00
Required: 4
SCREW, PAN HEAD
Supersedes: 98501-06012-00
No longer availableSearch Nationwide Inventory
$2.07
You save $0.23
-10%
31
Yamaha Motors
BREATHER PIPE1WG-11166-00-00
Required: 1
PIPE, BREATHER 1
No longer availableSearch Nationwide Inventory
$23.39
You save $2.60
-10%
$8.54
You save $0.95
33
Yamaha Motors
HOSE90445-116G3
Required: 1
HOSE
Price unavailable
-10%
$3.46
You save $0.38
-10%
$2.07
You save $0.23
-10%
36
Yamaha Motors
BEARING COVER PLATE1WG-15381-00-00
Required: 1
PLATE, BEARING COVER
No longer availableSearch Nationwide Inventory
$12.14
You save $1.35
-10%
37
Yamaha Motors
BOLT91314-06012-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-06145-00
$8.54
You save $0.95
-10%
38
Yamaha Motors
NOZZLE ASSEMBLY5RT-15105-00-00
Required: 2
NOZZLE ASSY
Supersedes: 3HE-15105-00-00
No longer availableSearch Nationwide Inventory
$39.59
You save $4.40
-15%
In stock
5+ in stock
$8.07
You save $1.42
-10%
No longer availableSearch Nationwide Inventory
$9.44
You save $1.05
41
Yamaha Motors
PLUG3TJ-15189-00
Required: 1
PLUG
Price unavailable
-50%
In stock
Only 4 remaining
$4.25
You save $4.25
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
