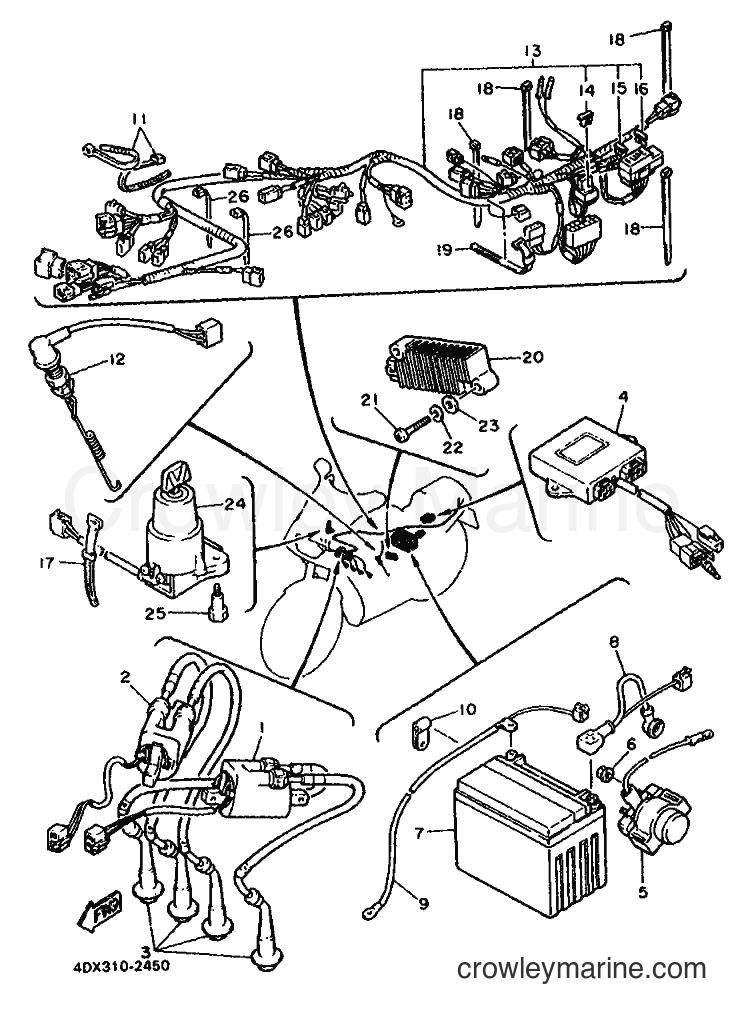

1992 Sport Bike FZR400RR - FZR400RR (4DX2) [999] ELECTRICAL 1 diagram
![Yamaha Motors FZR400RR (4DX2) [999] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/p2Wd0FZk.png)
1
Yamaha Motors
IGNITION COIL ASSY3TJ-82310-00
Required: 1
IGNITION COIL ASSY
Price unavailable
2
Yamaha Motors
IGNITION COIL ASSY3TJ-82320-00
Required: 1
IGNITION COIL ASSY
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$98.09
You save $10.90
4
Yamaha Motors
IGNITOR UNIT ASSY4DX-82305-00
Required: 1
IGNITOR UNIT ASSY
Price unavailable
-10%
5
Yamaha Motors
Starter Switch Assembly36Y-81940-00-00
Required: 1
STARTER RELAY ASSY
$150.29
You save $16.70
-10%
No longer availableSearch Nationwide Inventory
$2.12
You save $0.23
-10%
7
Yamaha Motors
YTX9BS YUASA BATTERYTX-9BS00-00-00
Required: 1
BATTERY ASSY
Supersedes: 3PK-82100-00-00
$98.99
You save $11.00
-10%
8
Yamaha Motors
Plus Lead Wire4BH-82115-00-00
Required: 1
WIRE, PLUS LEAD
Supersedes: 3TJ-82115-00-00
No longer availableSearch Nationwide Inventory
$44.99
You save $5.00
9
Yamaha Motors
WIRE, MINUS LEAD3TJ-82116-00
Required: 1
WIRE, MINUS LEAD
Price unavailable
10
Yamaha Motors
CLAMP90461-10093
Required: 1
CLAMP
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$1.13
You save $0.13
12
Yamaha Motors
STOP SWITCH ASSY3TJ-82530-01
Required: 1
STOP SWITCH ASSY
Price unavailable
13
Yamaha Motors
WIRE HARNESS ASSY4DX-82590-00
Required: 1
WIRE HARNESS ASSY
Price unavailable
13
Yamaha Motors
WIRE HARNESS ASSY4DX-82590-10
Required: 1
WIRE HARNESS ASSY
Price unavailable
-10%
$7.64
You save $0.85
-10%
15
Yamaha Motors
Fuse (20A-BL)2GV-82151-00-00
Required: 2
. FUSE
Supersedes: 2GH-82151-00-00
$5.39
You save $0.60
-10%
$4.23
You save $0.47
-10%
17
Yamaha Motors
CLAMP90464-30014-00
Required: 1
BAND, SWITCH CORD
Supersedes: J45-83936-00-00
$5.04
You save $0.56
-10%
$6.74
You save $0.75
-10%
19
Yamaha Motors
Clamp90464-15152-00
Required: 1
CLAMP
Supersedes: 90464-14117-00
$5.84
You save $0.65
-10%
20
Yamaha Motors
Rectifier/Regulator Assembly3TJ-81960-02-00
Required: 1
RECTIFIER & REGULATOR ASSY
Supersedes: 3TJ-81960-01-00
$166.49
You save $18.50
-15%
21
Yamaha Motors
Pan Head Screw97885-06030-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98501-06030-00
In stock
5+ in stock
$4.67
You save $0.82
-15%
22
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-15%
23
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.51
You save $0.44
24
Yamaha Motors
MAIN SWITCH STEERING LOCK3TJ-82501-00
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
24
Yamaha Motors
MAIN SWITCH STEERING LOCK4DX-82501-00
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
-10%
$9.44
You save $1.05
-10%
25
Yamaha Motors
Bolt (4FM)90109-06282-00
Required: 2
BOLT
Supersedes: 90109-06614-00
$4.94
You save $0.55
-10%
26
Yamaha Motors
Clamp90464-15195-00
Required: 2
CLAMP
Supersedes: 90464-13073-00
$3.97
You save $0.44
