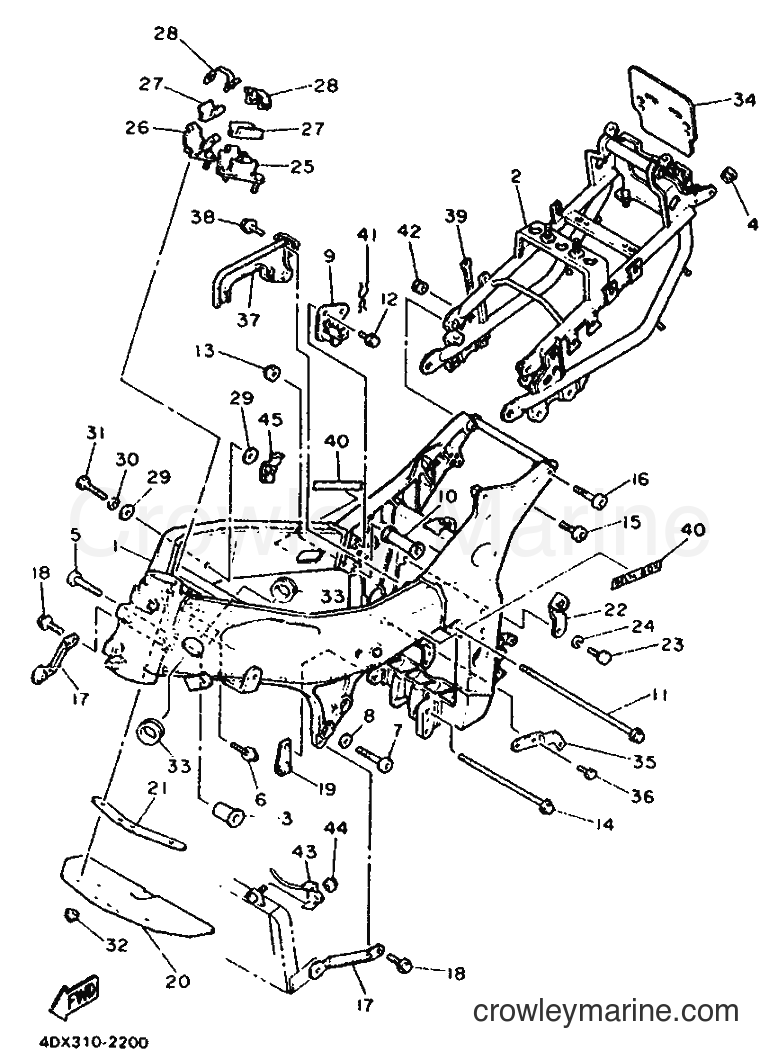

1992 Sport Bike FZR400RR - FZR400RR (4DX2) [999] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors FZR400RR (4DX2) [999] - FRAME
Change View:
FRAME COMP.
1
Yamaha Motors
FRAME COMP.4DX-21110-00-P0
Required: 1
FRAME COMP.
Price unavailable
REAR FRAME COMP.
2
Yamaha Motors
REAR FRAME COMP.4DX-21190-00
Required: 1
REAR FRAME COMP.
Price unavailable
COLLAR
3
Yamaha Motors
COLLAR90387-111X8
Required: 2
COLLAR
Price unavailable
-10%
GROMMET, WATER TUBE (UPPER)
4
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-14100-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
BOLT, HEXAGON SOCKET HEAD
5
Yamaha Motors
BOLT, HEXAGON SOCKET HEAD90110-10189
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
BOLT, HEXAGON SOCKET HEAD
7
Yamaha Motors
BOLT, HEXAGON SOCKET HEAD90110-10188
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
STAY, ENGINE 2
9
Yamaha Motors
STAY, ENGINE 23TJ-21315-00
Required: 1
STAY, ENGINE 2
Price unavailable
BOLT, FLANGE
11
Yamaha Motors
BOLT, FLANGE95811-10265
Required: 1
BOLT, FLANGE
Price unavailable
-10%
Washer Based Bolt
14
Yamaha Motors
Washer Based Bolt90105-10063-00
Required: 1
BOLT, WASHER BASED
Cross Ship
Leaves in 2-5 days
$12.49
$11.24
You save $1.25
More details
-10%
BOLT
15
Yamaha Motors
BOLT91317-08018-00
Required: 2
BOLT
Supersedes: 91312-08018-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
BRACKET, RADIATOR
17
Yamaha Motors
BRACKET, RADIATOR3TJ-2142K-00
Required: 2
BRACKET, RADIATOR
Price unavailable
STAY, MUFFLER 2
19
Yamaha Motors
STAY, MUFFLER 23TJ-21446-00
Required: 1
STAY, MUFFLER 2
Price unavailable
GUIDE, AIR
20
Yamaha Motors
GUIDE, AIR3TJ-2137Y-00
Required: 1
GUIDE, AIR
Price unavailable
STAY 1
21
Yamaha Motors
STAY 13TJ-2137F-00
Required: 1
STAY 1
Price unavailable
BRACKET
22
Yamaha Motors
BRACKET3TJ-21249-00
Required: 1
BRACKET
Price unavailable
-10%
Spring Washer
24
Yamaha Motors
Spring Washer92907-08100-00
Required: 1
WASHER, SPRING
Supersedes: 92902-08100-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
BRACKET, 1
25
Yamaha Motors
BRACKET, 13TJ-2138K-00
Required: 1
BRACKET, 1
Price unavailable
BRACKET 2
26
Yamaha Motors
BRACKET 23TJ-2138L-00
Required: 1
BRACKET 2
Price unavailable
-10%
Battery Band
28
Yamaha Motors
Battery Band3TJ-82131-00-00
Required: 2
BAND, BATTERY
Cross Ship
Leaves in 2-5 days
$24.99
$22.49
You save $2.50
More details
DAMPER
29
Yamaha Motors
DAMPER3TJ-2139X-00
Required: 2
DAMPER
Price unavailable
-10%
Plain Washer
30
Yamaha Motors
Plain Washer90201-06090-00
Required: 1
WAHER,PLATE
Supersedes: 90201-060L5-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
BOLT
31
Yamaha Motors
BOLT97001-06050
Required: 1
BOLT
Price unavailable
NUT
32
Yamaha Motors
NUT95617-06100-00
Required: 4
NUT,U
Supersedes: 95601-06100-00
Cross Ship
Leaves in 2-5 days
$3.60
More details
FLAP
34
Yamaha Motors
FLAP3EN-21621-50
Required: 1
FLAP
Price unavailable
HOOK,SPRING
35
Yamaha Motors
HOOK,SPRING3TJ-21452-00
Required: 1
HOOK,SPRING
Price unavailable
-10%
Bolt
36
Yamaha Motors
Bolt97017-06010-00
Required: 2
BOLT
Supersedes: 97011-06010-00
Cross Ship
Leaves in 2-5 days
$4.05
$3.65
You save $0.40
More details
BRAKET
37
Yamaha Motors
BRAKET3TJ-2134V-00
Required: 1
BRAKET
Price unavailable
-10%
Clamp
39
Yamaha Motors
Clamp90464-15195-00
Required: 5
CLAMP
Supersedes: 90464-13073-00
Cross Ship
Leaves in 2-5 days
$4.41
$3.97
You save $0.44
More details
CLAMP
41
Yamaha Motors
CLAMP90464-30150
Required: 1
CLAMP
Price unavailable
-10%
GROMMET, WATER TUBE (UPPER)
42
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-14229-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
GUIDE,CABLE 2
43
Yamaha Motors
GUIDE,CABLE 23TJ-26132-00
Required: 1
GUIDE,CABLE 2
Price unavailable
-10%
Flange Nut
44
Yamaha Motors
Flange Nut95707-06500-00
Required: 1
NUT,FLANGE
Supersedes: 95706-06500-00
Cross Ship
Leaves in 2-5 days
$1.00
$0.90
You save $0.10
More details
CLAMP,WIRE HARNESS 1
45
Yamaha Motors
CLAMP,WIRE HARNESS 13TJ-21335-00
Required: 1
CLAMP,WIRE HARNESS 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
