1992 Sport Bike FZR400RR - FZR400RR (4DX2) [999] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

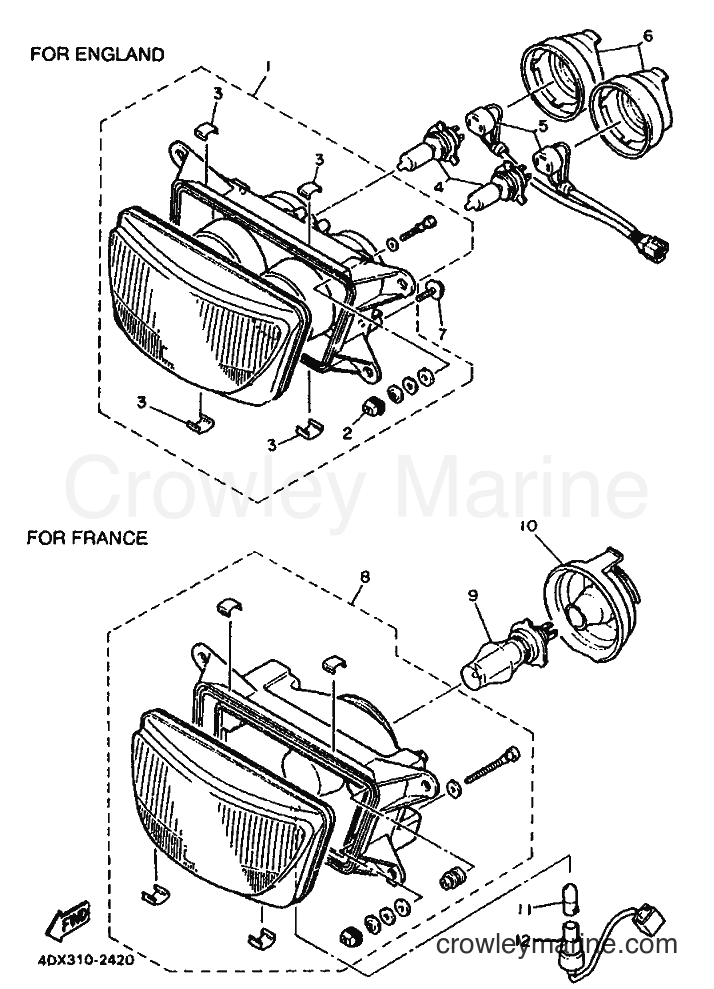

Yamaha Motors FZR400RR (4DX2) [999] - HEADLIGHT

Change View:

Yamaha Motors

HEADLIGHT UNIT ASSY3TJ-84310-00

Required: 1

HEADLIGHT UNIT ASSY

Price unavailable

Yamaha Motors

. NUT, ADJUSTING3TJ-84334-00

Required: 4

. NUT, ADJUSTING

Price unavailable

-10%

Yamaha Motors

SPRING PLATE3MA-8413H-00-00

Required: 4

. PLATE, SPRING

No longer availableSearch Nationwide Inventory

~~$6.49~~

$5.84

You save $0.65

More details

Yamaha Motors

BULB, HEADLIGHT3TJ-84314-00

Required: 2

BULB, HEADLIGHT

Price unavailable

Yamaha Motors

SOCKET3TJ-84112-00

Required: 2

SOCKET

Price unavailable

Yamaha Motors

COVER, SOCKET3TJ-84397-00

Required: 2

COVER, SOCKET

Price unavailable

Yamaha Motors

SCREW3TJ-84526-00

Required: 1

SCREW

Price unavailable

Yamaha Motors

LENS ASSY3HE-84320-40

Required: 1

LENS ASSY

Price unavailable

Yamaha Motors

BULB, HEADLIGHT2L2-84314-20

Required: 1

BULB, HEADLIGHT

Price unavailable

-10%

Yamaha Motors

Socket Cover36Y-84397-00-00

Required: 1

COVER, SOCKET

~~$26.99~~

$24.29

You save $2.70

More details

Yamaha Motors

BULB4E2-84347-00

Required: 1

BULB

Price unavailable

Yamaha Motors

HOLDER, SOCKET3HE-84312-40

Required: 1

HOLDER, SOCKET

Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
