1992 Sport Bike TZR125 - TZR125 (4DL1) [999] STEERING HANDLE & CABLE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

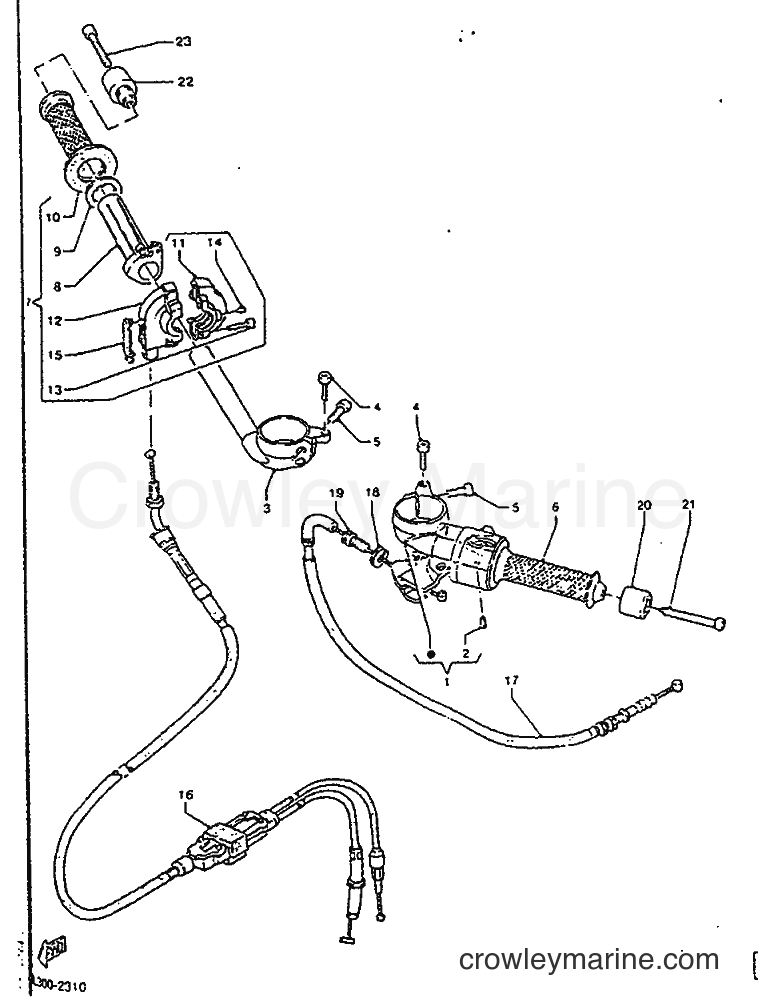

Yamaha Motors TZR125 (4DL1) [999] - STEERING HANDLE & CABLE
Change View:
HANDLEBAR (LEFT)
1
Yamaha Motors
HANDLEBAR (LEFT)4DL-F6121-10
Required: 1
HANDLEBAR (LEFT)
Price unavailable
. PIN, SPRING
2
Yamaha Motors
. PIN, SPRING91600-50020
Required: 1
. PIN, SPRING
Price unavailable
HANDLEBAR (RIGHT)
3
Yamaha Motors
HANDLEBAR (RIGHT)4DL-F6122-10
Required: 1
HANDLEBAR (RIGHT)
Price unavailable
-10%
BOLT (3DM)
4
Yamaha Motors
BOLT (3DM)91314-06025-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-06022-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Bolt (3JB)
5
Yamaha Motors
Bolt (3JB)91314-06020-00
Required: 4
BOLT
Supersedes: 91311-06020-00
Cross Ship
Leaves in 2-5 days
$2.65
$2.39
You save $0.27
More details
GRIP
6
Yamaha Motors
GRIP4DL-F6241-00
Required: 1
GRIP
Price unavailable
GRIP ASSY
7
Yamaha Motors
GRIP ASSY4DL-F6240-00
Required: 1
GRIP ASSY
Price unavailable
. TUBE, THROTTLE GUIDE
8
Yamaha Motors
. TUBE, THROTTLE GUIDE4DL-F6243-00
Required: 1
. TUBE, THROTTLE GUIDE
Price unavailable
. RING, LEAF
9
Yamaha Motors
. RING, LEAF4DL-F6249-00
Required: 1
. RING, LEAF
Price unavailable
. GRIP (RIGHT)
10
Yamaha Motors
. GRIP (RIGHT)4DL-F6242-00
Required: 1
. GRIP (RIGHT)
Price unavailable
. CAP, GRIP LOWER
11
Yamaha Motors
. CAP, GRIP LOWER4DL-F6282-00
Required: 1
. CAP, GRIP LOWER
Price unavailable
. CAP, GRIP UPPER
12
Yamaha Motors
. CAP, GRIP UPPER4DL-F6281-00
Required: 1
. CAP, GRIP UPPER
Price unavailable
-10%
Hexagon Socket Bolt
13
Yamaha Motors
Hexagon Socket Bolt90110-05018-00
Required: 2
. BOLT, HEXAGON SOCKET HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
. STOPPER
14
Yamaha Motors
. STOPPER4DL-F629E-00
Required: 1
. STOPPER
Price unavailable
. CAP, WIRE
15
Yamaha Motors
. CAP, WIRE4DL-F628H-00
Required: 1
. CAP, WIRE
Price unavailable
THROTTLE CABLE ASSY
16
Yamaha Motors
THROTTLE CABLE ASSY4DL-F6302-00
Required: 1
THROTTLE CABLE ASSY
Price unavailable
CABLE, CLUTCH
17
Yamaha Motors
CABLE, CLUTCH4DL-F6335-00
Required: 1
CABLE, CLUTCH
Price unavailable
-10%
Nut
18
Yamaha Motors
Nut90179-08030-00
Required: 1
NUT
Supersedes: 90179-08148-00
Cross Ship
Leaves in 2-5 days
$5.99
$5.39
You save $0.60
More details
-10%
BOLT
19
Yamaha Motors
BOLT90123-08002-00
Required: 1
BOLT
Supersedes: 90123-08046-00
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
. END, GRIP
20
Yamaha Motors
. END, GRIP4DL-F6246-00
Required: 1
. END, GRIP
Price unavailable
. END, GRIP
22
Yamaha Motors
. END, GRIP4DL-F6246-00
Required: 1
. END, GRIP
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
