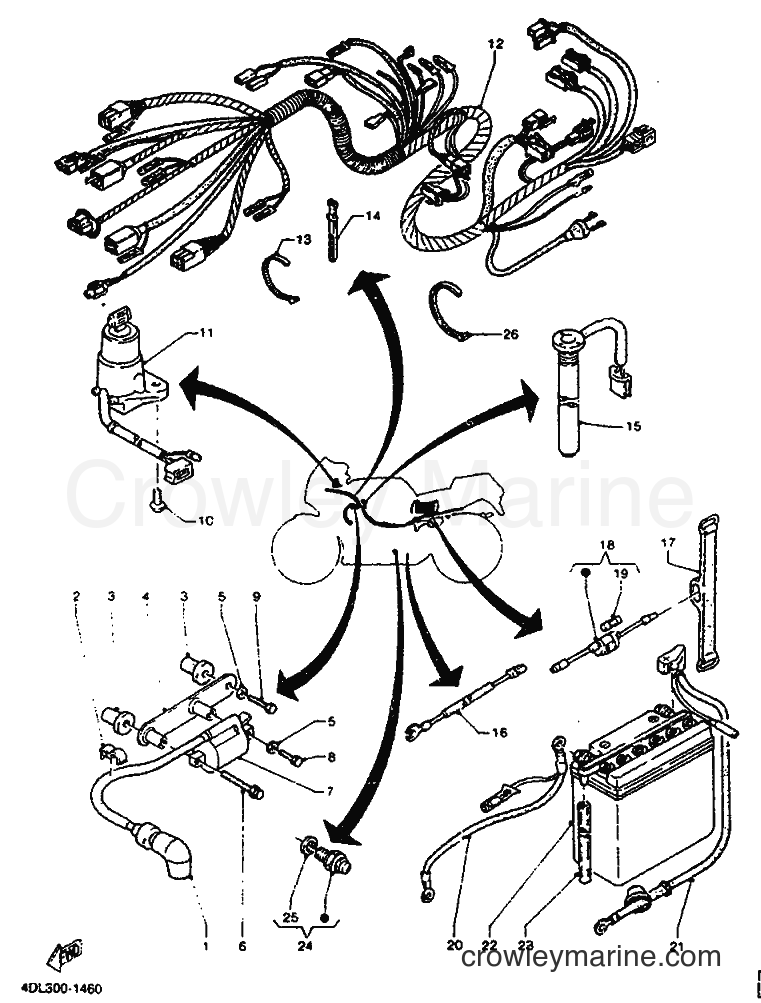

1992 Sport Bike TZR125 - TZR125 (4DL2) [999] ELECTRICAL 1 diagram
![Yamaha Motors TZR125 (4DL2) [999] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/2Lhx4BPs.png)
-10%
1
Yamaha Motors
4PE-82370-10-004PE-82370-00-00
Required: 1
PLUG CAP ASSY
Supersedes: 1M1-82370-21-00
No longer availableSearch Nationwide Inventory
$29.69
You save $3.30
-10%
$7.64
You save $0.85
-10%
$3.14
You save $0.35
4
Yamaha Motors
HOLDER, COIL FITTING4DL-H2312-00
Required: 1
HOLDER, COIL FITTING
Price unavailable
-15%
5
Yamaha Motors
Plate Washer92990-06600-00
Required: 3
WASHER, PLATE
Supersedes: 92902-06600-00
In stock
5+ in stock
$2.51
You save $0.44
6
Yamaha Motors
BOLT97001-06050
Required: 1
BOLT
Price unavailable
-10%
7
Yamaha Motors
Ignition Coil Assy4RP-82310-25-00
Required: 1
IGNITION COIL ASSY
Supersedes: 2JN-82310-M0-00
$53.99
You save $6.00
-10%
8
Yamaha Motors
BOLT97011-06020-00
Required: 1
BOLT
Supersedes: 97001-06020-00
No longer availableSearch Nationwide Inventory
$0.85
You save $0.09
-10%
No longer availableSearch Nationwide Inventory
$0.85
You save $0.09
-10%
$9.44
You save $1.05
11
Yamaha Motors
MAIN SWITCH STEERING LOCK3LY-82501-00
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
12
Yamaha Motors
WIRE HARNESS ASSY4DL-H2590-00
Required: 1
WIRE HARNESS ASSY
Price unavailable
13
Yamaha Motors
BAND2AJ-F3192-00
Required: 1
BAND
Price unavailable
-10%
14
Yamaha Motors
CLAMP90464-30014-00
Required: 1
BAND, SWITCH CORD
Supersedes: 437-83936-01-00
$5.04
You save $0.56
15
Yamaha Motors
OIL LEVEL GAUGE ASSY3MA-85720-10
Required: 1
OIL LEVEL GAUGE ASSY
Price unavailable
16
Yamaha Motors
WIRE, LEAD3SH-H2541-00
Required: 1
WIRE, LEAD
Price unavailable
17
Yamaha Motors
BAND, BATTERY18U-82131-00
Required: 1
BAND, BATTERY
Price unavailable
-10%
18
Yamaha Motors
FUSE HOLDER ASSY55K-82150-02-00
Required: 1
FUSE HOLDER ASSY
Supersedes: 116-82150-01-00
$13.94
You save $1.55
-10%
$16.19
You save $1.80
20
Yamaha Motors
WIRE, MINUS LEAD4DL-H2116-00
Required: 1
WIRE, MINUS LEAD
Price unavailable
21
Yamaha Motors
WIRE, PLUS LEAD3MB-82115-00
Required: 1
WIRE, PLUS LEAD
Price unavailable
22
Yamaha Motors
BATTERY ASSY3SH-H2110-00
Required: 1
BATTERY ASSY
Price unavailable
-10%
23
Yamaha Motors
Hose (3GG)90445-084J0-00
Required: 1
HOSE
Supersedes: 90445-087E1-00
$18.89
You save $2.10
24
Yamaha Motors
NEUTRAL SWITCH ASSY3NC-H2540-00
Required: 1
NEUTRAL SWITCH ASSY
Price unavailable
-10%
25
Yamaha Motors
Tank Cap Gasket296-82543-00-00
Required: 1
GASKET
Supersedes: 341-82543-00-00
$5.39
You save $0.60
26
Yamaha Motors
CLAMP437-10403-BL
Required: 1
CLAMP
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
