1992 Sport Bike TZR125 - TZR125 (4DL2) [999] FRONT WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

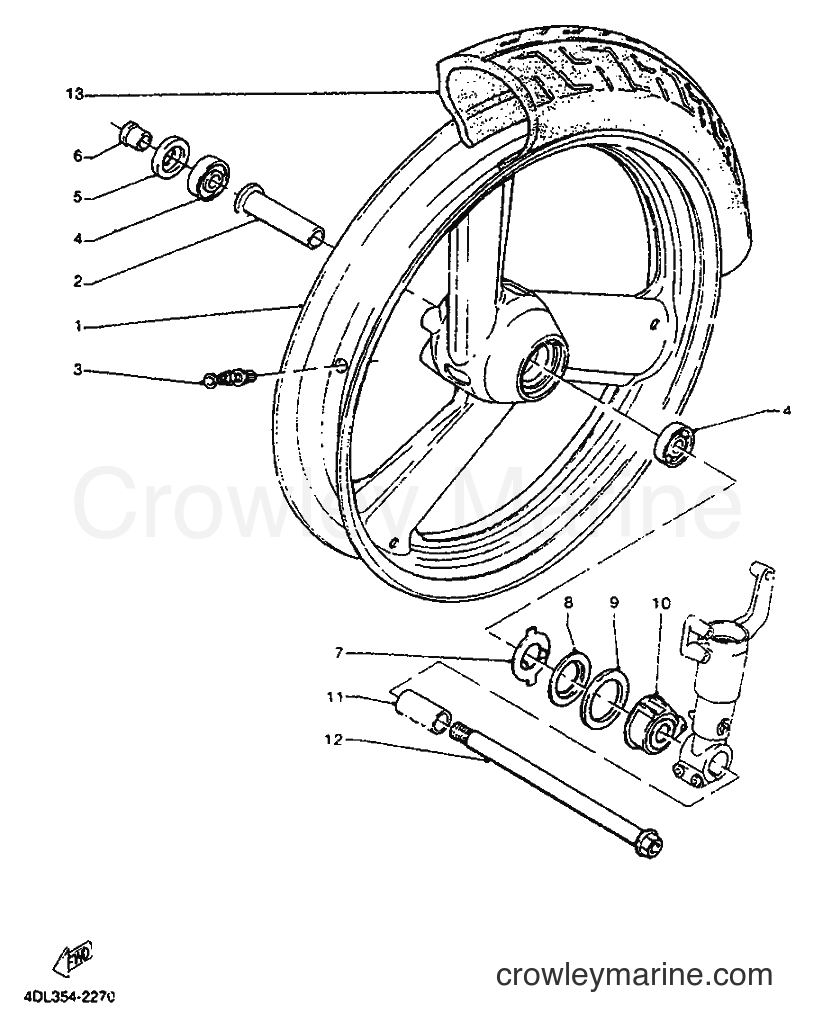

Yamaha Motors TZR125 (4DL2) [999] - FRONT WHEEL
Change View:
CAST WHEEL, FRONT
1
Yamaha Motors
CAST WHEEL, FRONT4DL-F5168-00-33
Required: 1
CAST WHEEL, FRONT
Price unavailable
SPACER
2
Yamaha Motors
SPACER90560-18001
Required: 1
SPACER
Price unavailable
-10%
Rim Valve
3
Yamaha Motors
Rim Valve93900-00031-00
Required: 1
VALVE, RIM
Supersedes: 93900-00001-00
Cross Ship
Leaves in 2-5 days
$18.49
$16.64
You save $1.85
More details
-10%
BEARING
4
Yamaha Motors
BEARING93306-20310-00
Required: 2
BEARING
Supersedes: 93306-20309-00
Cross Ship
Leaves in 2-5 days
$41.99
$37.79
You save $4.20
More details
OIL SEAL
5
Yamaha Motors
OIL SEAL93102-23552
Required: 1
OIL SEAL
Price unavailable
COLLAR
6
Yamaha Motors
COLLAR90387-17001
Required: 1
COLLAR
Price unavailable
-10%
Meter Clutch
7
Yamaha Motors
Meter Clutch341-25149-00-00
Required: 1
CLUTCH, METER
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-10%
CLUTCH RETAINER
8
Yamaha Motors
CLUTCH RETAINER341-25846-00-00
Required: 1
RETAINER, CLUTCH
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
SDD-TYPE OIL SEAL
9
Yamaha Motors
SDD-TYPE OIL SEAL93105-45017-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$16.49
$14.84
You save $1.65
More details
-10%
Gear Unit Assembly
10
Yamaha Motors
Gear Unit Assembly4HM-25190-20-00
Required: 1
GEAR UNIT ASSY
Supersedes: 3MA-25190-00-00
Cross Ship
Leaves in 2-5 days
$111.99
$100.79
You save $11.20
More details
COLLAR
11
Yamaha Motors
COLLAR90387-25181
Required: 1
COLLAR
Price unavailable
FRONT TIRE SET
13
Yamaha Motors
FRONT TIRE SET4DL-F5108-00
Required: 1
FRONT TIRE SET
Price unavailable
FRONT TIRE SET
13
Yamaha Motors
FRONT TIRE SET4DL-F5108-10
Required: 1
FRONT TIRE SET
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
