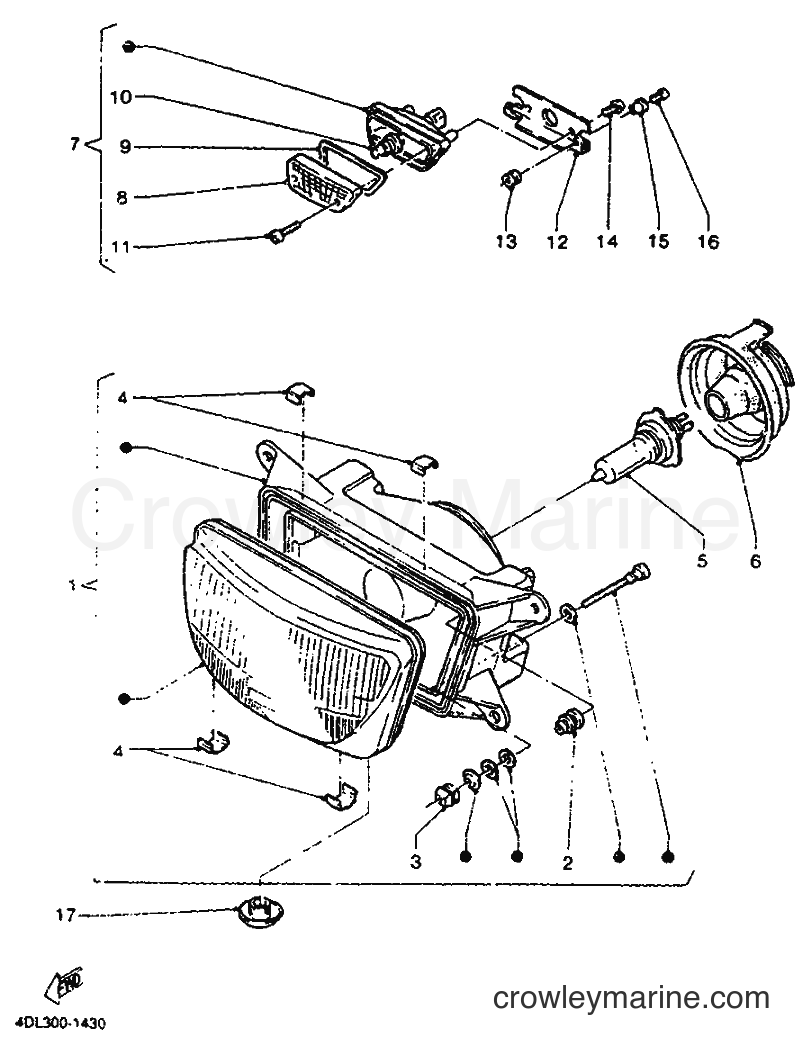

1992 Sport Bike TZR125 - TZR125 (4DL2) [999] HEADLIGHT diagram
![Yamaha Motors TZR125 (4DL2) [999] - HEADLIGHT](https://cdn.crowleymarine.com/yamaha/lENW42rq.png)
1
Yamaha Motors
LENS ASSY3HE-84320-40
Required: 1
LENS ASSY
Price unavailable
-10%
2
Yamaha Motors
Neutral Lock Holder3AJ-8431U-00-00
Required: 1
. HOLDER
Supersedes: 51L-8431U-00-00
$9.89
You save $1.10
-10%
3
Yamaha Motors
Adjusting Nut51L-84334-00-00
Required: 2
. NUT, ADJUSTING
$8.99
You save $1.00
-10%
4
Yamaha Motors
SPRING PLATE3MA-8413H-00-00
Required: 4
. PLATE, SPRING
No longer availableSearch Nationwide Inventory
$5.84
You save $0.65
5
Yamaha Motors
BULB, HEADLIGHT2L2-84314-20
Required: 1
BULB, HEADLIGHT
Price unavailable
-10%
6
Yamaha Motors
Socket Cover36Y-84397-00-00
Required: 1
COVER, SOCKET
$24.29
You save $2.70
-10%
7
Yamaha Motors
Pilot Light Assembly 13GM-84301-01-00
Required: 1
PILOT LIGHT ASSY 1
Supersedes: 3GM-84301-00-00
$45.89
You save $5.10
-10%
No longer availableSearch Nationwide Inventory
$4.46
You save $0.50
-10%
9
Yamaha Motors
Lens Gasket3GM-84322-00-00
Required: 1
. GASKET, LENS
No longer availableSearch Nationwide Inventory
$2.83
You save $0.31
-10%
10
Yamaha Motors
BULB (12V-5W)4SV-84347-00-00
Required: 1
. BULB (12V-5W)
Supersedes: 2JE-84744-00-00
$8.54
You save $0.95
-10%
11
Yamaha Motors
WASHER3GM-84192-00-00
Required: 2
. SCREW, SPECIAL
No longer availableSearch Nationwide Inventory
$1.89
You save $0.21
-10%
No longer availableSearch Nationwide Inventory
$11.69
You save $1.30
-10%
$8.54
You save $0.95
-10%
14
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TAPPING
Supersedes: 90167-05041-00
$4.17
You save $0.46
-10%
$7.64
You save $0.85
16
Yamaha Motors
SCREW, TAPPING97786-04020
Required: 2
SCREW, TAPPING
Price unavailable
17
Yamaha Motors
COVER, SOCKET4DL-H4397-00
Required: 1
COVER, SOCKET
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
