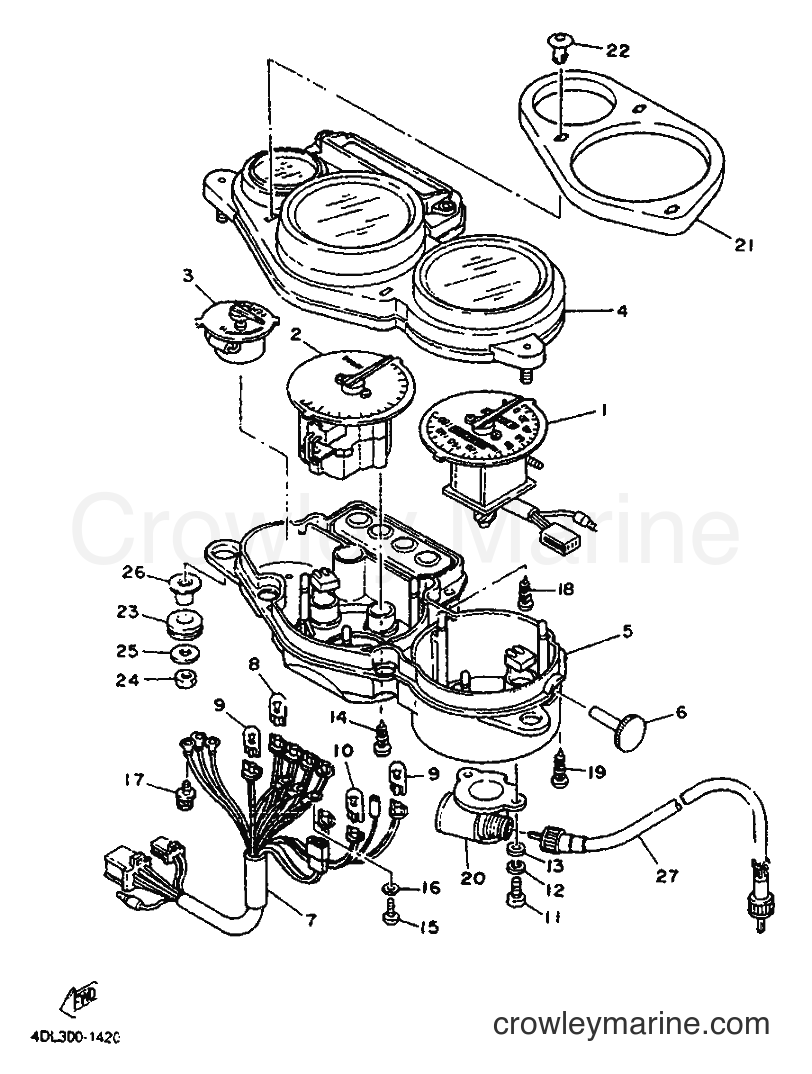

1992 Sport Bike TZR125 - TZR125 (4DL2) [999] METER diagram
![Yamaha Motors TZR125 (4DL2) [999] - METER](https://cdn.crowleymarine.com/yamaha/cDmPTdyl.png)
1
Yamaha Motors
SPEEDOMETER ASSY4DL-83570-00
Required: 1
SPEEDOMETER ASSY
Price unavailable
2
Yamaha Motors
TACHOMETER ASSY4DL-83540-00
Required: 1
TACHOMETER ASSY
Price unavailable
3
Yamaha Motors
WATER TEMPERATURE ASSY3MA-83590-00
Required: 1
WATER TEMPERATURE ASSY
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$128.69
You save $14.30
5
Yamaha Motors
CASE, UNDER3LG-8353H-00
Required: 1
CASE, UNDER
Price unavailable
-10%
6
Yamaha Motors
Trip Meter Knob2GH-83578-00-00
Required: 1
KNOB, TRIP METER
No longer availableSearch Nationwide Inventory
$13.49
You save $1.50
7
Yamaha Motors
SOCKET CORD ASSY4DL-83509-00
Required: 1
SOCKET CORD ASSY
Price unavailable
-10%
$5.39
You save $0.60
-10%
$7.64
You save $0.85
-10%
$8.54
You save $0.95
11
Yamaha Motors
BOLT, FLANGE95880-04010
Required: 4
BOLT, FLANGE
Price unavailable
12
Yamaha Motors
WASHER92903-04100-00
Required: 2
WASHER, SPRING
Supersedes: 92902-04100-00
No longer availableSearch Nationwide Inventory
$1.43
-50%
13
Yamaha Motors
Plate Washer92990-04600-00
Required: 4
WASHER, PLATE
Supersedes: 92902-04600-00
In stock
Only 1 remaining
$0.49
You save $0.49
-10%
14
Yamaha Motors
Tapping Screw90167-04057-00
Required: 2
SCREW, TAPPING
$1.98
You save $0.22
-10%
15
Yamaha Motors
Pan Head Screw98580-03010-00
Required: 3
SCREW, PAN HEAD
$8.54
You save $0.95
-10%
16
Yamaha Motors
Spring Washer92990-03100-00
Required: 3
WASHER, SPRING
$8.54
You save $0.95
-10%
17
Yamaha Motors
Screw with Washer90159-03102-00
Required: 3
SCREW, WITH WASHER
$2.07
You save $0.23
-10%
18
Yamaha Motors
Tapping Screw90164-04008-00
Required: 4
SCREW, TAPPING
$9.44
You save $1.05
-10%
19
Yamaha Motors
Tapping Screw90167-03058-00
Required: 1
SCREW, TAPPING
No longer availableSearch Nationwide Inventory
$1.22
You save $0.14
-10%
No longer availableSearch Nationwide Inventory
$49.49
You save $5.50
-10%
No longer availableSearch Nationwide Inventory
$49.49
You save $5.50
-10%
No longer availableSearch Nationwide Inventory
$2.69
You save $0.30
-10%
$8.54
You save $0.95
-10%
24
Yamaha Motors
Nut95316-06600-00
Required: 2
NUT
Supersedes: 95306-06600-00
No longer availableSearch Nationwide Inventory
$1.30
You save $0.15
-10%
25
Yamaha Motors
Plate Washer90201-06380-00
Required: 2
WASHER, PLATE
$0.59
You save $0.06
26
Yamaha Motors
COLLAR90387-07001
Required: 2
COLLAR
Price unavailable
27
Yamaha Motors
SPEEDOMETER CABLE ASSY4DL-H3550-00
Required: 1
SPEEDOMETER CABLE ASSY
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
