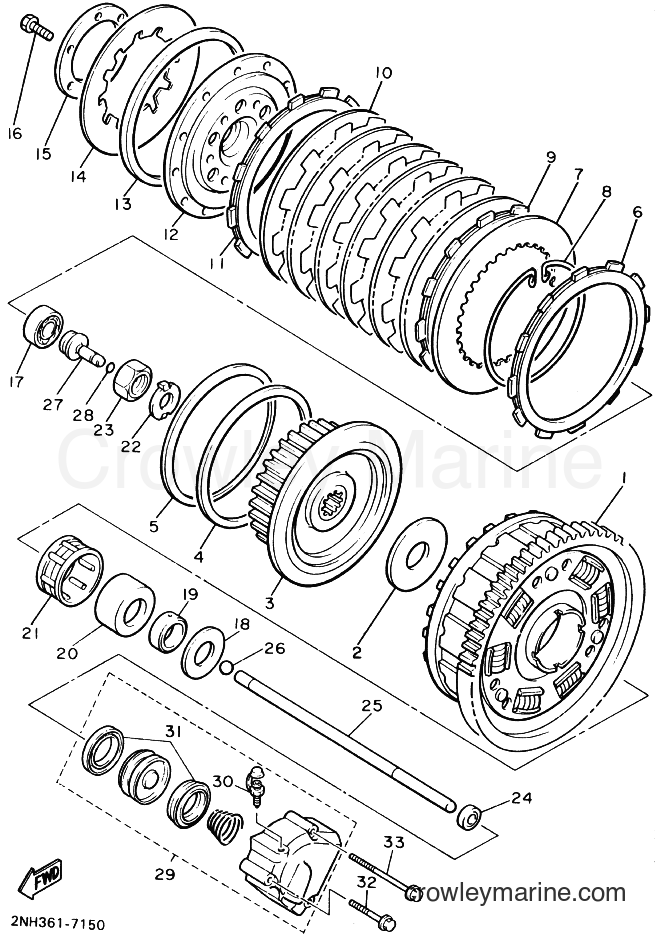

1993 Sport Bike FJ1200 - FJ1200 (4AH9) [010] CLUTCH diagram
![Yamaha Motors FJ1200 (4AH9) [010] - CLUTCH](https://cdn.crowleymarine.com/yamaha/xNAFbc5B.png)
-10%
1
Yamaha Motors
PRIMARY DRIVEN GEAR5EA-16150-00-00
Required: 1
PRIMARY DRIVEN GEAR COMP.
Supersedes: 1TX-16150-00-00
No longer availableSearch Nationwide Inventory
$421.19
You save $46.80
-10%
2
Yamaha Motors
Thrust Plate36Y-16154-00-00
Required: 1
PLATE, thrust 1
No longer availableSearch Nationwide Inventory
$45.89
You save $5.10
-10%
No longer availableSearch Nationwide Inventory
$134.99
You save $15.00
-10%
$28.79
You save $3.20
-10%
5
Yamaha Motors
Clutch Boss Spring36Y-16383-00-00
Required: 1
SPRING, clutch boss
$67.49
You save $7.50
-10%
6
Yamaha Motors
FRICTION PLATE 24XV-16331-00-00
Required: 1
PLATE, friction 2
Supersedes: 36Y-16331-00-00
$24.29
You save $2.70
-10%
7
Yamaha Motors
CLUTCH PLATE 22H7-16325-00-00
Required: 1
PLATE, clutch 2
No longer availableSearch Nationwide Inventory
$13.94
You save $1.55
-10%
8
Yamaha Motors
Clutch Boss Ring2H7-16385-00-00
Required: 1
RING, clutch boss
$27.89
You save $3.10
-10%
9
Yamaha Motors
Friction Plate341-16321-13-00
Required: 6
PLATE, friction
$23.39
You save $2.60
-10%
10
Yamaha Motors
CLUTCH PLATE 22H7-16325-00-00
Required: 6
PLATE, clutch 2
No longer availableSearch Nationwide Inventory
$13.94
You save $1.55
-10%
11
Yamaha Motors
FRICTION PLATE 24XV-16331-00-00
Required: 1
PLATE, friction 2
Supersedes: 36Y-16331-00-00
$24.29
You save $2.70
-10%
12
Yamaha Motors
PRESSURE PLATE 136Y-16351-00-00
Required: 1
PLATE, pressure 1
$42.29
You save $4.70
-10%
13
Yamaha Motors
Housing Spring36Y-16335-00-00
Required: 1
HOUSING, spring
$35.99
You save $4.00
-10%
14
Yamaha Motors
Clutch Spring1TX-16334-00-00
Required: 1
SPRING, clutch 2
$117.89
You save $13.10
-10%
15
Yamaha Motors
Pressure Plate1TX-16352-00-00
Required: 1
PLATE, pressure 2
$37.79
You save $4.20
-10%
16
Yamaha Motors
BOLT97014-06016-00
Required: 6
BOLT
Supersedes: 97021-06016-00
No longer availableSearch Nationwide Inventory
$1.62
You save $0.18
-10%
17
Yamaha Motors
BEARING93306-00315-00
Required: 1
BEARING (B6003C4)
Supersedes: 93306-00304-00
$33.29
You save $3.70
-10%
18
Yamaha Motors
Plate Washer90201-286H8-00
Required: 1
WASHER, plate
No longer availableSearch Nationwide Inventory
$5.39
You save $0.60
-10%
No longer availableSearch Nationwide Inventory
$8.09
You save $0.90
-10%
$33.29
You save $3.70
-10%
21
Yamaha Motors
BEARING,CYL.#1093310-350M3-00
Required: 1
BEARING, cylindrical
$48.59
You save $5.40
-10%
$9.44
You save $1.05
-10%
$21.59
You save $2.40
-10%
$7.64
You save $0.85
-10%
No longer availableSearch Nationwide Inventory
$23.39
You save $2.60
-50%
In stock
Only 4 remaining
$4.75
You save $4.75
-10%
No longer availableSearch Nationwide Inventory
$25.19
You save $2.80
-15%
In stock
5+ in stock
$8.07
You save $1.42
-10%
29
Yamaha Motors
Push Lever Component36Y-16381-11-00
Required: 1
PUSH LEVER COMP.
Supersedes: 36Y-16381-10-00
$273.59
You save $30.40
-50%
30
Yamaha Motors
Bleed Screw Kit36Y-W0048-00-00
Required: 1
.BREED SCREW KIT
In stock
Only 1 remaining
$5.50
You save $5.50
-10%
31
Yamaha Motors
Push Lever Seal Kit26H-W0098-00-00
Required: 1
.PUSH LEVER SEAL KIT
$54.89
You save $6.10
-10%
32
Yamaha Motors
Small Flange Bolt95027-06040-00
Required: 1
BOLT, flange
Supersedes: 95026-06040-00
$3.19
You save $0.35
-10%
33
Yamaha Motors
Washer Based Bolt90105-06306-00
Required: 2
BOLT, washer based
No longer availableSearch Nationwide Inventory
$3.96
You save $0.44
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
