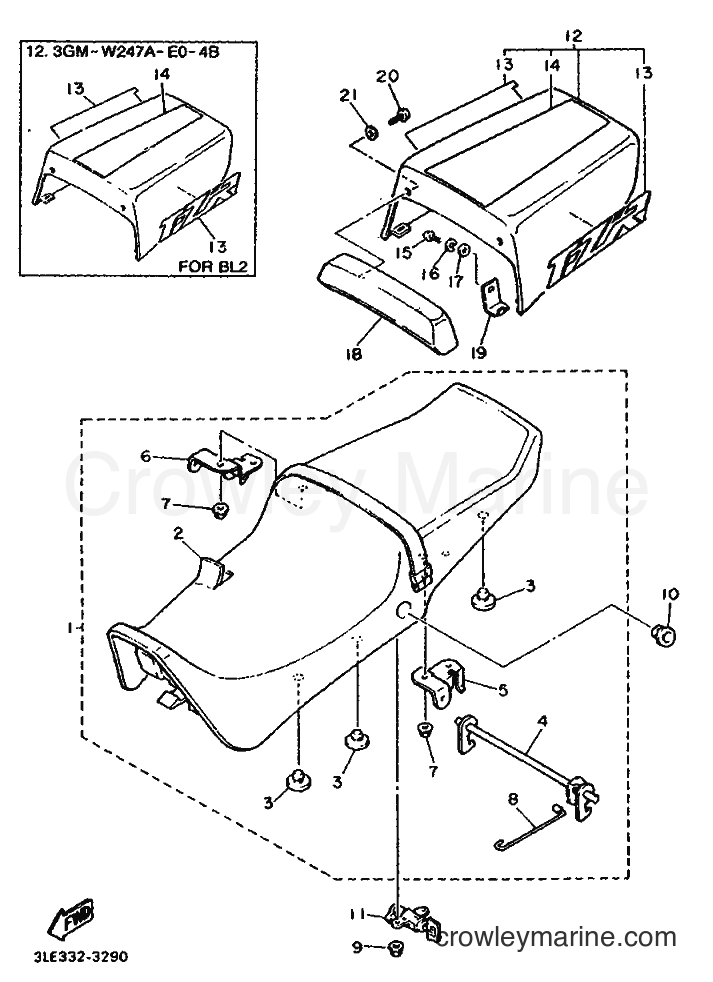

1993 Sport Bike FZR1000 - FZR1000 (3GMC) [999] SEAT diagram
![Yamaha Motors FZR1000 (3GMC) [999] - SEAT](https://cdn.crowleymarine.com/yamaha/DlUZGrCO.png)
-10%
1
Yamaha Motors
DOUBLE SEAT ASSEMBLY3GM-24730-50-00
Required: 1
DOUBLE SEAT ASSY
No longer availableSearch Nationwide Inventory
$553.55
You save $61.50
-10%
No longer availableSearch Nationwide Inventory
$152.99
You save $17.00
-10%
3
Yamaha Motors
Seat Pad2GH-24741-01-00
Required: 6
. PAD, SEAT
Supersedes: 2GH-24741-00-00
$2.97
You save $0.33
-10%
4
Yamaha Motors
Seat Lever3GM-24776-50-00
Required: 1
. LEVER, SEAT
No longer availableSearch Nationwide Inventory
$35.09
You save $3.90
-10%
5
Yamaha Motors
Seat Bracket3GM-24718-50-00
Required: 1
. BRACKET, SEAT
No longer availableSearch Nationwide Inventory
$11.24
You save $1.25
-10%
6
Yamaha Motors
Seat Bracket3GM-24728-50-00
Required: 1
. BRACKET, SEAT
No longer availableSearch Nationwide Inventory
$11.24
You save $1.25
-10%
7
Yamaha Motors
NUT WITH WASHER95701-06500-00
Required: 4
. NUT, WITH WASHER
No longer availableSearch Nationwide Inventory
$2.12
You save $0.23
-10%
8
Yamaha Motors
Connecting Rod1KT-2478F-00-00
Required: 1
. ROD, CONNECTING
No longer availableSearch Nationwide Inventory
$5.84
You save $0.65
-10%
9
Yamaha Motors
95707-05500-0095701-05500-00
Required: 2
NUT, WITH WASHER
No longer availableSearch Nationwide Inventory
$2.48
You save $0.27
-10%
No longer availableSearch Nationwide Inventory
$8.99
You save $1.00
-10%
11
Yamaha Motors
Seat Lock Assembly47X-24705-00-00
Required: 1
SEAT LOCK ASSY
Supersedes: 51X-24705-00-00
No longer availableSearch Nationwide Inventory
$79.19
You save $8.80
12
Yamaha Motors
COVER, SEAT3GM-W247A-E0-4B
Required: 1
COVER, SEAT
Price unavailable
12
Yamaha Motors
COVER, SEAT3GM-W247A-D0-GE
Required: 1
COVER, SEAT
Price unavailable
13
Yamaha Motors
. EMBLEM3LG-24786-20
Required: 2
. EMBLEM
Price unavailable
13
Yamaha Motors
. EMBLEM3LG-24786-30
Required: 2
. EMBLEM
Price unavailable
14
Yamaha Motors
. GRAPHIC, SEAT3LG-2478M-00
Required: 1
. GRAPHIC, SEAT
Price unavailable
14
Yamaha Motors
. GRAPHIC, SEAT3LG-2478M-30
Required: 1
. GRAPHIC, SEAT
Price unavailable
-10%
15
Yamaha Motors
Pan Head Screw98580-06010-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98501-06010-00
$8.54
You save $0.95
-15%
16
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-15%
17
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.51
You save $0.44
18
Yamaha Motors
BACK REST ASSY3GM-2840F-50
Required: 1
BACK REST ASSY
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$3.14
You save $0.35
-10%
20
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98502-06012-00
$3.69
You save $0.41
-15%
21
Yamaha Motors
Plain Washer92990-06200-00
Required: 2
WASHER, PLAIN
In stock
5+ in stock
$0.85
You save $0.15
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
