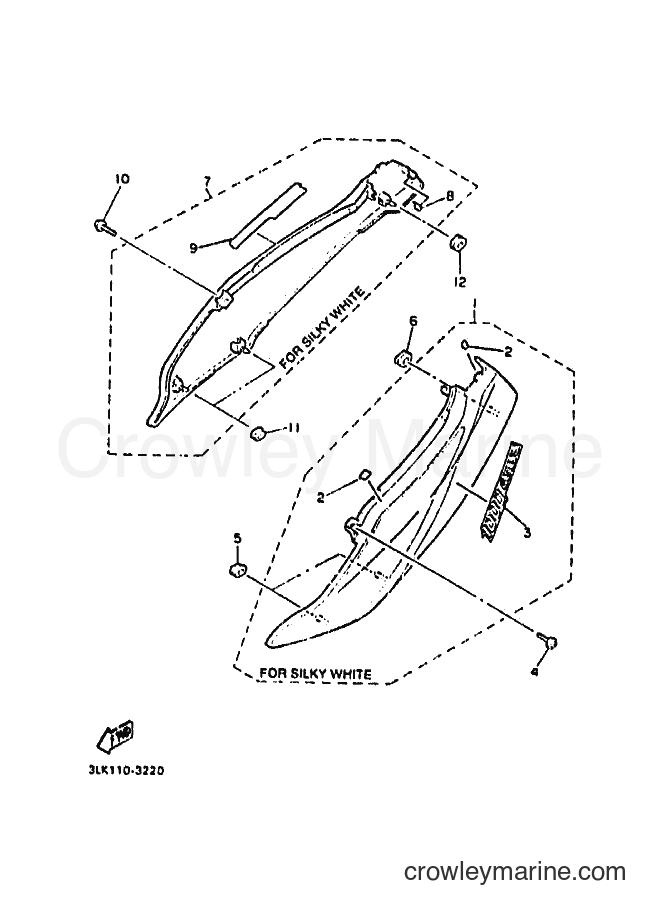

1993 Sport Bike FZR1000 - FZR1000 (3LKF) [010] SIDE COVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors FZR1000 (3LKF) [010] - SIDE COVER
Change View:
-10%
Screw with Washer
4
Yamaha Motors
Screw with Washer90159-06060-00
Required: 1
SCREW, with washer
Supersedes: 90159-06033-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Grommet
5
Yamaha Motors
Grommet90480-01401-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Screw with Washer
10
Yamaha Motors
Screw with Washer90159-06060-00
Required: 1
SCREW, with washer
Supersedes: 90159-06033-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Grommet
11
Yamaha Motors
Grommet90480-01401-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
