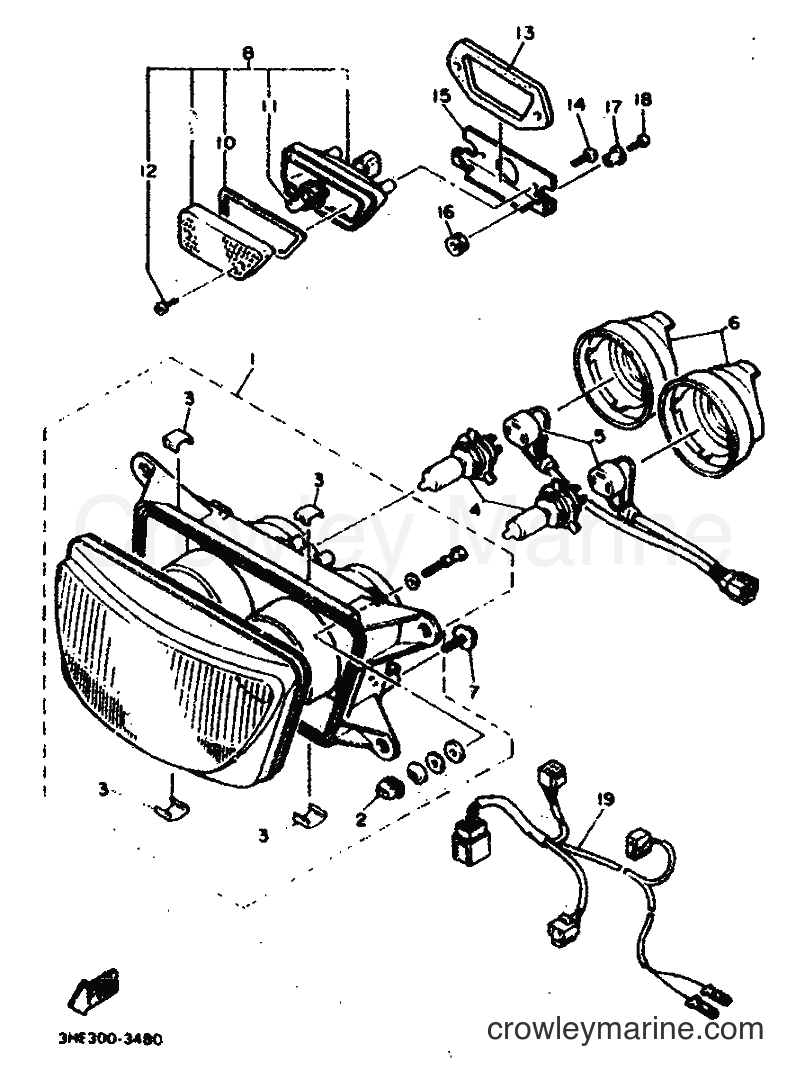

1993 Sport Bike FZR600 - FZR600 (3HEE) [999] ALTERNATE FOR HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors FZR600 (3HEE) [999] - ALTERNATE FOR HEADLIGHT
Change View:
HEADLIGHT UNIT ASSY
1
Yamaha Motors
HEADLIGHT UNIT ASSY3TJ-84310-00
Required: 1
HEADLIGHT UNIT ASSY
Price unavailable
. NUT, ADJUSTING
2
Yamaha Motors
. NUT, ADJUSTING3TJ-84334-00
Required: 4
. NUT, ADJUSTING
Price unavailable
BULB, HEADLIGHT
4
Yamaha Motors
BULB, HEADLIGHT3TJ-84314-00
Required: 2
BULB, HEADLIGHT
Price unavailable
SOCKET
5
Yamaha Motors
SOCKET3TJ-84112-00
Required: 2
SOCKET
Price unavailable
COVER, SOCKET
6
Yamaha Motors
COVER, SOCKET3TJ-84397-00
Required: 2
COVER, SOCKET
Price unavailable
SCREW
7
Yamaha Motors
SCREW3TJ-84526-00
Required: 2
SCREW
Price unavailable
-10%
Pilot Light Assembly 1
8
Yamaha Motors
Pilot Light Assembly 13GM-84301-01-00
Required: 1
PILOT LIGHT ASSY 1
Supersedes: 3GM-84301-00-00
Cross Ship
Leaves in 2-5 days
$50.99
$45.89
You save $5.10
More details
BODY, PILOT LIGHT
13
Yamaha Motors
BODY, PILOT LIGHT3GM-84357-50
Required: 1
BODY, PILOT LIGHT
Price unavailable
-10%
Truss Screw
14
Yamaha Motors
Truss Screw97707-50012-00
Required: 1
SCREW, TAPPING
Supersedes: 90167-05041-00
Cross Ship
Leaves in 2-5 days
$4.63
$4.17
You save $0.46
More details
-10%
GROMMET, WATER TUBE (UPPER)
16
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-10517-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
COLLAR
17
Yamaha Motors
COLLAR90387-05026-00
Required: 2
COLLAR
Supersedes: 90387-052U5-00
Cross Ship
Leaves in 2-5 days
$1.75
$1.57
You save $0.18
More details
SCREW, PAN HEAD
18
Yamaha Motors
SCREW, PAN HEAD90157-05037
Required: 2
SCREW, PAN HEAD
Price unavailable
CORD, HEADLIGHT
19
Yamaha Motors
CORD, HEADLIGHT3HE-84359-C0
Required: 1
CORD, HEADLIGHT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
