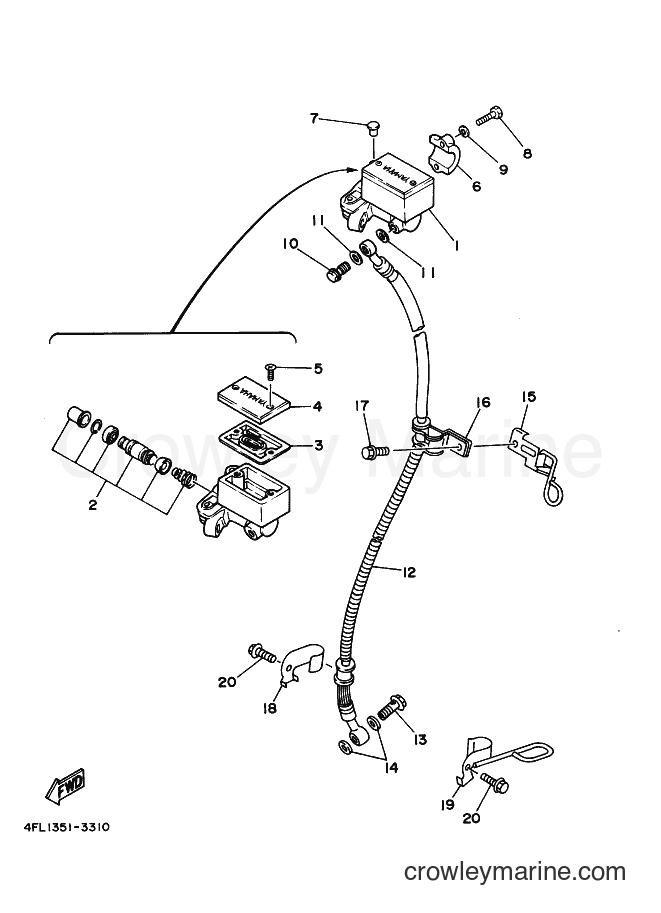

1993 Sport Bike TZR125 - TZR125 (4FL1) [999] FRONT MASTER CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors TZR125 (4FL1) [999] - FRONT MASTER CYLINDER
Change View:
-10%
Master Cylinder Sub Assembly
1
Yamaha Motors
Master Cylinder Sub Assembly3TB-25870-00-00
Required: 1
MASTER CYLINDER SUB ASSY
Supersedes: 2RJ-25870-00-00
Cross Ship
Leaves in 2-5 days
$290.99
$261.89
You save $29.10
More details
-10%
Master Cylinder Kit
2
Yamaha Motors
Master Cylinder Kit23L-W0041-00-00
Required: 1
. CYLINDER KIT, MASTER
Cross Ship
Leaves in 2-5 days
$133.99
$120.59
You save $13.40
More details
-10%
DIAPHRAGM RESERVOR
3
Yamaha Motors
DIAPHRAGM RESERVOR4L0-25854-00-00
Required: 1
. DIAPHRAGM, RESERVOIR
Cross Ship
Leaves in 2-5 days
$30.99
$27.89
You save $3.10
More details
-10%
Reservoir Cap
4
Yamaha Motors
Reservoir Cap4H7-25852-00-00
Required: 1
. CAP, RESERVOIR
Cross Ship
Leaves in 2-5 days
$43.99
$39.59
You save $4.40
More details
-10%
Flat Screw
5
Yamaha Motors
Flat Screw98707-04012-00
Required: 2
. SCREW, FLAT HEAD
Supersedes: 98706-04012-00
Cross Ship
Leaves in 2-5 days
$1.85
$1.67
You save $0.19
More details
-10%
Master Cylinder Bracket
6
Yamaha Motors
Master Cylinder Bracket4L0-25867-00-00
Required: 1
BRACKET, MASTER CYLINDER
Cross Ship
Leaves in 2-5 days
$35.99
$32.39
You save $3.60
More details
-10%
Plug
7
Yamaha Motors
Plug90338-09012-00
Required: 2
PLUG
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
Bolt
8
Yamaha Motors
Bolt97017-06025-00
Required: 2
BOLT
Supersedes: 97016-06025-00
Cross Ship
Leaves in 2-5 days
$4.55
$4.09
You save $0.46
More details
-10%
Union Bolt (3GM)
10
Yamaha Motors
Union Bolt (3GM)90401-10159-00
Required: 1
BOLT, UNION
Supersedes: 90401-10096-00
Cross Ship
Leaves in 2-5 days
$12.49
$11.24
You save $1.25
More details
HOSE, BRAKE 2
12
Yamaha Motors
HOSE, BRAKE 24FL-25873-00
Required: 1
HOSE, BRAKE 2
Price unavailable
-10%
Union Bolt (3GM)
13
Yamaha Motors
Union Bolt (3GM)90401-10159-00
Required: 1
BOLT, UNION
Supersedes: 90401-10096-00
Cross Ship
Leaves in 2-5 days
$12.49
$11.24
You save $1.25
More details
BRACKET
15
Yamaha Motors
BRACKET3XV-2612E-00
Required: 1
BRACKET
Price unavailable
HOLDER
16
Yamaha Motors
HOLDER3XV-26393-00
Required: 1
HOLDER
Price unavailable
HOLDER, BRAKE HOSE 2
18
Yamaha Motors
HOLDER, BRAKE HOSE 23XV-25876-20
Required: 1
HOLDER, BRAKE HOSE 2
Price unavailable
HOLDER, BRAKE HOSE 2
19
Yamaha Motors
HOLDER, BRAKE HOSE 23XV-25876-10
Required: 1
HOLDER, BRAKE HOSE 2
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
