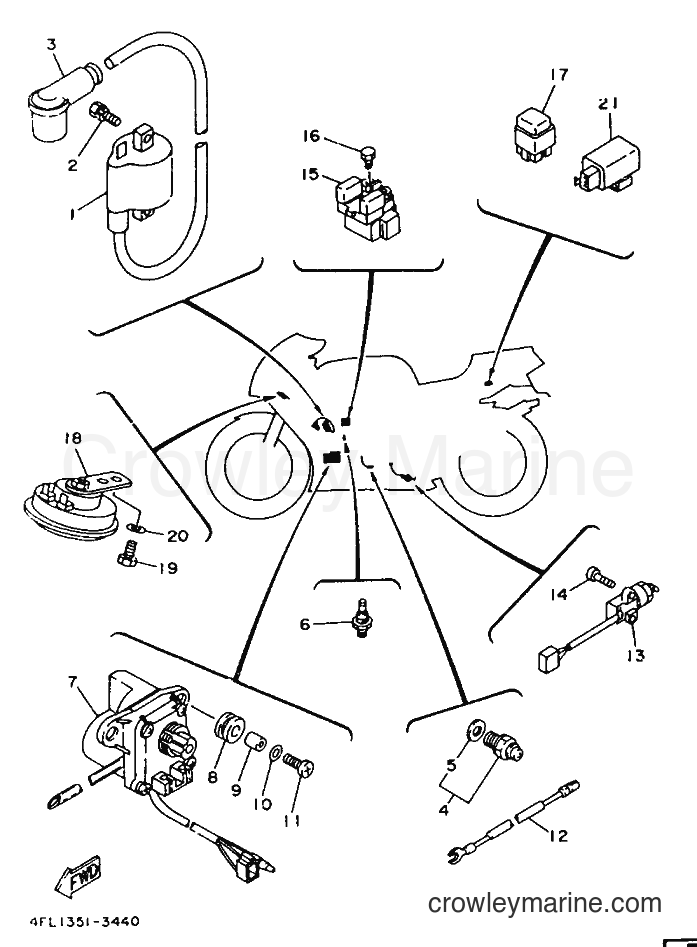

1993 Sport Bike TZR125 - TZR125 (4JB1) [999] ELECTRICAL 2 diagram
![Yamaha Motors TZR125 (4JB1) [999] - ELECTRICAL 2](https://cdn.crowleymarine.com/yamaha/WjU5iFQW.png)
-10%
1
Yamaha Motors
IGNITION COIL ASSY3KJ-82310-14-00
Required: 1
IGNITION COIL ASSY
Supersedes: 3KJ-82310-00-00
$37.79
You save $4.20
2
Yamaha Motors
SCREW, HEXAGON90153-06059
Required: 2
SCREW, HEXAGON
Price unavailable
3
Yamaha Motors
PLUG CAP ASSY3XV-82370-00
Required: 1
PLUG CAP ASSY
Price unavailable
-10%
4
Yamaha Motors
Neutral Switch Assembly4GY-82540-10-00
Required: 1
NEUTRAL SWITCH ASSY
Supersedes: 2H7-82540-00-00
$37.79
You save $4.20
-10%
5
Yamaha Motors
Tank Cap Gasket296-82543-00-00
Required: 1
. GASKET
Supersedes: 341-82543-00-00
$5.39
You save $0.60
-10%
$103.49
You save $11.50
7
Yamaha Motors
SERVO MOTOR ASSY4FL-85820-00
Required: 1
SERVO MOTOR ASSY
Price unavailable
-10%
$7.64
You save $0.85
-10%
9
Yamaha Motors
COLLAR90387-07598-00
Required: 2
COLLAR
Supersedes: 90387-06299-00
$5.84
You save $0.65
-10%
10
Yamaha Motors
Plate Washer90201-06380-00
Required: 2
WASHER, PLATE
Supersedes: 90201-06067-00
$0.59
You save $0.06
-10%
11
Yamaha Motors
Pan Head Screw98517-06025-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98511-06025-00
$3.65
You save $0.40
-10%
No longer availableSearch Nationwide Inventory
$7.64
You save $0.85
-10%
13
Yamaha Motors
SWITCH, SIDE STAND3LD-82566-B1-00
Required: 1
SWITCH, SIDE STAND
Supersedes: 3LD-82566-80-00
$50.39
You save $5.60
-10%
14
Yamaha Motors
Pan Head Screw98507-05014-00
Required: 2
SCREW, PAN HEAD
Supersedes: 90157-05079-00
$8.54
You save $0.95
-10%
15
Yamaha Motors
STARTER RELAY ASSY (4FL-81940-02-00
Required: 1
STARTER RELAY ASSY
Supersedes: 4FL-81940-00-00
No longer availableSearch Nationwide Inventory
$59.39
You save $6.60
-10%
16
Yamaha Motors
Flange Bolt95024-06008-00
Required: 2
BOLT, FLANGE
Supersedes: 95023-06008-00
$9.44
You save $1.05
-10%
17
Yamaha Motors
Starter Relay25G-81950-02-00
Required: 1
RELAY ASSY
Supersedes: 25G-81950-01-00
$46.79
You save $5.20
18
Yamaha Motors
HORN4FL-83371-00
Required: 1
HORN
Price unavailable
-10%
19
Yamaha Motors
Bolt97017-06010-00
Required: 1
BOLT
Supersedes: 97026-06010-00
$3.65
You save $0.40
-50%
20
Yamaha Motors
Spring Washer92907-06100-00
Required: 1
WASHER, SPRING
Supersedes: 92906-06100-00
In stock
Only 1 remaining
$0.65
You save $0.65
-10%
21
Yamaha Motors
Flasher Relay Assembly3YA-83350-00-00
Required: 1
FLASHER RELAY ASSY
Supersedes: 3YA-83350-10-00
$98.09
You save $10.90
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
