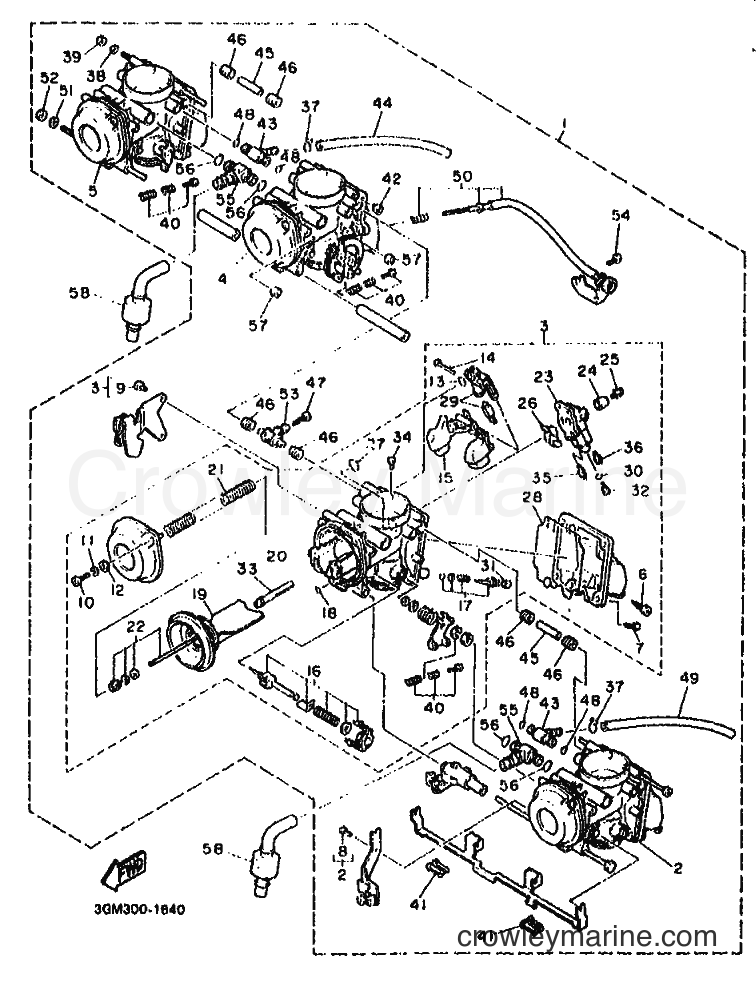

1994 Sport Bike FZR1000 - FZR1000 (3LE6) [999] ALTERNATE diagram
![Yamaha Motors FZR1000 (3LE6) [999] - ALTERNATE](https://cdn.crowleymarine.com/yamaha/DSW6CUYR.png)
1
Yamaha Motors
CARBURETOR ASSY3LH-14900-01
Required: 1
CARBURETOR ASSY
Price unavailable
2
Yamaha Motors
. CARBURETOR ASSY 13LH-14901-01
Required: 1
. CARBURETOR ASSY 1
Price unavailable
3
Yamaha Motors
. CARBURETOR ASSY 23LH-14902-01
Required: 1
. CARBURETOR ASSY 2
Price unavailable
4
Yamaha Motors
. CARBURETOR ASSY 33LH-14903-01
Required: 1
. CARBURETOR ASSY 3
Price unavailable
5
Yamaha Motors
. CARBURETOR ASSY 43LH-14904-01
Required: 1
. CARBURETOR ASSY 4
Price unavailable
-10%
6
Yamaha Motors
Drain Plug12R-14191-00-00
Required: 1
. . PLUG, DRAIN
$16.19
You save $1.80
-10%
7
Yamaha Motors
98517-05012-0098501-05012-00
Required: 4
. . SCREW, PAN HEAD
No longer availableSearch Nationwide Inventory
$1.04
You save $0.11
-10%
8
Yamaha Motors
Screw98580-04008-00
Required: 1
. . SCREW, PAN HEAD
$5.84
You save $0.65
-10%
9
Yamaha Motors
Screw98580-04008-00
Required: 2
. . SCREW, PAN HEAD
$5.84
You save $0.65
-10%
10
Yamaha Motors
Pan Head Screw98586-05016-00
Required: 2
. . SCREW, PAN HEAD
No longer availableSearch Nationwide Inventory
$3.29
You save $0.36
-10%
11
Yamaha Motors
Spring Washer92907-05100-00
Required: 2
. . WASHER, SPRING
Supersedes: 92906-05100-00
$8.54
You save $0.95
12
Yamaha Motors
Plate Washer92907-05600-00
Required: 2
. . WASHER, PLATE
Supersedes: 92906-05600-00
$1.98
-10%
$13.94
You save $1.55
-10%
14
Yamaha Motors
Float Pin53L-14186-00-00
Required: 1
. . PIN, FLOAT
$4.94
You save $0.55
-10%
$107.09
You save $11.90
-10%
16
Yamaha Motors
Starter Set3EN-1410A-01-00
Required: 1
. . STARTER SET
Supersedes: 3EN-1410A-00-00
$94.49
You save $10.50
-50%
17
Yamaha Motors
Pilot Screw Set12R-14105-00-00
Required: 1
. . PILOT SCREW SET
In stock
Only 4 remaining
$9.49
You save $9.49
-10%
$16.19
You save $1.80
-10%
19
Yamaha Motors
DIAPHRAGM ASSEMBLY3GM-14940-00-00
Required: 1
. . DIAPHRAGM ASSY
$197.09
You save $21.90
-10%
20
Yamaha Motors
Jet Block3GM-1411E-00-00
Required: 1
. . BLOCK, JET
No longer availableSearch Nationwide Inventory
$50.39
You save $5.60
-10%
21
Yamaha Motors
Diaphragm Spring3FV-14933-00-00
Required: 1
. . SPRING, DIAPHRAGM
No longer availableSearch Nationwide Inventory
$24.29
You save $2.70
-10%
22
Yamaha Motors
Needle Set3GM-1490J-00-00
Required: 1
. . NEEDLE SET
No longer availableSearch Nationwide Inventory
$13.49
You save $1.50
-10%
23
Yamaha Motors
BLOCK JET ASY3GM-1411A-00-00
Required: 1
. . BLOCK JET ASSY
No longer availableSearch Nationwide Inventory
$66.59
You save $7.40
-10%
24
Yamaha Motors
MAIN JET WASHER3GM-14153-00-00
Required: 1
. . WASHER, MAIN JET
No longer availableSearch Nationwide Inventory
$5.39
You save $0.60
-10%
$20.69
You save $2.30
25
Yamaha Motors
. . SCREW, CYLINDER HEAD1HX-14566-00
Required: 1
. . SCREW, CYLINDER HEAD
Price unavailable
-10%
$17.99
You save $2.00
-10%
$27.89
You save $3.10
-10%
$20.69
You save $2.30
-10%
29
Yamaha Motors
Needle Valve Set3GM-14107-17-00
Required: 1
. . NEEDLE VALVE SET
$71.99
You save $8.00
-10%
$9.89
You save $1.10
31
Yamaha Motors
. . CAP2RJ-14118-00
Required: 1
. . CAP
Price unavailable
-10%
$5.84
You save $0.65
-10%
$13.04
You save $1.45
-10%
33
Yamaha Motors
Main Nozzle3GM-14141-90-00
Required: 1
. . NOZZLE, MAIN
$40.49
You save $4.50
-10%
No longer availableSearch Nationwide Inventory
$13.04
You save $1.45
35
Yamaha Motors
. . JET, PILOT4GO-14142-37-AO
Required: 1
. . JET, PILOT
Price unavailable
-10%
$11.69
You save $1.30
-10%
No longer availableSearch Nationwide Inventory
$5.84
You save $0.65
-15%
38
Yamaha Motors
Plate Washer92990-05600-00
Required: 1
. WASHER, PLATE
Supersedes: 92901-05600-00
In stock
Only 1 remaining
$0.68
You save $0.12
-15%
In stock
5+ in stock
$8.07
You save $1.42
-10%
40
Yamaha Motors
Stop Screw L=15 R, S Screw Set4KM-1490K-00-00
Required: 3
. STOP SCREW SET
Supersedes: 3EN-1490K-00-00
$16.19
You save $1.80
-10%
No longer availableSearch Nationwide Inventory
$10.34
You save $1.15
-10%
No longer availableSearch Nationwide Inventory
$8.54
You save $0.95
-10%
$33.29
You save $3.70
-10%
44
Yamaha Motors
Hose50H-14987-00-00
Required: 1
. PIPE
Supersedes: 2GH-14197-00-00
$41.39
You save $4.60
-10%
45
Yamaha Motors
PIPE,STARTER CONN.3GM-14988-00-00
Required: 2
. PIPE, STARTER CONNECTING
No longer availableSearch Nationwide Inventory
$7.64
You save $0.85
-10%
$14.84
You save $1.65
-10%
47
Yamaha Motors
Filter Net1KT-14994-00-00
Required: 1
. NET, FILTER
$38.69
You save $4.30
-10%
48
Yamaha Motors
O-Ring36Y-14147-00-00
Required: 4
. O-RING
Supersedes: 822-14147-00-00
In stock
Only 1 remaining
$5.39
You save $0.60
-10%
No longer availableSearch Nationwide Inventory
$10.79
You save $1.20
-10%
50
Yamaha Motors
THROTTLE SCREW SET3GM-14103-00-00
Required: 1
. THROTTLE SCREW SET
No longer availableSearch Nationwide Inventory
$73.79
You save $8.20
-15%
51
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
. WASHER, PLATE
In stock
5+ in stock
$2.51
You save $0.44
-15%
52
Yamaha Motors
Hexagon Nut95380-06600-00
Required: 1
. NUT, HEXAGON
In stock
5+ in stock
$4.17
You save $0.74
-10%
53
Yamaha Motors
Pipe, Starter Connecting3EN-14988-00-00
Required: 1
. PIPE, STARTER CONNECTING
No longer availableSearch Nationwide Inventory
$11.24
You save $1.25
-50%
54
Yamaha Motors
Pan Head Screw98507-05008-00
Required: 1
. SCREW, PAN HEAD
Supersedes: 98501-05008-00
In stock
Only 1 remaining
$1.92
You save $1.92
-10%
No longer availableSearch Nationwide Inventory
$56.69
You save $6.30
-10%
$20.69
You save $2.30
-10%
No longer availableSearch Nationwide Inventory
$5.39
You save $0.60
-10%
No longer availableSearch Nationwide Inventory
$53.09
You save $5.90
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
