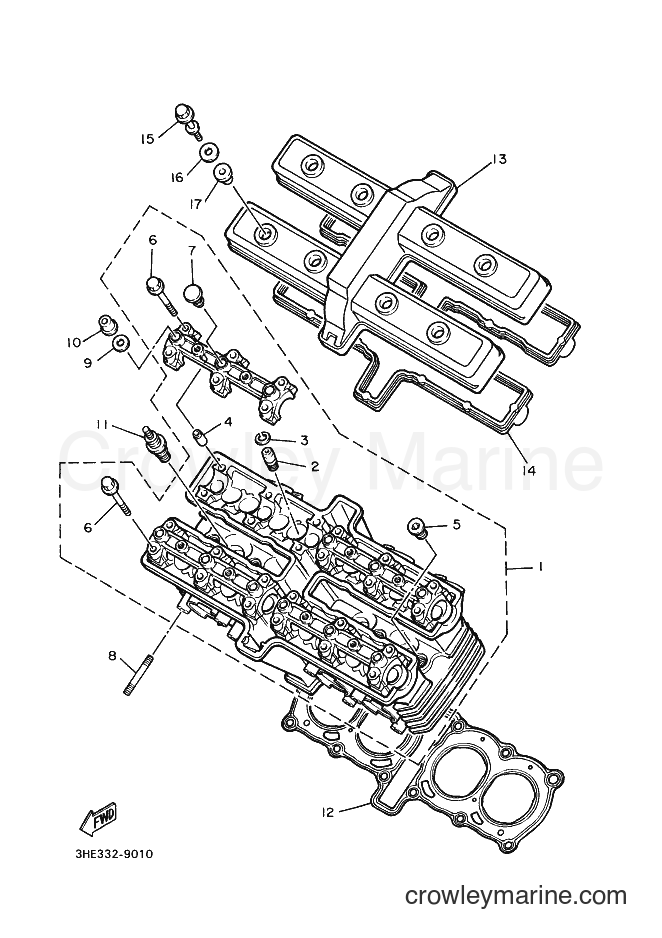

1994 Sport Bike FZR600 - FZR600 (3HHD) [010] CYLINDER HEAD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors FZR600 (3HHD) [010] - CYLINDER HEAD
Change View:
-10%
Intake Valve Guide
2
Yamaha Motors
Intake Valve Guide1WG-11133-11-00
Required: 16
.GUIDE, intake valve
Supersedes: 1WG-11133-10-00
Cross Ship
Leaves in 2-5 days
$84.99
$76.49
You save $8.50
More details
-10%
Circlip (Outer)
3
Yamaha Motors
Circlip (Outer)93440-10153-00
Required: 16
.CIRCLIP
Cross Ship
Leaves in 2-5 days
$2.60
$2.34
You save $0.26
More details
-10%
Straight Screw Plug
5
Yamaha Motors
Straight Screw Plug90340-12112-00
Required: 6
.PLUG, straight screw
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
Plug
7
Yamaha Motors
Plug90338-08174-00
Required: 12
.PLUG
Cross Ship
Leaves in 2-5 days
$8.99
$8.09
You save $0.90
More details
-10%
Stud Bolt
8
Yamaha Motors
Stud Bolt90116-06466-00
Required: 8
BOLT, stud
Supersedes: 90116-06437-00
Cross Ship
Leaves in 2-5 days
$4.85
$4.37
You save $0.49
More details
-10%
Washer Plate (3LN)
9
Yamaha Motors
Washer Plate (3LN)90201-086M0-00
Required: 12
WASHER, plate
Supersedes: 90201-087K2-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
CR9E NGK SPLUG 10P
11
Yamaha Motors
CR9E NGK SPLUG 10PCR9-E0000-00-00
Required: 4
PLUG, spark (ND U27ESR-N)
Supersedes: 94701-00319-00
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
CR9E NGK SPLUG 10P
11
Yamaha Motors
CR9E NGK SPLUG 10PCR9-E0000-00-00
Required: 4
PLUG, spark (NGK R CR9E)
Supersedes: 94701-00318-00
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
Head Cover Gasket
14
Yamaha Motors
Head Cover Gasket1WG-11193-01-00
Required: 1
GASKET, head cover 1
Supersedes: 1WG-11193-00-00
Cross Ship
Leaves in 2-5 days
$45.99
$41.39
You save $4.60
More details
-10%
Bolt (3TJ)
15
Yamaha Motors
Bolt (3TJ)90109-064F0-00
Required: 8
BOLT
Cross Ship
Leaves in 2-5 days
$18.49
$16.64
You save $1.85
More details
-10%
Special Shape Washer
16
Yamaha Motors
Special Shape Washer90209-11262-00
Required: 8
WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
MOUNT RUBBER
17
Yamaha Motors
MOUNT RUBBER2GH-1111G-00-00
Required: 8
RUBBER, mount 1
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
