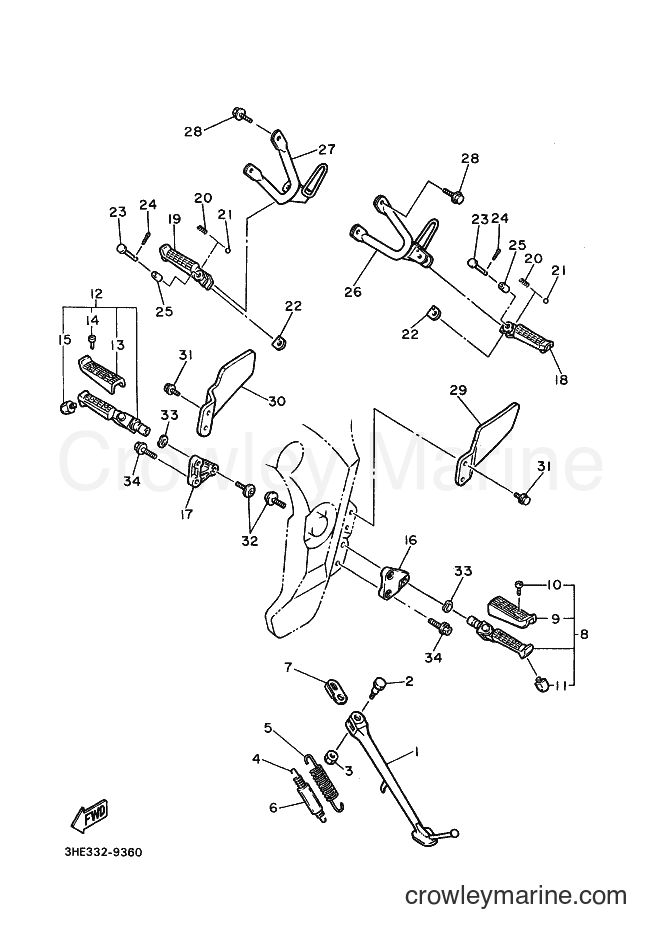

1994 Sport Bike FZR600 - FZR600 (3HHD) [010] STAND & FOOTREST diagram
![Yamaha Motors FZR600 (3HHD) [010] - STAND & FOOTREST](https://cdn.crowleymarine.com/yamaha/sNg3934U.png)
-10%
1
Yamaha Motors
SIDE STAND4BP-27311-00-00
Required: 1
STAND, side
Supersedes: 2KT-27311-00-00
No longer availableSearch Nationwide Inventory
$104.39
You save $11.60
-10%
2
Yamaha Motors
Bolt (2GH)90109-104E6-00
Required: 1
BOLT
Supersedes: 90109-10474-00
$9.44
You save $1.05
-10%
3
Yamaha Motors
Self-Locking Nut90185-10037-00
Required: 1
NUT, self-locking
$9.44
You save $1.05
-10%
4
Yamaha Motors
TENSION SPRING90506-18224-00
Required: 1
SPRING, tension
$5.84
You save $0.65
-10%
5
Yamaha Motors
TENSION SPRING90506-26225-00
Required: 1
SPRING, tension
$11.24
You save $1.25
-10%
6
Yamaha Motors
Side Stand Guide1TX-27351-00-00
Required: 1
GUIDE, side stand
$7.64
You save $0.85
-10%
7
Yamaha Motors
Side Stand Link3VD-27315-00-00
Required: 1
LINK, side stand
Supersedes: 2KT-27315-00-00
$7.64
You save $0.85
-10%
8
Yamaha Motors
Front Footrest Assembly3HE-27410-00-00
Required: 1
FRONT FOOTREST ASSY (LEFT)
No longer availableSearch Nationwide Inventory
$114.29
You save $12.70
-10%
9
Yamaha Motors
FOOTREST COVER2GH-27413-00-00
Required: 1
.COVER, footrest
$44.99
You save $5.00
-10%
10
Yamaha Motors
Pan Head Screw98507-05014-00
Required: 2
.SCREW, pan head
Supersedes: 90157-05079-00
$8.54
You save $0.95
-10%
$28.79
You save $3.20
-10%
12
Yamaha Motors
Front Footrest Assembly R3HE-27420-00-00
Required: 1
FRONT FOOTREST ASSY (RIGHT)
No longer availableSearch Nationwide Inventory
$114.29
You save $12.70
-10%
13
Yamaha Motors
FOOTREST COVER2GH-27413-00-00
Required: 1
.COVER, footrest
$44.99
You save $5.00
-10%
14
Yamaha Motors
Pan Head Screw98507-05014-00
Required: 2
.SCREW, pan head
Supersedes: 90157-05079-00
$8.54
You save $0.95
-10%
$28.79
You save $3.20
-10%
No longer availableSearch Nationwide Inventory
$74.69
You save $8.30
-10%
No longer availableSearch Nationwide Inventory
$89.99
You save $10.00
-10%
18
Yamaha Motors
Rear Footrest3VR-27431-02-00
Required: 1
FOOTREST, rear 1
Supersedes: 1HX-27431-00-00
$29.69
You save $3.30
-10%
19
Yamaha Motors
REAR FOOTREST3VR-27441-02-00
Required: 1
FOOTREST, rear 2
Supersedes: 1HX-27441-00-00
$29.69
You save $3.30
-10%
20
Yamaha Motors
Compression Spring90501-12743-00
Required: 2
SPRING, compression
$4.94
You save $0.55
-20%
In stock
Only 5 remaining
$7.59
You save $1.90
-10%
22
Yamaha Motors
Special Washer1HX-27437-00-00
Required: 2
WASHER, special
$9.89
You save $1.10
-10%
$7.64
You save $0.85
-15%
24
Yamaha Motors
Cotter Pin91490-20015-00
Required: 2
PIN, cotter
Supersedes: 91401-20015-00
In stock
5+ in stock
$1.87
You save $0.33
-10%
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$127.79
You save $14.20
-10%
No longer availableSearch Nationwide Inventory
$127.79
You save $14.20
-10%
No longer availableSearch Nationwide Inventory
$1.44
You save $0.16
-10%
No longer availableSearch Nationwide Inventory
$51.29
You save $5.70
-10%
No longer availableSearch Nationwide Inventory
$51.29
You save $5.70
-10%
No longer availableSearch Nationwide Inventory
$1.89
You save $0.21
-10%
$9.44
You save $1.05
-10%
$11.24
You save $1.25
-10%
No longer availableSearch Nationwide Inventory
$2.43
You save $0.27
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
