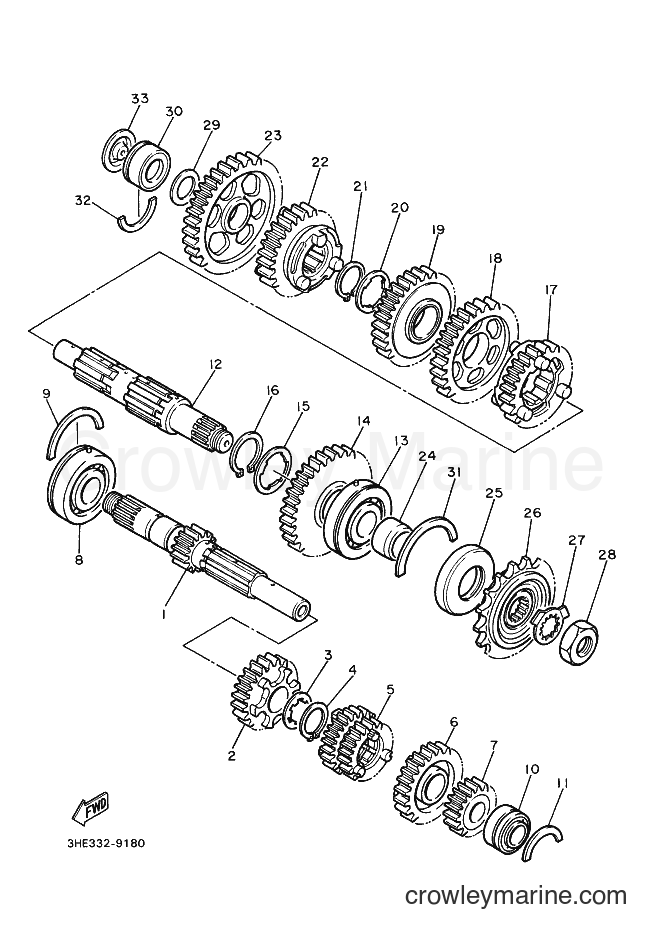

1994 Sport Bike FZR600 - FZR600 (3HHD) [010] TRANSMISSION diagram
![Yamaha Motors FZR600 (3HHD) [010] - TRANSMISSION](https://cdn.crowleymarine.com/yamaha/wuPDMHnp.png)
-10%
1
Yamaha Motors
Main Axle3HE-17411-10-00
Required: 1
AXLE, main (13T)
No longer availableSearch Nationwide Inventory
$212.00
You save $23.56
-10%
2
Yamaha Motors
5th Pinion Gear3HE-17151-00-00
Required: 1
GEAR, 5th pinion (26T)
No longer availableSearch Nationwide Inventory
$115.19
You save $12.80
-10%
$8.54
You save $0.95
-10%
$8.54
You save $0.95
-10%
5
Yamaha Motors
3rd Pinion Gear3HE-17131-00-00
Required: 1
GEAR, 3rd pinion (21T)
No longer availableSearch Nationwide Inventory
$129.59
You save $14.40
-10%
6
Yamaha Motors
6th Pinion Gear3HE-17161-00-00
Required: 1
GEAR, 6th pinion (27T)
No longer availableSearch Nationwide Inventory
$123.29
You save $13.70
-10%
7
Yamaha Motors
2nd Pinion Gear3HE-17121-10-00
Required: 1
GEAR, 2ndpinion (22T)
No longer availableSearch Nationwide Inventory
$44.99
You save $5.00
-10%
8
Yamaha Motors
BEARING93306-37208-00
Required: 1
BEARING (83B285C3)
Supersedes: 93306-37205-00
$44.09
You save $4.90
-10%
$5.84
You save $0.65
-10%
No longer availableSearch Nationwide Inventory
$48.59
You save $5.40
-10%
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$246.59
You save $27.40
-50%
In stock
Only 1 remaining
$35.00
You save $35.00
-10%
14
Yamaha Motors
2ND WHEEL GEAR3HE-17221-10-00
Required: 1
GEAR, 2nd wheel (37T)
No longer availableSearch Nationwide Inventory
$100.79
You save $11.20
-10%
$8.54
You save $0.95
-10%
$10.34
You save $1.15
-10%
17
Yamaha Motors
6th Wheel Gear3HE-17261-10-00
Required: 1
GEAR, 6th wheel (30T)
No longer availableSearch Nationwide Inventory
$114.29
You save $12.70
-10%
18
Yamaha Motors
3RD WHEEL GEAR3HE-17231-00-00
Required: 1
GEAR, 3rd wheel (31T)
No longer availableSearch Nationwide Inventory
$100.79
You save $11.20
-10%
19
Yamaha Motors
4TH WHEEL GEAR3HE-17241-00-00
Required: 1
GEAR, 4th wheel (28T)
No longer availableSearch Nationwide Inventory
$109.79
You save $12.20
-10%
$7.64
You save $0.85
-10%
$4.00
You save $0.45
-10%
22
Yamaha Motors
5th Wheel Gear3HE-17251-00-00
Required: 1
GEAR, 5th wheel (31T)
No longer availableSearch Nationwide Inventory
$102.59
You save $11.40
-10%
23
Yamaha Motors
1st Gear Wheel3HE-17211-10-00
Required: 1
GEAR, 1st wheel (42T)
No longer availableSearch Nationwide Inventory
$100.79
You save $11.20
-10%
No longer availableSearch Nationwide Inventory
$21.59
You save $2.40
-10%
25
Yamaha Motors
SD-TYPE OIL SEAL93102-35109-00
Required: 1
OIL SEAL (SD-35-62-6 HS)
$26.09
You save $2.90
-10%
26
Yamaha Motors
Drive Sprocket (15 teeth)3HE-17460-00-00
Required: 1
SPROCKET, drive (15T)
$39.59
You save $4.40
-10%
27
Yamaha Motors
Lock Washer90215-21290-00
Required: 1
WASHER, lock
Supersedes: 90215-21022-00
$8.54
You save $0.95
-10%
$12.14
You save $1.35
-10%
29
Yamaha Motors
Plate Washer90201-20276-00
Required: 1
WASHER, plate (1.0T)
$8.54
You save $0.95
-10%
30
Yamaha Motors
BEARING,CYL.#1193311-42045-00
Required: 1
BEARING (20NG3315NE)
$30.59
You save $3.40
-10%
$21.59
You save $2.40
-10%
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$6.29
You save $0.70
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
