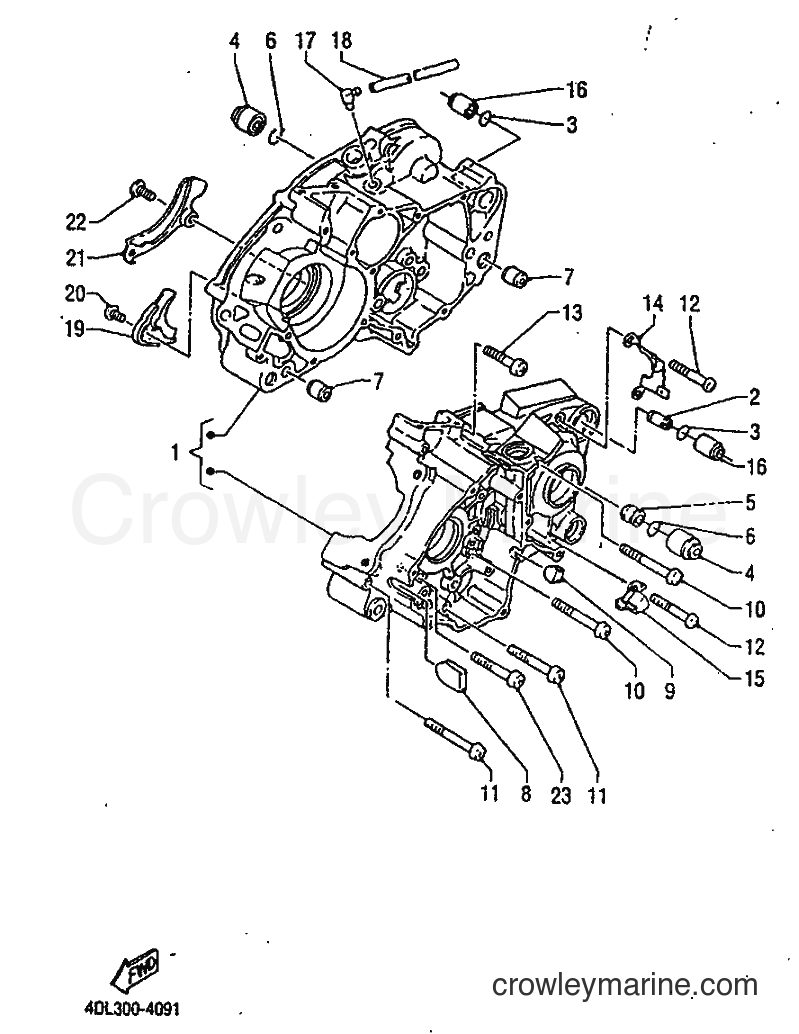

1994 Sport Bike TZR125 - TZR125 (4DL3) [999] CRANKCASE diagram
![Yamaha Motors TZR125 (4DL3) [999] - CRANKCASE](https://cdn.crowleymarine.com/yamaha/JeScgtrI.png)
1
Yamaha Motors
CRANKCASE ASSY4DL-E5150-00
Required: 1
CRANKCASE ASSY
Price unavailable
2
Yamaha Motors
SPACER, ENGINE MOUNT4DL-E5317-00
Required: 2
SPACER, ENGINE MOUNT
Price unavailable
-10%
3
Yamaha Motors
93210-11313-0093210-12154-00
Required: 2
O-RING
Supersedes: 93210-12095-00
No longer availableSearch Nationwide Inventory
$3.15
You save $0.35
-10%
4
Yamaha Motors
DAMPER 290388-08003-00
Required: 2
DAMPER, ENGINE MOUNT 1
Supersedes: 328-15316-00-00
$17.54
You save $1.95
5
Yamaha Motors
SPACER, ENGINE MOUNT3NC-E5317-00
Required: 1
SPACER, ENGINE MOUNT
Price unavailable
-10%
6
Yamaha Motors
93210-11313-0093210-12154-00
Required: 2
O-RING
Supersedes: 93210-12095-00
No longer availableSearch Nationwide Inventory
$3.15
You save $0.35
-50%
7
Yamaha Motors
Dowel Pin99530-12016-00
Required: 2
PIN, DOWEL
Supersedes: 99510-12016-00
In stock
Only 2 remaining
$2.45
You save $2.45
8
Yamaha Motors
PLUG, BLIND 13SH-E5167-00
Required: 2
PLUG, BLIND 1
Price unavailable
9
Yamaha Motors
PLUG, BLIND 23SH-E5168-00
Required: 1
PLUG, BLIND 2
Price unavailable
-10%
$10.34
You save $1.15
11
Yamaha Motors
BOLT91312-06065
Required: 3
BOLT
Price unavailable
-10%
$4.94
You save $0.55
-10%
$8.54
You save $0.95
14
Yamaha Motors
CLAMP90462-08189
Required: 1
CLAMP
Price unavailable
15
Yamaha Motors
CLAMP90462-10190
Required: 1
CLAMP
Price unavailable
-10%
16
Yamaha Motors
DAMPER 290388-08003-00
Required: 2
DAMPER, ENGINE MOUNT 1
Supersedes: 328-15316-00-00
$17.54
You save $1.95
17
Yamaha Motors
BREATHER3FN-E5371-00
Required: 1
BREATHER
Price unavailable
18
Yamaha Motors
HOSE90445-05001
Required: 1
HOSE
Price unavailable
19
Yamaha Motors
HOLDER3FN-E5128-00
Required: 1
HOLDER
Price unavailable
-10%
20
Yamaha Motors
PAN SCREW98507-08010-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98501-08010-00
$8.54
You save $0.95
21
Yamaha Motors
COVER3FN-E5492-00
Required: 1
COVER
Price unavailable
-10%
22
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98502-06012-00
$3.69
You save $0.41
-10%
23
Yamaha Motors
Bolt (4MY)91317-06055-00
Required: 1
BOLT
Supersedes: 91316-06055-00
$4.05
You save $0.45
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
