1994 Sport Bike TZR125 - TZR125 (4DL3) [999] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

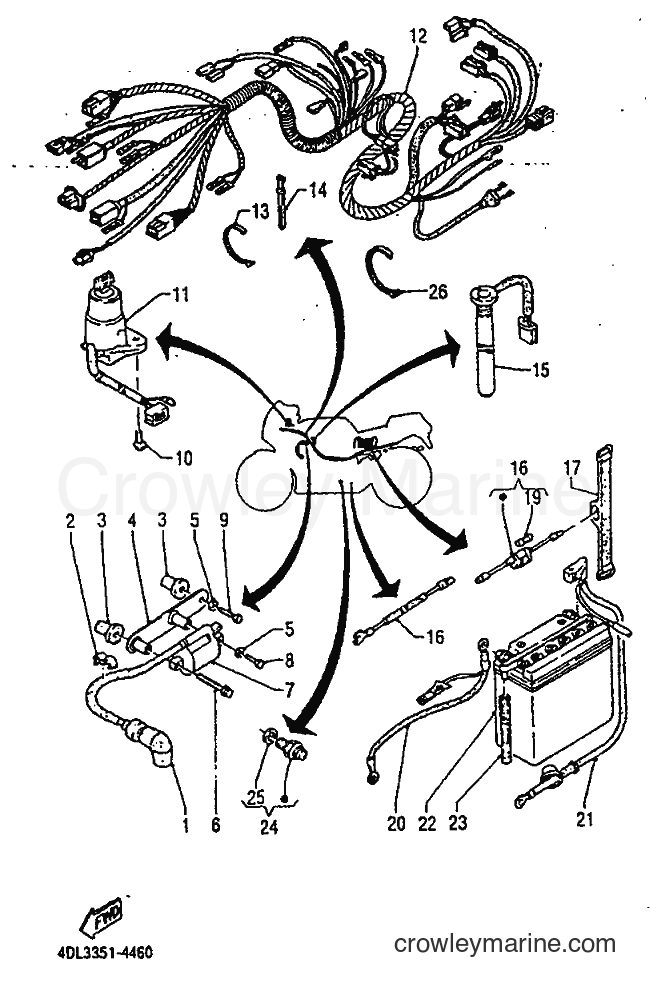

Yamaha Motors TZR125 (4DL3) [999] - ELECTRICAL 1
Change View:
-10%
Clip
2
Yamaha Motors
Clip90468-15020-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-10%
Nut
3
Yamaha Motors
Nut90179-06524-00
Required: 2
NUT
Cross Ship
Leaves in 2-5 days
$3.49
$3.14
You save $0.35
More details
HOLDER, COIL FITTING
4
Yamaha Motors
HOLDER, COIL FITTING4DL-H2312-00
Required: 1
HOLDER, COIL FITTING
Price unavailable
BOLT
6
Yamaha Motors
BOLT97001-06050
Required: 1
BOLT
Price unavailable
IGNITION COIL ASSY
7
Yamaha Motors
IGNITION COIL ASSY2JH-82310-M0
Required: 1
IGNITION COIL ASSY
Price unavailable
-10%
SPECIAL SHAPE SCREW
10
Yamaha Motors
SPECIAL SHAPE SCREW90149-06228-00
Required: 2
SCREW
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
MAIN SWITCH STEERING LOCK
11
Yamaha Motors
MAIN SWITCH STEERING LOCK3LY-82501-00
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
WIRE HARNESS ASSY
12
Yamaha Motors
WIRE HARNESS ASSY4DL-H2590-10
Required: 1
WIRE HARNESS ASSY
Price unavailable
BAND
13
Yamaha Motors
BAND2AJ-F3192-50
Required: 4
BAND
Price unavailable
-10%
CLAMP
14
Yamaha Motors
CLAMP90464-30014-00
Required: 1
BAND, SWITCH CORD
Supersedes: 437-83936-01-00
Cross Ship
Leaves in 2-5 days
$5.60
$5.04
You save $0.56
More details
OIL LEVEL GAUGE ASSY
15
Yamaha Motors
OIL LEVEL GAUGE ASSY3MA-85720-10
Required: 1
OIL LEVEL GAUGE ASSY
Price unavailable
WIRE, LEAD
16
Yamaha Motors
WIRE, LEAD3SH-H2541-00
Required: 1
WIRE, LEAD
Price unavailable
BAND, BATTERY
17
Yamaha Motors
BAND, BATTERY18U-82131-00
Required: 1
BAND, BATTERY
Price unavailable
-10%
Obsolete Yamaha Part
19
Yamaha Motors
Obsolete Yamaha Part1A0-82151-00-00
Required: 2
. FUSE
Supersedes: 116-82151-00-00
Cross Ship
Leaves in 2-5 days
$17.99
$16.19
You save $1.80
More details
WIRE, MINUS LEAD
20
Yamaha Motors
WIRE, MINUS LEAD4DL-H2116-01
Required: 1
WIRE, MINUS LEAD
Price unavailable
WIRE, PLUS LEAD
21
Yamaha Motors
WIRE, PLUS LEAD3MB-82115-00
Required: 1
WIRE, PLUS LEAD
Price unavailable
BATTERY ASSY
22
Yamaha Motors
BATTERY ASSY3SH-H2110-00
Required: 1
BATTERY ASSY
Price unavailable
HOSE
23
Yamaha Motors
HOSE90445-08880
Required: 1
HOSE
Price unavailable
NEUTRAL SWITCH ASSY
24
Yamaha Motors
NEUTRAL SWITCH ASSY3NC-H2540-00
Required: 1
NEUTRAL SWITCH ASSY
Price unavailable
. GASKET
25
Yamaha Motors
. GASKET4DL-H2543-00
Required: 1
. GASKET
Price unavailable
