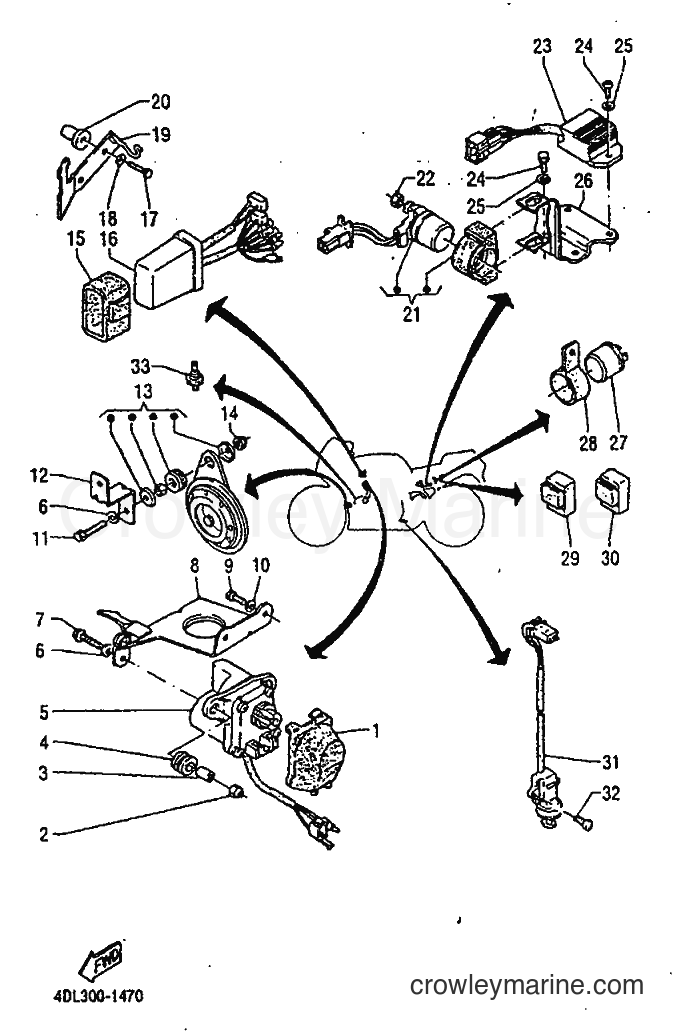

1994 Sport Bike TZR125 - TZR125 (4DL3) [999] ELECTRICAL 2 diagram
![Yamaha Motors TZR125 (4DL3) [999] - ELECTRICAL 2](https://cdn.crowleymarine.com/yamaha/Cr3GUZDJ.png)
-10%
1
Yamaha Motors
Wire Cover34X-85825-01-00
Required: 1
COVER, WIRE
Supersedes: 34X-85825-00-00
No longer availableSearch Nationwide Inventory
$14.84
You save $1.65
2
Yamaha Motors
NUT, FLANGE95712-06300
Required: 2
NUT, FLANGE
Price unavailable
-10%
3
Yamaha Motors
COLLAR90387-07598-00
Required: 2
COLLAR
Supersedes: 90387-06299-00
$5.84
You save $0.65
-10%
$7.64
You save $0.85
5
Yamaha Motors
SERVO MOTOR ASSY3MB-85820-00
Required: 1
SERVO MOTOR ASSY
Price unavailable
-15%
6
Yamaha Motors
Plate Washer92990-06600-00
Required: 3
WASHER, PLATE
Supersedes: 92901-06600-00
In stock
5+ in stock
$2.51
You save $0.44
-10%
7
Yamaha Motors
BOLT97011-06020-00
Required: 2
BOLT
Supersedes: 97001-06020-00
No longer availableSearch Nationwide Inventory
$0.85
You save $0.09
8
Yamaha Motors
BRACKET, CABLE4DL-H5824-00
Required: 1
BRACKET, CABLE
Price unavailable
-50%
In stock
Only 2 remaining
$7.24
You save $7.24
-15%
10
Yamaha Motors
Plain Washer92990-06200-00
Required: 2
WASHER
Supersedes: 92902-06200-00
In stock
5+ in stock
$0.85
You save $0.15
11
Yamaha Motors
BOLT90101-06022
Required: 1
BOLT
Price unavailable
12
Yamaha Motors
STAY, HORN4DL-H3378-00
Required: 1
STAY, HORN
Price unavailable
13
Yamaha Motors
HORN4DL-H3371-00
Required: 1
HORN
Price unavailable
-10%
14
Yamaha Motors
95701-06500-0095701-06100-00
Required: 1
NUT, FLANGE
Supersedes: 95702-06100-00
No longer availableSearch Nationwide Inventory
$2.02
You save $0.23
-10%
$6.74
You save $0.75
16
Yamaha Motors
C.D.I. UNIT ASSY4DL-85540-00
Required: 1
C.D.I. UNIT ASSY
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$0.85
You save $0.09
-15%
18
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
Supersedes: 92901-06600-00
In stock
5+ in stock
$2.51
You save $0.44
19
Yamaha Motors
BRACKET4DL-H5542-10
Required: 1
BRACKET
Price unavailable
-10%
$3.14
You save $0.35
-10%
21
Yamaha Motors
Obsolete Yamaha Part4KD-81940-00-00
Required: 1
STARTER RELAY ASSY
Supersedes: 3AY-81940-00-00
$113.39
You save $12.60
-20%
In stock
Only 1 remaining
$2.08
You save $0.52
23
Yamaha Motors
RECTIFIER & REGULATOR ASSY3BN-81960-01
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
24
Yamaha Motors
BOLT97382-06014
Required: 3
BOLT
Price unavailable
-15%
25
Yamaha Motors
Plate Washer92990-06600-00
Required: 3
WASHER, PLATE
Supersedes: 92901-06600-00
In stock
5+ in stock
$2.51
You save $0.44
26
Yamaha Motors
BRACKET4DL-H1948-10
Required: 1
BRACKET
Price unavailable
27
Yamaha Motors
RELAY, FLASHER4DL-H3351-00
Required: 1
RELAY, FLASHER
Price unavailable
28
Yamaha Motors
FLASHER RELAY ASSY4DL-H3350-00
Required: 1
FLASHER RELAY ASSY
Price unavailable
-10%
29
Yamaha Motors
Relay Assembly29U-81950-93-00
Required: 1
RELAY ASSY
Supersedes: 29U-81950-92-00
$76.49
You save $8.50
-10%
30
Yamaha Motors
Starter Relay1RL-81950-92-00
Required: 1
RELAY ASSY
Supersedes: 1RL-81950-91-00
No longer availableSearch Nationwide Inventory
$47.69
You save $5.30
-10%
31
Yamaha Motors
Side Stand Switch3LD-82566-50-00
Required: 1
SWITCH, SIDE STAND
Supersedes: 3MD-82566-00-00
No longer availableSearch Nationwide Inventory
$58.49
You save $6.50
-10%
32
Yamaha Motors
Pan Head Screw98507-05014-00
Required: 2
SCREW, PAN HEAD
Supersedes: 90157-05079-00
$8.54
You save $0.95
-10%
$103.49
You save $11.50
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
