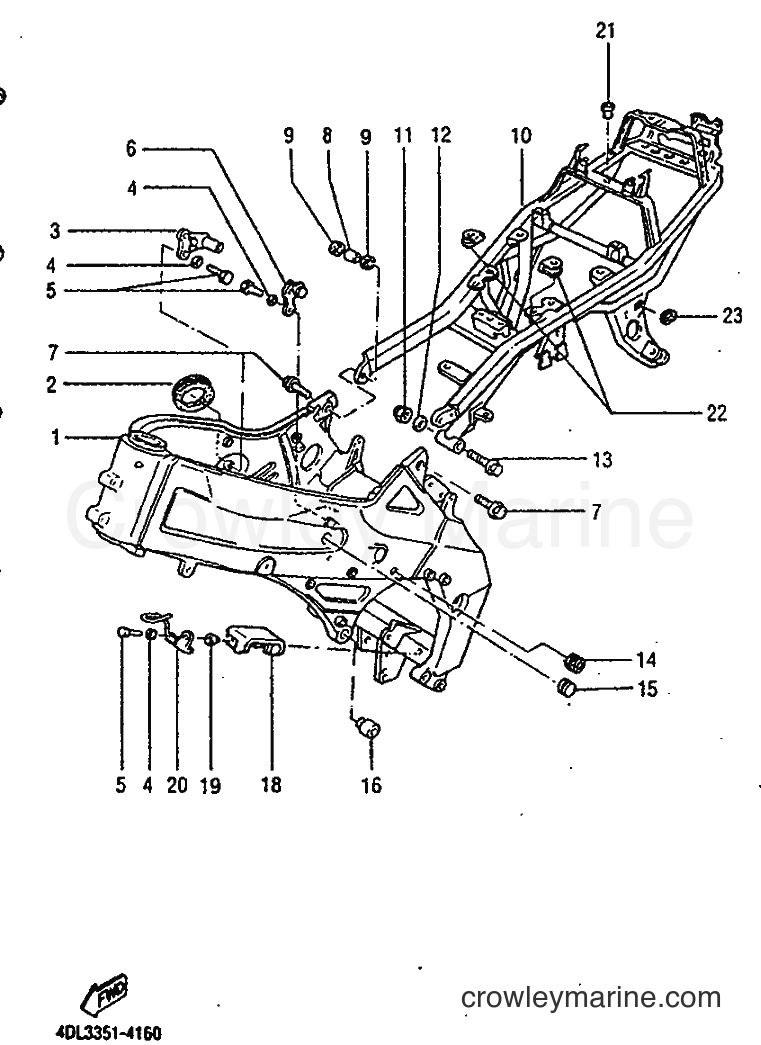

1994 Sport Bike TZR125 - TZR125 (4DL3) [999] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors TZR125 (4DL3) [999] - FRAME
Change View:
FRAME, COMPL.
1
Yamaha Motors
FRAME, COMPL.4DL-X1110-20-P0
Required: 1
FRAME, COMPL.
Price unavailable
BRACKET, AIR CLEANER 2
3
Yamaha Motors
BRACKET, AIR CLEANER 24DL-F1148-00
Required: 1
BRACKET, AIR CLEANER 2
Price unavailable
BOLT
5
Yamaha Motors
BOLT97382-06020
Required: 5
BOLT
Price unavailable
BRACKET, AIR CLEANER 1
6
Yamaha Motors
BRACKET, AIR CLEANER 14DL-F1147-00
Required: 1
BRACKET, AIR CLEANER 1
Price unavailable
COLLAR
8
Yamaha Motors
COLLAR90387-158H9
Required: 1
COLLAR
Price unavailable
GROMMET
9
Yamaha Motors
GROMMET90480-15847
Required: 1
GROMMET
Price unavailable
REAR FRAME COMP.
10
Yamaha Motors
REAR FRAME COMP.4DL-F1190-10-35
Required: 1
REAR FRAME COMP.
Price unavailable
-10%
NUT
11
Yamaha Motors
NUT95614-10100-00
Required: 1
NUT, U
Supersedes: 95611-10100-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-10%
Plain Washer
12
Yamaha Motors
Plain Washer90201-101J1-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Washer Based Bolt
13
Yamaha Motors
Washer Based Bolt90105-10609-00
Required: 1
BOLT, WASHER BASED
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
GROMMET
14
Yamaha Motors
GROMMET90480-12846
Required: 1
GROMMET
Price unavailable
-10%
PLUG (2GH)
15
Yamaha Motors
PLUG (2GH)90338-15202-00
Required: 2
PLUG
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
DAMPER 2
16
Yamaha Motors
DAMPER 290388-08003-00
Required: 2
DAMPER, ENGINE MOUNT 1
Supersedes: 328-15316-00-00
Cross Ship
Leaves in 2-5 days
$19.49
$17.54
You save $1.95
More details
PROTECTOR, CHAIN
18
Yamaha Motors
PROTECTOR, CHAIN3MA-22147-00
Required: 1
PROTECTOR, CHAIN
Price unavailable
-10%
COLLAR
19
Yamaha Motors
COLLAR90387-062M9-00
Required: 1
COLLAR
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
HOLDER, CLUTCH CABLE
20
Yamaha Motors
HOLDER, CLUTCH CABLE4DL-F1162-00
Required: 1
HOLDER, CLUTCH CABLE
Price unavailable
NUT
21
Yamaha Motors
NUT90179-04872
Required: 1
NUT
Price unavailable
NUT,PLATE
22
Yamaha Motors
NUT,PLATE2VW-F1736-00
Required: 2
NUT,PLATE
Price unavailable
GROMMET
23
Yamaha Motors
GROMMET90480-17850
Required: 2
GROMMET
Price unavailable
