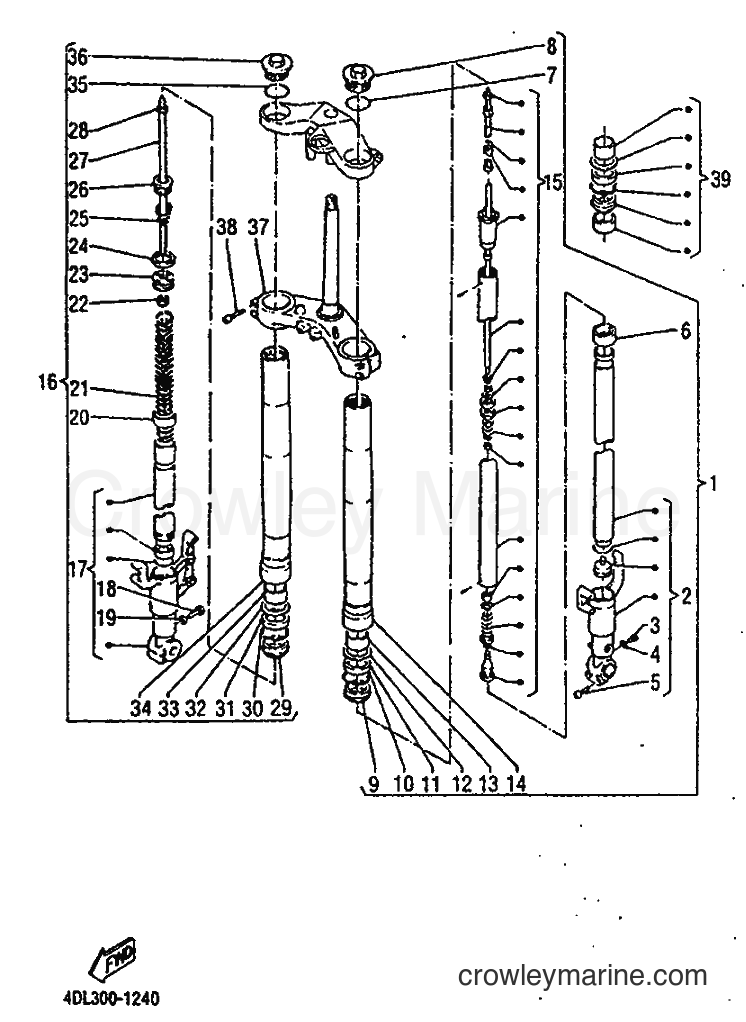

1994 Sport Bike TZR125 - TZR125 (4DL3) [999] FRONT FORK diagram
![Yamaha Motors TZR125 (4DL3) [999] - FRONT FORK](https://cdn.crowleymarine.com/yamaha/r1idHocr.png)
1
Yamaha Motors
FRONT FORK ASSY (L.H)4DL-F3102-00
Required: 1
FRONT FORK ASSY (L.H)
Price unavailable
2
Yamaha Motors
. INNER TUBE COMP.24DL-F3120-00
Required: 1
. INNER TUBE COMP.2
Price unavailable
3
Yamaha Motors
. BOLT97382-06016
Required: 1
. BOLT
Price unavailable
4
Yamaha Motors
. GASKET, DRAIN PLUG3HL-F3129-00
Required: 1
. GASKET, DRAIN PLUG
Price unavailable
-50%
In stock
Only 4 remaining
$4.75
You save $4.75
6
Yamaha Motors
. SPINDLE, TAPER3SH-F3173-00
Required: 1
. SPINDLE, TAPER
Price unavailable
7
Yamaha Motors
. O-RING4DL-F3147-00
Required: 1
. O-RING
Price unavailable
8
Yamaha Motors
. BOLT, CAP4DL-F3111-00
Required: 1
. BOLT, CAP
Price unavailable
9
Yamaha Motors
. SEAL, DUST3SH-F3144-00
Required: 1
. SEAL, DUST
Price unavailable
10
Yamaha Motors
. CLIP, OIL SEAL3NC-F3156-00
Required: 1
. CLIP, OIL SEAL
Price unavailable
11
Yamaha Motors
. OIL SEAL3NC-F3145-00
Required: 1
. OIL SEAL
Price unavailable
12
Yamaha Motors
. WASHER, OIL SEAL3NC-F3146-00
Required: 1
. WASHER, OIL SEAL
Price unavailable
13
Yamaha Motors
. METAL, SLIDE 13SH-F3125-00
Required: 1
. METAL, SLIDE 1
Price unavailable
14
Yamaha Motors
. TUBE, OUTER (RIGHT)4DL-F3136-00
Required: 1
. TUBE, OUTER (RIGHT)
Price unavailable
15
Yamaha Motors
. PLUNGER KIT4DL-F319K-01
Required: 1
. PLUNGER KIT
Price unavailable
16
Yamaha Motors
FRONT FORK ASSY (R.H)4DL-F3103-01
Required: 1
FRONT FORK ASSY (R.H)
Price unavailable
17
Yamaha Motors
. INNER TUBE COMP.14DL-F3110-01
Required: 1
. INNER TUBE COMP.1
Price unavailable
18
Yamaha Motors
BOLT97382-06016
Required: 1
BOLT
Price unavailable
19
Yamaha Motors
. GASKET, DRAIN PLUG3HL-F3129-00
Required: 1
. GASKET, DRAIN PLUG
Price unavailable
20
Yamaha Motors
. SPINDLE, TAPER3SH-F3173-00
Required: 1
. SPINDLE, TAPER
Price unavailable
21
Yamaha Motors
. SPRING, FRONT FORK4DL-F3141-00
Required: 1
. SPRING, FRONT FORK
Price unavailable
22
Yamaha Motors
Flange Nut95716-08300-00
Required: 1
. NUT, FLANGE
Supersedes: 95711-08300-00
No longer availableSearch Nationwide Inventory
$1.43
23
Yamaha Motors
. PISTON, FRONT FORK4DL-F3171-00
Required: 1
. PISTON, FRONT FORK
Price unavailable
24
Yamaha Motors
. RING, PISTON4DL-F3157-00
Required: 1
. RING, PISTON
Price unavailable
25
Yamaha Motors
. GUIDE, SPRING4DL-F3117-00
Required: 1
. GUIDE, SPRING
Price unavailable
26
Yamaha Motors
. PLUG4DL-F312G-00
Required: 1
. PLUG
Price unavailable
27
Yamaha Motors
. PLUNGER4DL-F318Y-00
Required: 1
. PLUNGER
Price unavailable
28
Yamaha Motors
. NUT, FLANGE95711-07300
Required: 1
. NUT, FLANGE
Price unavailable
29
Yamaha Motors
. SEAL, DUST3SH-F3144-00
Required: 1
. SEAL, DUST
Price unavailable
30
Yamaha Motors
. CLIP, OIL SEAL3NC-F3156-00
Required: 1
. CLIP, OIL SEAL
Price unavailable
31
Yamaha Motors
. OIL SEAL3NC-F3145-00
Required: 1
. OIL SEAL
Price unavailable
32
Yamaha Motors
. WASHER, OIL SEAL3NC-F3146-00
Required: 1
. WASHER, OIL SEAL
Price unavailable
33
Yamaha Motors
. METAL, SLIDE 13SH-F3125-00
Required: 1
. METAL, SLIDE 1
Price unavailable
34
Yamaha Motors
. TUBE, OUTER (RIGHT)4DL-F3136-00
Required: 1
. TUBE, OUTER (RIGHT)
Price unavailable
35
Yamaha Motors
. O-RING4DL-F3147-00
Required: 1
. O-RING
Price unavailable
36
Yamaha Motors
. BOLT, CAP4DL-F3111-00
Required: 1
. BOLT, CAP
Price unavailable
37
Yamaha Motors
UNDER BRACKET COMP.4DL-F3340-00
Required: 1
UNDER BRACKET COMP.
Price unavailable
-50%
In stock
Only 1 remaining
$1.35
You save $1.35
39
Yamaha Motors
GASKET4DL-F3114-00
Required: 1
GASKET
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
