1994 Sport Bike TZR125 - TZR125 (4DL3) [999] FRONT MASTER CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

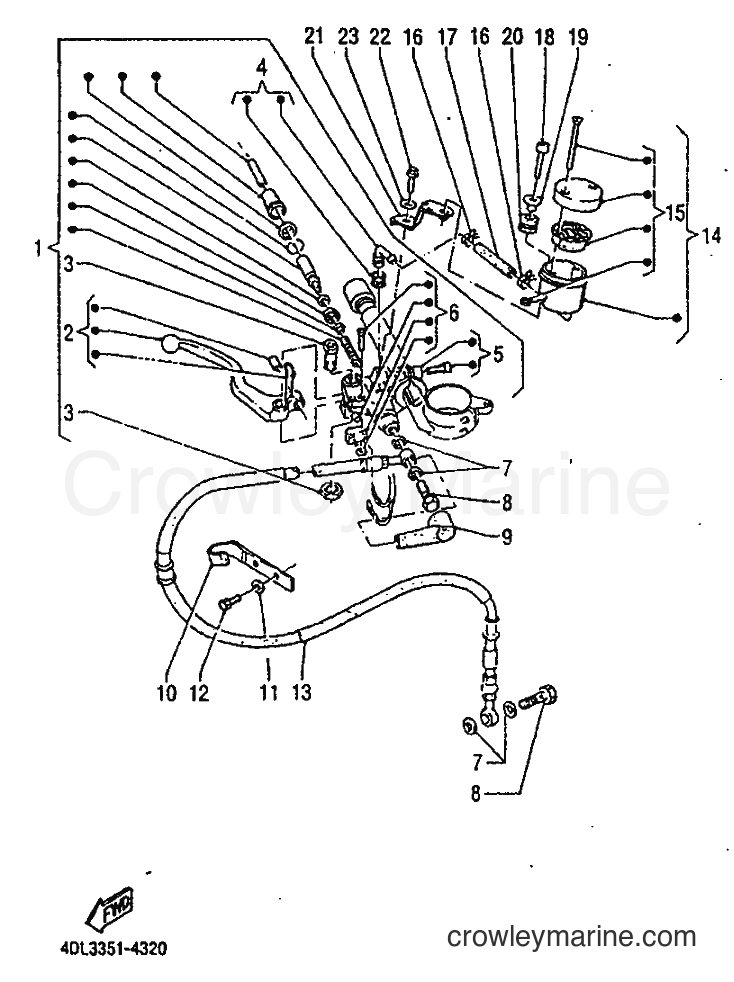

Yamaha Motors TZR125 (4DL3) [999] - FRONT MASTER CYLINDER
Change View:
MASTER CYLINDER ASSY
1
Yamaha Motors
MASTER CYLINDER ASSY4DL-F583T-10
Required: 1
MASTER CYLINDER ASSY
Price unavailable
. LEVER 2
2
Yamaha Motors
. LEVER 24DL-H3922-00
Required: 1
. LEVER 2
Price unavailable
. BOLT, NUT
3
Yamaha Motors
. BOLT, NUT3SH-F8200-20
Required: 1
. BOLT, NUT
Price unavailable
. JOINT
4
Yamaha Motors
. JOINT3SH-F582A-00
Required: 1
. JOINT
Price unavailable
. BRACKET, MASTER CYLINDER
5
Yamaha Motors
. BRACKET, MASTER CYLINDER4DL-F5867-00
Required: 1
. BRACKET, MASTER CYLINDER
Price unavailable
. FRONT STOP SWITCH ASSY
6
Yamaha Motors
. FRONT STOP SWITCH ASSY3SH-F399A-00
Required: 1
. FRONT STOP SWITCH ASSY
Price unavailable
WASHER, PLATE
7
Yamaha Motors
WASHER, PLATE90201-108E6
Required: 4
WASHER, PLATE
Price unavailable
-10%
Union Bolt (3GM)
8
Yamaha Motors
Union Bolt (3GM)90401-10159-00
Required: 2
BOLT, UNION
Supersedes: 90401-10096-00
Cross Ship
Leaves in 2-5 days
$12.49
$11.24
You save $1.25
More details
BOOT, MASTER CYLINDER
9
Yamaha Motors
BOOT, MASTER CYLINDER2VW-F5862-00
Required: 1
BOOT, MASTER CYLINDER
Price unavailable
HOLDER, BRAKE HOSE 2
10
Yamaha Motors
HOLDER, BRAKE HOSE 24DL-F5876-10
Required: 1
HOLDER, BRAKE HOSE 2
Price unavailable
BOLT
12
Yamaha Motors
BOLT97382-06014
Required: 2
BOLT
Price unavailable
HOSE, BRAKE 1
13
Yamaha Motors
HOSE, BRAKE 14DL-F5872-10
Required: 1
HOSE, BRAKE 1
Price unavailable
TANK, RESERVOIR
14
Yamaha Motors
TANK, RESERVOIR4DL-F5894-00
Required: 1
TANK, RESERVOIR
Price unavailable
. CAP, RESERVOIR
15
Yamaha Motors
. CAP, RESERVOIR4DL-F5852-00
Required: 1
. CAP, RESERVOIR
Price unavailable
CLIP
16
Yamaha Motors
CLIP90467-11834
Required: 2
CLIP
Price unavailable
HOSE
17
Yamaha Motors
HOSE4DL-F582F-00
Required: 1
HOSE
Price unavailable
COLLAR
19
Yamaha Motors
COLLAR90387-06001
Required: 1
COLLAR
Price unavailable
-10%
GROMMET, WATER TUBE (UPPER)
20
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-14023-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
HOLDER
21
Yamaha Motors
HOLDER4DL-F589G-00
Required: 1
HOLDER
Price unavailable
-10%
Plate Washer
23
Yamaha Motors
Plate Washer92907-06600-00
Required: 1
WASHER, PLATE
Supersedes: 92906-06600-00
Cross Ship
Leaves in 2-5 days
$1.00
$0.90
You save $0.10
More details
