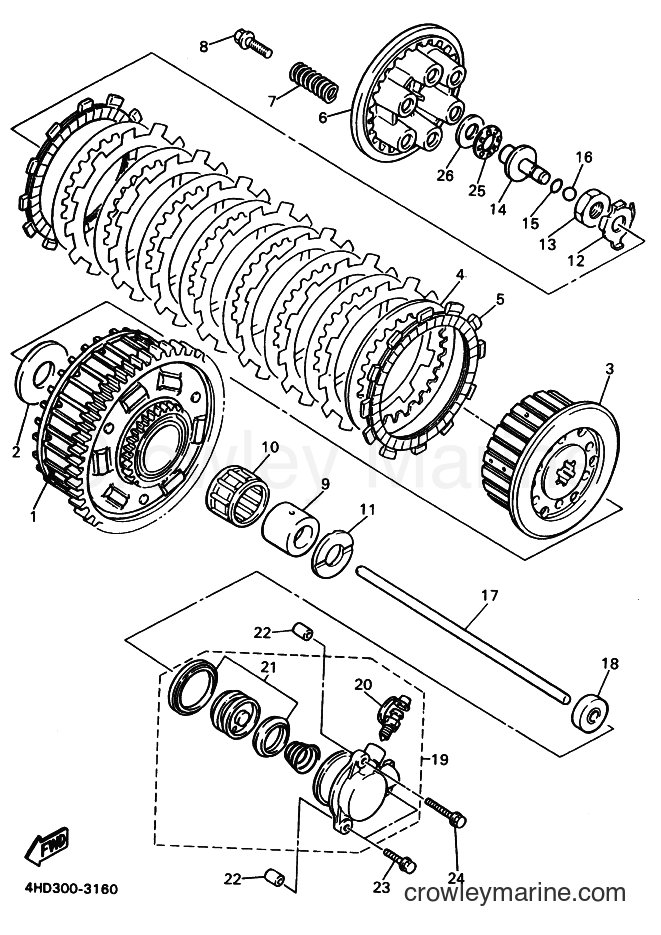

1993 Sport Bike YZF750SP - YZF750SP (4JA1) [010] CLUTCH diagram
![Yamaha Motors YZF750SP (4JA1) [010] - CLUTCH](https://cdn.crowleymarine.com/yamaha/WW9bhnq5.png)
-10%
1
Yamaha Motors
Primary Driven Gear4FM-16150-00-00
Required: 1
PRIMARY DRIVEN GEAR
No longer availableSearch Nationwide Inventory
$544.49
You save $60.50
-10%
2
Yamaha Motors
Thrust Plate1AE-16154-00-00
Required: 1
PLATE, THRUST 1
No longer availableSearch Nationwide Inventory
$43.19
You save $4.80
-10%
3
Yamaha Motors
CLUTCH BOSS2GH-16371-00-00
Required: 1
312 BOSS, CLUTCH
No longer availableSearch Nationwide Inventory
$134.99
You save $15.00
-10%
4
Yamaha Motors
CLUTCH PLATE3J2-16324-00-00
Required: 8
PLATE,METAL (TZ & SUPERBIKE)
$13.04
You save $1.45
-10%
5
Yamaha Motors
Friction Plate4FN-16321-00-00
Required: 9
PLATE, FRICTION
$28.79
You save $3.20
-10%
6
Yamaha Motors
PRESSURE PLATE 158L-16351-00-00
Required: 1
324 PLATE, PRESSURE 1
$44.99
You save $5.00
-10%
7
Yamaha Motors
Compression Spring90501-225A9-00
Required: 6
SPRING,COMPRESSION
$8.54
You save $0.95
-10%
8
Yamaha Motors
Screw With Washer90159-06123-00
Required: 6
SCREW, WITH WASHER
$9.44
You save $1.05
-10%
9
Yamaha Motors
COLLAR90387-25024-00
Required: 1
SPACER
Supersedes: 90560-25270-00
$35.09
You save $3.90
-10%
10
Yamaha Motors
BEARING,CYL.#1093310-340N8-00
Required: 1
BEARING, CYLINDRICAL
$45.89
You save $5.10
-10%
11
Yamaha Motors
Thrust Plate1AE-16164-00-00
Required: 1
PLATE, THRUST 2
$16.19
You save $1.80
-50%
12
Yamaha Motors
LOCK WASHER90215-20231-00
Required: 1
P97 WASHER, LOCK
In stock
Only 3 remaining
$1.83
You save $1.83
-10%
$18.89
You save $2.10
-10%
No longer availableSearch Nationwide Inventory
$81.89
You save $9.10
-15%
15
Yamaha Motors
O-Ring93210-06632-00
Required: 1
D10 O-RING (26H)
In stock
5+ in stock
$8.07
You save $1.42
-50%
In stock
Only 4 remaining
$4.75
You save $4.75
-10%
No longer availableSearch Nationwide Inventory
$30.59
You save $3.40
-10%
$7.64
You save $0.85
-10%
19
Yamaha Motors
1TV-16381-11-001TV-16381-10-00
Required: 1
PUSH LEVER COMP
No longer availableSearch Nationwide Inventory
$134.99
You save $15.00
-50%
20
Yamaha Motors
Bleed Screw Kit36Y-W0048-00-00
Required: 1
BLEED SCREW KIT
In stock
Only 1 remaining
$5.50
You save $5.50
-10%
21
Yamaha Motors
Push Lever Seal Kit26H-W0098-00-00
Required: 1
PUSH LEVER SEAL KIT
$54.89
You save $6.10
-10%
22
Yamaha Motors
Dowel Pin91808-12024-00
Required: 2
B88 PIN, DOWEL A P68 1081
Supersedes: 99510-08012-00
$4.09
You save $0.46
-10%
23
Yamaha Motors
Small Flange Bolt95027-06030-00
Required: 2
S/S BOLT, FLANGE (1FN)
Supersedes: 95026-06030-00
$3.87
You save $0.43
-10%
24
Yamaha Motors
Small Bolt Flange95027-06090-00
Required: 1
BOLT, FLANGE
Supersedes: 95026-06090-00
$2.52
You save $0.28
-10%
25
Yamaha Motors
Bearing93340-21505-00
Required: 1
BEARING, THRUST
$18.89
You save $2.10
-10%
26
Yamaha Motors
Plain Washer90201-150U6-00
Required: 1
WASHER, PLATE
Supersedes: 90201-150H2-00
$9.44
You save $1.05
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
