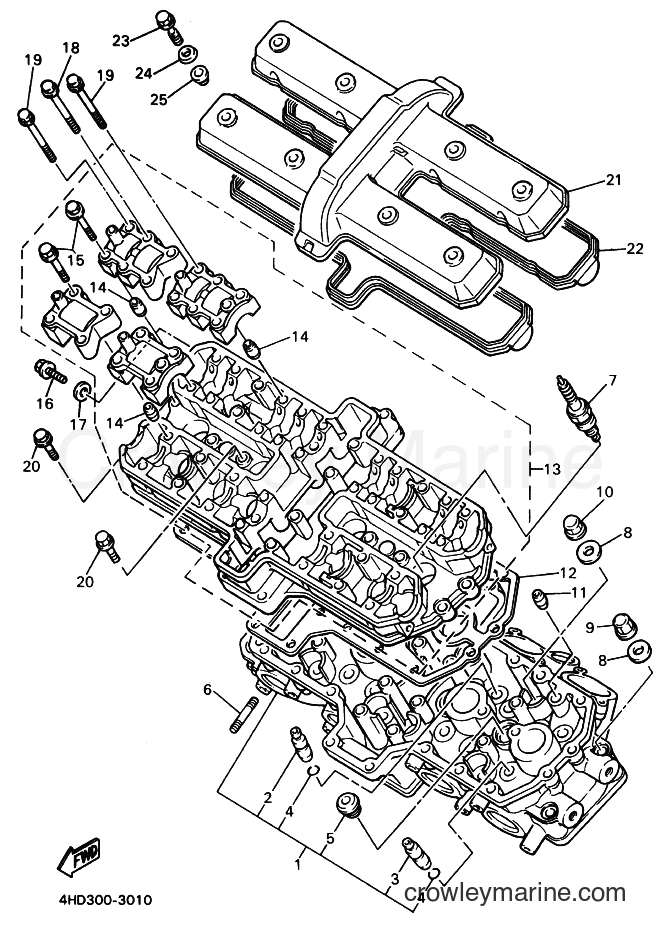

1994 Sport Bike YZF750SP - YZF750SP (4JA2) [010] CYLINDER HEAD diagram
![Yamaha Motors YZF750SP (4JA2) [010] - CYLINDER HEAD](https://cdn.crowleymarine.com/yamaha/jh8wc9yW.png)
-10%
1
Yamaha Motors
Cylinder Head Assembly4FM-11102-00-00
Required: 1
CYLINDER HEAD ASSY
No longer availableSearch Nationwide Inventory
$1190.69
You save $132.30
-10%
2
Yamaha Motors
INTAKE VALVE GUIDE (O/S)3GM-11133-10-00
Required: 12
GUIDE,INTAKE VALVE
No longer availableSearch Nationwide Inventory
$37.79
You save $4.20
-10%
3
Yamaha Motors
Exhaust Valve Guide O/S3GM-11134-10-00
Required: 8
GUIDE, EXHAUST VALVE
No longer availableSearch Nationwide Inventory
$75.59
You save $8.40
-10%
$2.34
You save $0.26
-10%
5
Yamaha Motors
Straight Screw Plug90340-18101-00
Required: 4
PLUG, STRAIGHT SCREW
$11.24
You save $1.25
6
Yamaha Motors
STUD BOLT 395617-08625-00
Required: 8
BOLT, STUD
Supersedes: 95611-08625-00
$3.60
-10%
7
Yamaha Motors
CR9E NGK SPLUG 10PCR9-E0000-00-00
Required: 4
NGK SPARK PLUG CR9E
Supersedes: 94701-00318-00
$9.44
You save $1.05
-10%
7
Yamaha Motors
CR9E NGK SPLUG 10PCR9-E0000-00-00
Required: 4
NIPPON DENSO SPK PLUG U27ESR-N
Supersedes: 94701-00319-00
$9.44
You save $1.05
-10%
8
Yamaha Motors
Plate Washer90201-103M4-00
Required: 12
WASHER, PLATE(3GM)
$2.43
You save $0.27
-50%
9
Yamaha Motors
Crown Nut90176-10075-00
Required: 4
NUT, CROWN
Supersedes: 90176-10049-00
In stock
Only 2 remaining
$4.75
You save $4.75
-10%
$18.89
You save $2.10
-10%
11
Yamaha Motors
Dowel Pin91810-25008-00
Required: 2
PIN, DOWEL A (70R)
$4.19
You save $0.46
-10%
12
Yamaha Motors
CYLINDER HEAD GASKET3FV-11182-00-00
Required: 1
GASKET, CYLINDER HEAD 2
$87.29
You save $9.70
-10%
13
Yamaha Motors
CAM CASE ASSEMBLY4FM-1115A-01-00
Required: 1
CAM CASE ASSY
Supersedes: 4FM-1115A-00-00
No longer availableSearch Nationwide Inventory
$1083.59
You save $120.40
-1%
14
Yamaha Motors
Dowel Pin99510-08016-00
Required: 16
PIN, DOWEL P82
No longer availableSearch Nationwide Inventory
$2.08
-10%
15
Yamaha Motors
Washer Based Bolt90105-06153-00
Required: 16
BOLT, WASHER BASED
No longer availableSearch Nationwide Inventory
$4.00
You save $0.45
-10%
16
Yamaha Motors
Flange Bolt95024-06012-00
Required: 1
BOLT, FLANGE
Supersedes: 95023-06012-00
$4.28
You save $0.47
-10%
17
Yamaha Motors
Gasket90430-06014-00
Required: 1
D95 GASKET P97
$8.09
You save $0.90
-10%
18
Yamaha Motors
Washer Based Bolt90105-06541-00
Required: 20
BOLT, WASHER BASED(3GM)
No longer availableSearch Nationwide Inventory
$0.77
You save $0.08
-10%
19
Yamaha Motors
Washer Based Bolt90105-06693-00
Required: 4
BOLT, WASHER BASED(
No longer availableSearch Nationwide Inventory
$1.76
You save $0.20
-50%
20
Yamaha Motors
Flange Small Head Bolt95024-06025-00
Required: 11
B88 BOLT, FLANGE (46X)
Supersedes: 95023-06025-00
In stock
Only 3 remaining
$1.23
You save $1.23
-10%
21
Yamaha Motors
Cylinder Head Cover3GM-11191-01-00
Required: 1
COVER, CYLINDER HEA
No longer availableSearch Nationwide Inventory
$300.59
You save $33.40
-10%
22
Yamaha Motors
GASKET, HEAD COVER 14SV-11193-01-00
Required: 1
GASKET, HEAD COVER 1
Supersedes: 3GM-11193-00-00
$53.09
You save $5.90
-10%
$16.64
You save $1.85
-10%
24
Yamaha Motors
Special Shape Washer90209-11262-00
Required: 8
P97 WASHER (46X)
$9.44
You save $1.05
-10%
25
Yamaha Motors
MOUNT RUBBER2GH-1111G-00-00
Required: 8
P97 RUBBER, MOUNT 1
$8.54
You save $0.95
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
