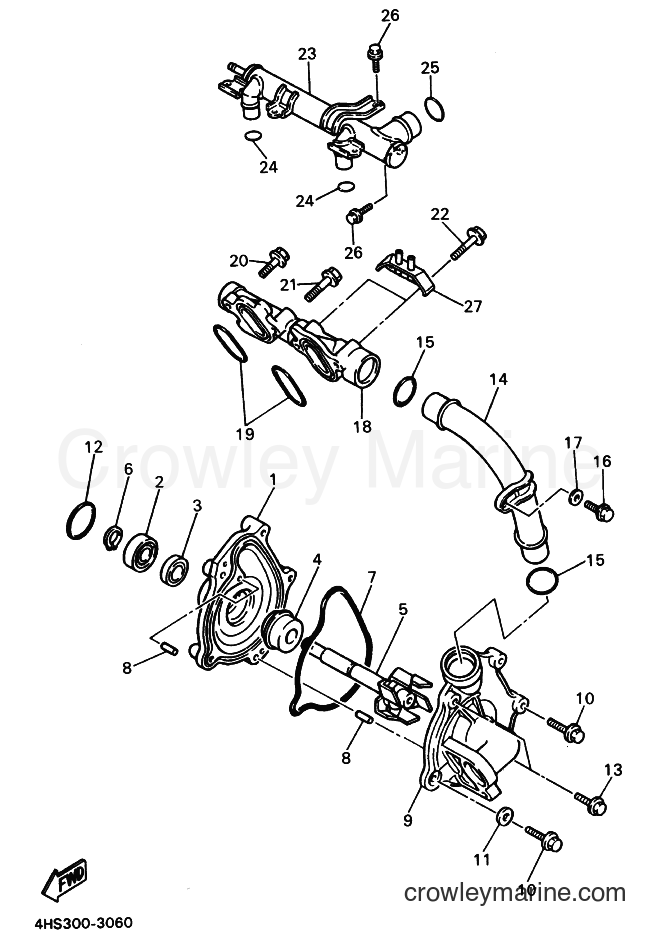

1996 Sport Bike YZF750SP - YZF750SP (4JA4) [010] WATER PUMP diagram
![Yamaha Motors YZF750SP (4JA4) [010] - WATER PUMP](https://cdn.crowleymarine.com/yamaha/M5xS56jN.png)
-10%
1
Yamaha Motors
Water Pump Housing1UF-12421-09-00
Required: 1
HOUSING WATER PUMP
No longer availableSearch Nationwide Inventory
$154.79
You save $17.20
-10%
2
Yamaha Motors
BEARING93306-00105-00
Required: 1
BEARING
Supersedes: 93306-00106-00
$30.59
You save $3.40
-50%
3
Yamaha Motors
S-TYPE OIL SEAL93101-12173-00
Required: 1
OIL SEAL (12X21X4-401)
Supersedes: 93101-12060-00
In stock
Only 1 remaining
$7.24
You save $7.24
-10%
4
Yamaha Motors
Mechanical Seal11H-12438-10-00
Required: 1
SEAL, MECHANICAL
Supersedes: 11H-12438-00-00
$62.09
You save $6.90
-10%
5
Yamaha Motors
Impeller Shaft Assembly1UF-12450-00-00
Required: 1
IMPELLER SHAFT ASSY
No longer availableSearch Nationwide Inventory
$109.79
You save $12.20
-10%
6
Yamaha Motors
Circlip99009-12400-00
Required: 1
P66 CIRCLIP (10Y)
$3.23
You save $0.36
-10%
$28.79
You save $3.20
-10%
8
Yamaha Motors
Dowel Pin93604-10011-00
Required: 2
P47 PIN, DOWEL (603)
$7.64
You save $0.85
-10%
9
Yamaha Motors
Housing Cover3GM-12422-00-00
Required: 1
COVER, HOUSING
No longer availableSearch Nationwide Inventory
$133.19
You save $14.80
-50%
10
Yamaha Motors
Flange Small Head Bolt95024-06025-00
Required: 3
B88 BOLT, FLANGE (46X)
Supersedes: 95023-06025-00
In stock
Only 3 remaining
$1.23
You save $1.23
-10%
11
Yamaha Motors
Gasket90430-06014-00
Required: 1
D95 GASKET P97
$8.09
You save $0.90
-10%
$3.42
You save $0.38
-10%
$2.48
You save $0.27
-10%
No longer availableSearch Nationwide Inventory
$40.49
You save $4.50
-10%
$8.54
You save $0.95
-10%
16
Yamaha Motors
Flange Bolt95024-06012-00
Required: 1
BOLT, FLANGE
Supersedes: 95023-06012-00
$4.28
You save $0.47
-10%
17
Yamaha Motors
Plate Washer92907-06600-00
Required: 1
P66 WASHER, PLATE
Supersedes: 92906-06600-00
$0.90
You save $0.10
-10%
No longer availableSearch Nationwide Inventory
$476.99
You save $53.00
-10%
19
Yamaha Motors
O-Ring93210-30694-00
Required: 2
O-RING (1AA)
$7.64
You save $0.85
-10%
20
Yamaha Motors
Flange Bolt95024-06020-00
Required: 1
BOLT, FLANGE (54V)
Supersedes: 95023-06020-00
$5.84
You save $0.65
-10%
$8.54
You save $0.95
-10%
22
Yamaha Motors
Flange Bolt95024-06040-00
Required: 2
P66 BOLT, FLANGE
Supersedes: 95023-06040-00
$9.44
You save $1.05
-10%
No longer availableSearch Nationwide Inventory
$458.09
You save $50.90
-10%
$7.64
You save $0.85
-10%
$8.54
You save $0.95
-10%
$4.50
You save $0.50
-10%
No longer availableSearch Nationwide Inventory
$49.49
You save $5.50
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
