1995 Sport Bike TZR125 - TZR125 (4FL4) [999] INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

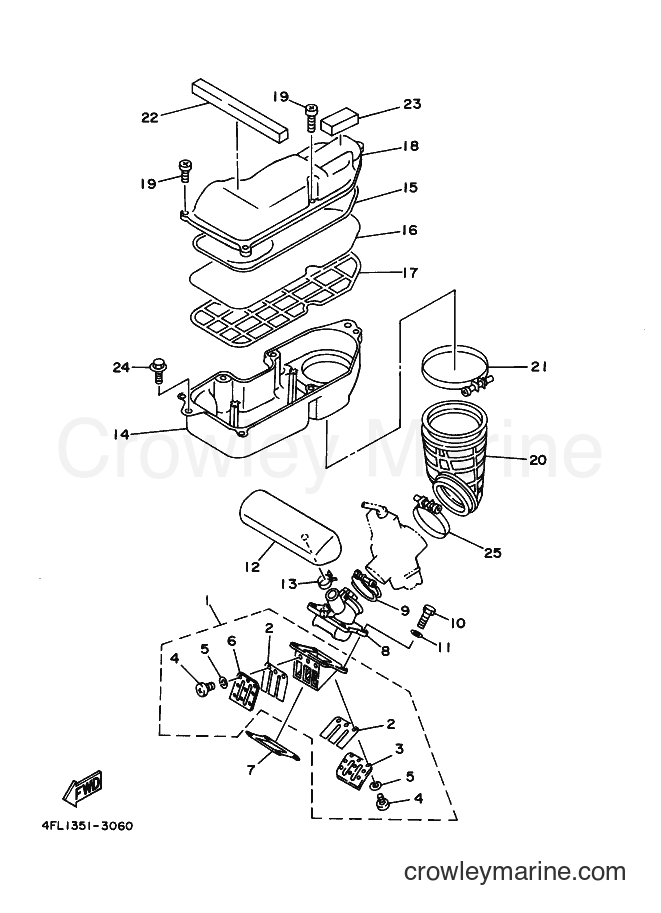

Yamaha Motors TZR125 (4FL4) [999] - INTAKE
Change View:
REED VALVE ASSY
1
Yamaha Motors
REED VALVE ASSY4FL-13610-00
Required: 1
REED VALVE ASSY
Price unavailable
. REED, VALVE
2
Yamaha Motors
. REED, VALVE4FL-13613-00
Required: 2
. REED, VALVE
Price unavailable
. STOPPER, REED VALVE
3
Yamaha Motors
. STOPPER, REED VALVE3BN-13616-00
Required: 1
. STOPPER, REED VALVE
Price unavailable
-10%
PAN SCREW
4
Yamaha Motors
PAN SCREW98517-03008-00
Required: 6
. SCREW, PAN HEAD
Supersedes: 98507-03008-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.88
You save $0.32
More details
-10%
Spring Washer
5
Yamaha Motors
Spring Washer92990-03100-00
Required: 6
. WASHER, SPRING
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
. STOPPER, REED VALVE
6
Yamaha Motors
. STOPPER, REED VALVE3MB-13616-00
Required: 1
. STOPPER, REED VALVE
Price unavailable
GASKET, VALVE SEAT
7
Yamaha Motors
GASKET, VALVE SEAT1KT-13621-01
Required: 1
GASKET, VALVE SEAT
Price unavailable
JOINT, CARBURETOR
8
Yamaha Motors
JOINT, CARBURETOR4FL-13565-00
Required: 1
JOINT, CARBURETOR
Price unavailable
-10%
Hose Clamp Assembly
9
Yamaha Motors
Hose Clamp Assembly90450-44046-00
Required: 1
HOSE CLAMP ASSY
Cross Ship
Leaves in 2-5 days
$18.49
$16.64
You save $1.85
More details
-10%
Bolt
10
Yamaha Motors
Bolt97017-06025-00
Required: 4
BOLT
Supersedes: 97007-06025-00
Cross Ship
Leaves in 2-5 days
$4.55
$4.09
You save $0.46
More details
-10%
Plate Washer
11
Yamaha Motors
Plate Washer92907-06600-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$1.00
$0.90
You save $0.10
More details
CHAMBER, AIR
12
Yamaha Motors
CHAMBER, AIR4FL-13581-00
Required: 1
CHAMBER, AIR
Price unavailable
-10%
Scissor Clip
13
Yamaha Motors
Scissor Clip90467-20050-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$5.49
$4.94
You save $0.55
More details
CASE, AIR CLEANER 1
14
Yamaha Motors
CASE, AIR CLEANER 13XV-14411-00
Required: 1
CASE, AIR CLEANER 1
Price unavailable
-10%
Shift Bracket Seal
15
Yamaha Motors
Shift Bracket Seal1VJ-14462-00-00
Required: 1
SEAL
Supersedes: 3XV-14462-00-00
Cross Ship
Leaves in 2-5 days
$19.99
$17.99
You save $2.00
More details
ELEMENT, AIR CLEANER
16
Yamaha Motors
ELEMENT, AIR CLEANER3XV-14451-00
Required: 1
ELEMENT, AIR CLEANER
Price unavailable
PLATE, ELEMENT
17
Yamaha Motors
PLATE, ELEMENT3XV-14472-00
Required: 1
PLATE, ELEMENT
Price unavailable
CAP, CLEANER CASE 1
18
Yamaha Motors
CAP, CLEANER CASE 13XV-14412-01
Required: 1
CAP, CLEANER CASE 1
Price unavailable
-10%
Truss Screw
19
Yamaha Motors
Truss Screw97707-50525-00
Required: 6
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
JOINT, AIR CLEANER 1
20
Yamaha Motors
JOINT, AIR CLEANER 14FL-14453-00
Required: 1
JOINT, AIR CLEANER 1
Price unavailable
HOSE CLAMP ASSY
21
Yamaha Motors
HOSE CLAMP ASSY90450-99056
Required: 1
HOSE CLAMP ASSY
Price unavailable
SEAL
22
Yamaha Motors
SEAL2YK-14462-00
Required: 1
SEAL
Price unavailable
SEAL
23
Yamaha Motors
SEAL3KM-14462-00
Required: 1
SEAL
Price unavailable
-10%
Hose Clamp Assembly
25
Yamaha Motors
Hose Clamp Assembly90450-53005-00
Required: 1
BAND
Supersedes: 1AE-13575-01-00
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
