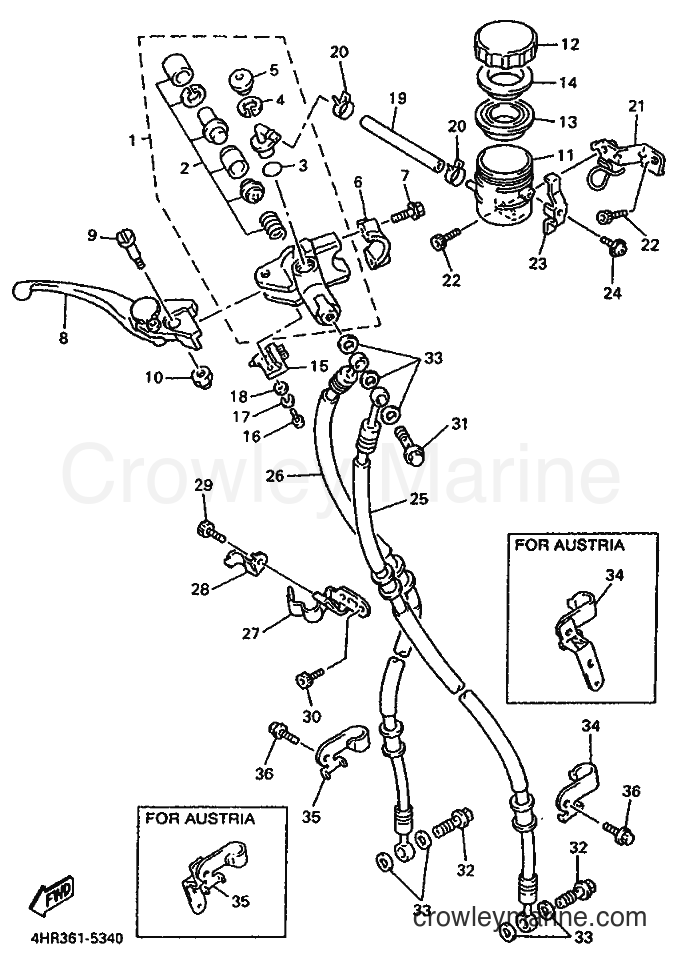

1996 Sport Bike YZF750R - YZF750R (4HR4) [020] FRONT MASTER CYLINDER diagram
![Yamaha Motors YZF750R (4HR4) [020] - FRONT MASTER CYLINDER](https://cdn.crowleymarine.com/yamaha/8W377VB4.png)
-10%
1
Yamaha Motors
Master Cylinder Sub Assembly3GM-W2587-50-00
Required: 1
MASTER CYLINDER SUB ASSY
No longer availableSearch Nationwide Inventory
$192.59
You save $21.40
-10%
2
Yamaha Motors
Master Cylinder Kit3GM-W0041-50-00
Required: 1
. CYLINDER KIT, MASTER
No longer availableSearch Nationwide Inventory
$58.49
You save $6.50
-50%
3
Yamaha Motors
O-Ring93210-15566-00
Required: 1
. O-RING
Supersedes: 93210-15620-00
In stock
5+ in stock
$4.25
You save $4.25
-10%
$6.74
You save $0.75
-10%
5
Yamaha Motors
Dust Cover3FV-2589A-00-00
Required: 1
. COVER, DUST
$20.69
You save $2.30
-10%
6
Yamaha Motors
Master Cylinder Bracket56A-25867-00-00
Required: 1
BRACKET, MASTER CYLINDER
$28.79
You save $3.20
-20%
In stock
Only 1 remaining
$3.33
You save $0.83
-10%
No longer availableSearch Nationwide Inventory
$57.59
You save $6.40
-10%
$16.19
You save $1.80
10
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95607-06100-00
$3.60
11
Yamaha Motors
TANK, RESERVOIR3FV-25894-50
Required: 1
TANK, RESERVOIR
Price unavailable
-10%
12
Yamaha Motors
Reservoir Cap3GM-25852-50-00
Required: 1
CAP, RESERVOIR
$29.69
You save $3.30
-10%
13
Yamaha Motors
DIAPHRAGM RESERVOR3FV-25854-00-00
Required: 1
DIAPHRAGM, RESERVOIR
$27.89
You save $3.10
-10%
14
Yamaha Motors
DIAPHRAGM BUSH2J2-25855-50-00
Required: 1
BUSH,DIAPHRAGM
$5.39
You save $0.60
-10%
15
Yamaha Motors
FRONT STOP SWITCH ASSEMBLY4HM-83980-00-00
Required: 1
FRONT STOP SWITCH ASSY
Supersedes: 3FV-83980-00-00
$41.39
You save $4.60
-10%
16
Yamaha Motors
Screw98517-04012-00
Required: 1
SCREW, PAN HEAD
$3.78
You save $0.42
-15%
17
Yamaha Motors
Spring Washer92990-04100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$0.81
You save $0.14
-50%
18
Yamaha Motors
Plate Washer92990-04600-00
Required: 1
WASHER, PLATE
Supersedes: 92901-04600-00
In stock
Only 1 remaining
$0.49
You save $0.49
-10%
No longer availableSearch Nationwide Inventory
$27.89
You save $3.10
-10%
$7.64
You save $0.85
-10%
No longer availableSearch Nationwide Inventory
$22.49
You save $2.50
-10%
$8.54
You save $0.95
-10%
$35.99
You save $4.00
-10%
$7.64
You save $0.85
-10%
25
Yamaha Motors
Brake Hose4FM-25872-02-00
Required: 1
HOSE, BRAKE 1
No longer availableSearch Nationwide Inventory
$85.49
You save $9.50
-10%
No longer availableSearch Nationwide Inventory
$99.89
You save $11.10
-10%
No longer availableSearch Nationwide Inventory
$44.99
You save $5.00
-10%
No longer availableSearch Nationwide Inventory
$21.59
You save $2.40
-10%
$9.44
You save $1.05
-10%
$8.54
You save $0.95
-10%
31
Yamaha Motors
Union Bolt90401-10038-00
Required: 1
BOLT, UNION
Supersedes: 90401-10160-00
$12.14
You save $1.35
-10%
$11.24
You save $1.25
-20%
33
Yamaha Motors
Plate Washer90201-10118-00
Required: 7
WASHER, PLATE
In stock
Only 5 remaining
$3.04
You save $0.76
-10%
34
Yamaha Motors
BRAKE HOSE HOLDER3LK-25875-52-00
Required: 1
HOLDER, BRAKE HOSE 1
$22.49
You save $2.50
-10%
34
Yamaha Motors
Brake Hose Holder 23MA-25876-12-00
Required: 1
HOLDER, BRAKE HOSE 2
No longer availableSearch Nationwide Inventory
$3.38
You save $0.38
-10%
35
Yamaha Motors
Brake Hose Holder 23MA-25876-22-00
Required: 1
HOLDER, BRAKE HOSE 2
No longer availableSearch Nationwide Inventory
$3.74
You save $0.42
-10%
35
Yamaha Motors
BRAKE HOSE HOLDER3LK-25876-52-00
Required: 1
HOLDER, BRAKE HOSE 2
No longer availableSearch Nationwide Inventory
$25.19
You save $2.80
-10%
36
Yamaha Motors
Flange Bolt95812-06012-00
Required: 2
BOLT, FLANGE
Supersedes: 95817-06012-00
$1.04
You save $0.11
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
