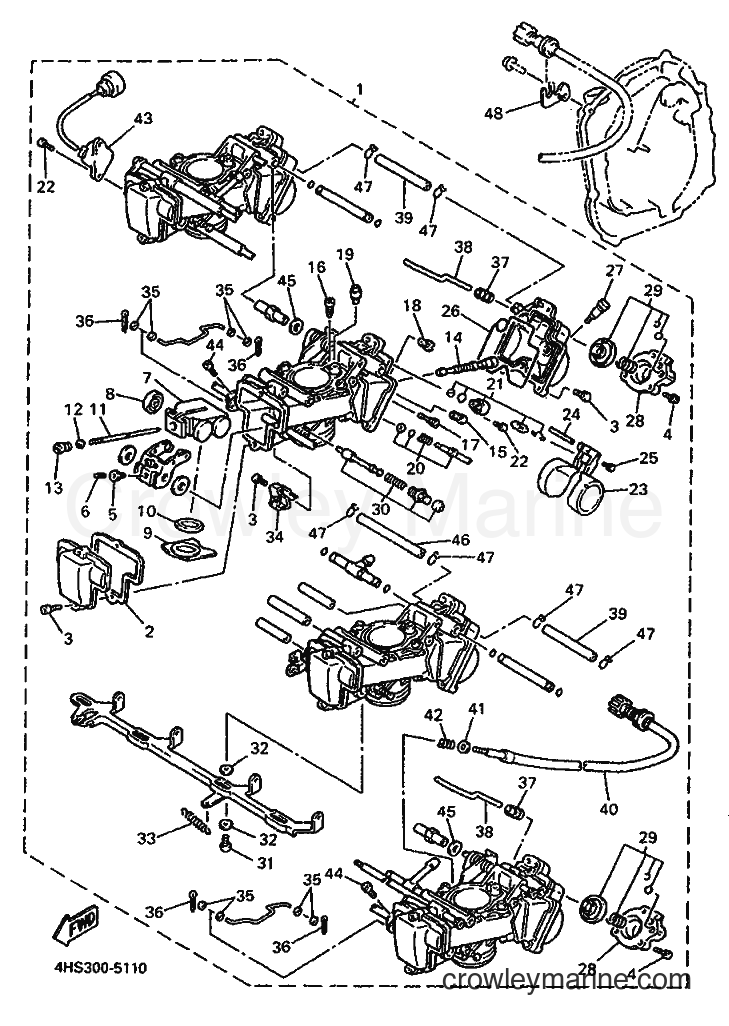

1996 Sport Bike YZF750SP - YZF750SP (4HT4) [010] CARBURETOR diagram
![Yamaha Motors YZF750SP (4HT4) [010] - CARBURETOR](https://cdn.crowleymarine.com/yamaha/E19kZMzl.png)
1
Yamaha Motors
CARBURETOR ASSY4HT-14900-10
Required: 1
CARBURETOR ASSY
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$20.69
You save $2.30
-10%
3
Yamaha Motors
BOLT91317-04012-00
Required: 20
. BOLT
Supersedes: 91316-04012-00
$8.54
You save $0.95
-10%
4
Yamaha Motors
BOLT91317-04008-00
Required: 6
. BOLT
Supersedes: 91316-04008-00
$8.54
You save $0.95
5
Yamaha Motors
. NUT, CROWN3TJ-14393-00
Required: 4
. NUT, CROWN
Price unavailable
6
Yamaha Motors
. SCREW, ADJUST3TJ-14522-00
Required: 4
. SCREW, ADJUST
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$476.99
You save $53.00
8
Yamaha Motors
. ROLLER3TJ-14267-00
Required: 4
. ROLLER
Price unavailable
-10%
9
Yamaha Motors
Float Valve4FN-14546-01-00
Required: 4
. VALVE, NEEDLE
Supersedes: 4FN-14546-00-00
No longer availableSearch Nationwide Inventory
$214.19
You save $23.80
-10%
$26.09
You save $2.90
11
Yamaha Motors
. JET NEEDLE COMP.4HT-14916-00
Required: 4
. JET NEEDLE COMP.
Price unavailable
-10%
$8.54
You save $0.95
13
Yamaha Motors
. SCREW, ADJUST3TJ-14521-00
Required: 4
. SCREW, ADJUST
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$17.42
You save $1.93
15
Yamaha Motors
. JET, MAIN (#128)3TJ-14943-83
Required: 2
. JET, MAIN (#128)
Price unavailable
-10%
15
Yamaha Motors
Main Jet3TJ-14943-32-00
Required: 2
. JET, MAIN (#125)
No longer availableSearch Nationwide Inventory
$8.54
You save $0.95
-10%
16
Yamaha Motors
Main Jet3TJ-14943-15-00
Required: 1
. JET, MAIN (#70)
No longer availableSearch Nationwide Inventory
$6.54
You save $0.73
-10%
No longer availableSearch Nationwide Inventory
$8.99
You save $1.00
-10%
$14.84
You save $1.65
-10%
19
Yamaha Motors
Main Jet7A9-14943-31-00
Required: 4
. JET, MAIN (#120)
No longer availableSearch Nationwide Inventory
$4.43
You save $0.49
-10%
20
Yamaha Motors
Pilot Screw Set4FN-14105-00-00
Required: 4
. PILOT SCREW SET
No longer availableSearch Nationwide Inventory
$13.80
You save $1.53
-10%
21
Yamaha Motors
Needle Valve Set4FN-14107-00-00
Required: 4
. NEEDLE VALVE SET
No longer availableSearch Nationwide Inventory
$27.02
You save $3.00
22
Yamaha Motors
. SCREW3TJ-14216-00
Required: 6
. SCREW
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$61.19
You save $6.80
-10%
24
Yamaha Motors
Float Arm Pin663-14548-00-00
Required: 4
. PIN, FLOAT ARM
$5.39
You save $0.60
-10%
25
Yamaha Motors
Screw98580-04008-00
Required: 4
. SCREW, PAN HEAD
$5.84
You save $0.65
26
Yamaha Motors
. GASKET, FLOAT CHAMBER3TJ-14984-00
Required: 4
. GASKET, FLOAT CHAMBER
Price unavailable
-10%
27
Yamaha Motors
Drain Plug3TJ-14191-40-00
Required: 4
. PLUG, DRAIN
$20.69
You save $2.30
-10%
$66.59
You save $7.40
-10%
29
Yamaha Motors
DIAPRAGHM SET3TJ-1490A-40-00
Required: 2
. DIAPHRAGM SET 1
No longer availableSearch Nationwide Inventory
$39.59
You save $4.40
-10%
30
Yamaha Motors
Starter Set3TJ-1410A-40-00
Required: 4
. STARTER SET
No longer availableSearch Nationwide Inventory
$53.99
You save $6.00
31
Yamaha Motors
. SCREW, GUIDE3TJ-14245-00
Required: 3
. SCREW, GUIDE
Price unavailable
-10%
32
Yamaha Motors
Plate Washer90202-06056-00
Required: 6
. WASHER, PLATE
In stock
Only 1 remaining
$7.64
You save $0.85
33
Yamaha Motors
. SPRING3TJ-14938-00
Required: 1
. SPRING
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$106.19
You save $11.80
-10%
35
Yamaha Motors
Plain Washer90202-03052-00
Required: 8
. WASHER, PLATE
No longer availableSearch Nationwide Inventory
$3.29
You save $0.36
-10%
36
Yamaha Motors
CLEVIS PIN3TJ-14365-40-00
Required: 4
. PIN, CLEVIS
No longer availableSearch Nationwide Inventory
$6.65
You save $0.74
37
Yamaha Motors
. CAP3TJ-14968-00
Required: 2
. CAP
Price unavailable
38
Yamaha Motors
. ROD, STARTER3TJ-14379-00
Required: 2
. ROD, STARTER
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$4.94
You save $0.55
40
Yamaha Motors
. SCREW, THROTTLE4HS-14922-00
Required: 1
. SCREW, THROTTLE
Price unavailable
-10%
41
Yamaha Motors
Plate Washer90201-08410-00
Required: 1
. WASHER, PLATE
$10.34
You save $1.15
-10%
42
Yamaha Motors
THROTTLE STOP SPRING4FN-14934-00-00
Required: 1
. SPRING, THROTTLE STOP
No longer availableSearch Nationwide Inventory
$2.88
You save $0.32
-10%
43
Yamaha Motors
THROTTLE SENSOR ASSEMBLY4FN-85885-00-00
Required: 1
. THROTTLE SENSOR ASSY
No longer availableSearch Nationwide Inventory
$409.49
You save $45.50
-10%
44
Yamaha Motors
Pan Head Screw3TJ-14325-40-00
Required: 2
. SCREW, PAN HEAD
No longer availableSearch Nationwide Inventory
$12.14
You save $1.35
45
Yamaha Motors
. WASHER, SPRING90204-08333
Required: 2
. WASHER, SPRING
Price unavailable
46
Yamaha Motors
. PIPE4FN-14298-00
Required: 1
. PIPE
Price unavailable
47
Yamaha Motors
. CLIP3TJ-14137-00
Required: 6
. CLIP
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$15.74
You save $1.75
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
