1997 Sport Bike TZR125 - TZR125 (4FL4) [010] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

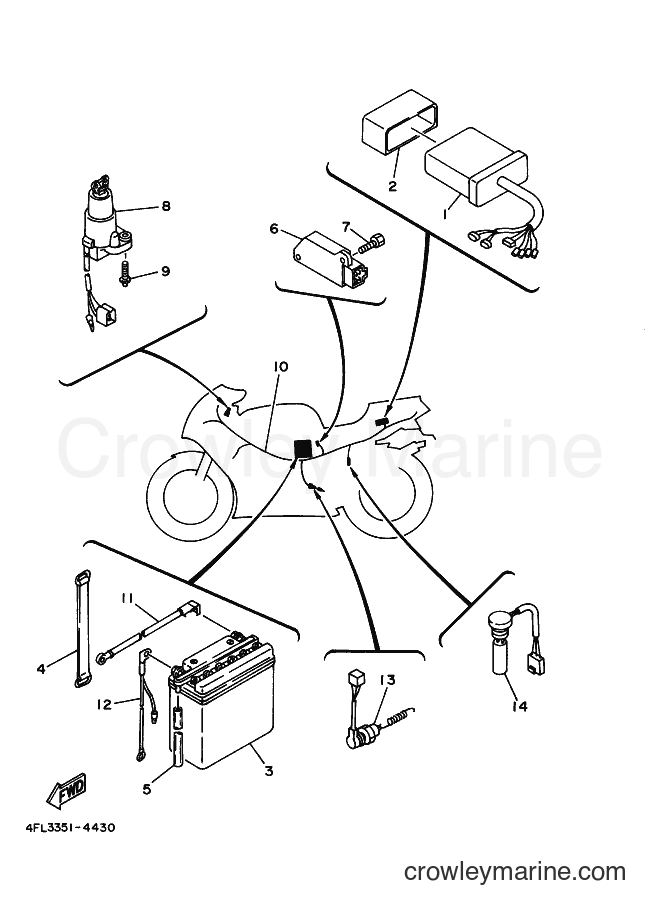

Yamaha Motors TZR125 (4FL4) [010] - ELECTRICAL 1
Change View:
C.D.I. UNIT ASSY
1
Yamaha Motors
C.D.I. UNIT ASSY4FL-85540-10
Required: 1
C.D.I. UNIT ASSY
Price unavailable
BAND
2
Yamaha Motors
BAND4FL-85546-00
Required: 1
BAND
Price unavailable
BATTERY ASSY
3
Yamaha Motors
BATTERY ASSY3MB-82110-00
Required: 1
BATTERY ASSY
Price unavailable
-10%
Rectifier & Regulator Assembly
6
Yamaha Motors
Rectifier & Regulator Assembly47X-81960-A3-00
Required: 1
RECTIFIER & REGULATOR ASSY
Cross Ship
Leaves in 2-5 days
$206.99
$186.29
You save $20.70
More details
Bolt
7
Yamaha Motors
Bolt91317-06020-00
Required: 2
BOLT,HEX.SOCKET HEAD
Cross Ship
Leaves in 2-5 days
$4.23
More details
MAIN SWITCH STEERING LOCK
8
Yamaha Motors
MAIN SWITCH STEERING LOCK4FL-82501-00
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
-10%
Bolt (4FM)
9
Yamaha Motors
Bolt (4FM)90109-06282-00
Required: 2
BOLT
Supersedes: 90109-060G4-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.94
You save $0.55
More details
WIRE HARNESS ASSY
10
Yamaha Motors
WIRE HARNESS ASSY4FL-82590-20
Required: 1
WIRE HARNESS ASSY
Price unavailable
WIRE, PLUS LEAD
11
Yamaha Motors
WIRE, PLUS LEAD4FL-82115-00
Required: 1
WIRE, PLUS LEAD
Price unavailable
WIRE, MINUS LEAD
12
Yamaha Motors
WIRE, MINUS LEAD3MB-82116-00
Required: 1
WIRE, MINUS LEAD
Price unavailable
OIL LEVEL GAUGE ASSY
14
Yamaha Motors
OIL LEVEL GAUGE ASSY3XV-85720-01
Required: 1
OIL LEVEL GAUGE ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
