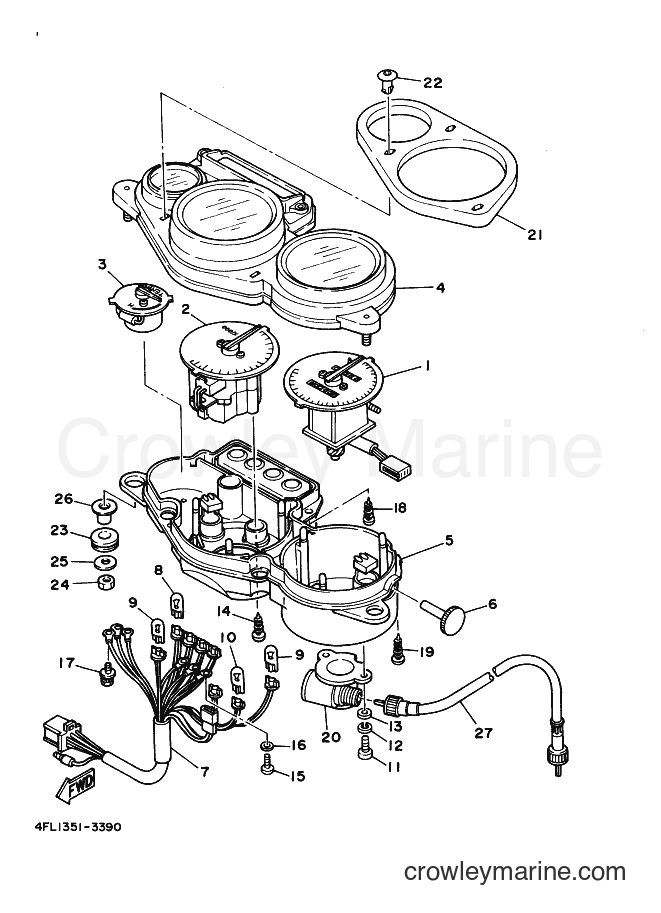

1997 Sport Bike TZR125 - TZR125 (4FL4) [010] METER diagram
![Yamaha Motors TZR125 (4FL4) [010] - METER](https://cdn.crowleymarine.com/yamaha/Xv2PjVap.png)
1
Yamaha Motors
SPEEDOMETER ASSY4FL-83570-00
Required: 1
SPEEDOMETER ASSY
Price unavailable
2
Yamaha Motors
TACHOMETER ASSY3XV-83540-00
Required: 1
TACHOMETER ASSY
Price unavailable
3
Yamaha Motors
WATER TEMPERATURE ASSY3XV-83590-00
Required: 1
WATER TEMPERATURE ASSY
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$128.69
You save $14.30
-10%
No longer availableSearch Nationwide Inventory
$67.49
You save $7.50
-10%
6
Yamaha Motors
Trip Meter Knob2GH-83578-00-00
Required: 1
KNOB, TRIP METER
No longer availableSearch Nationwide Inventory
$13.49
You save $1.50
7
Yamaha Motors
SOCKET CORD ASSY4FL-83509-00
Required: 1
SOCKET CORD ASSY
Price unavailable
-10%
8
Yamaha Motors
4G1-84744-00-XX4G1-84744-00-00
Required: 4
BULB (12V-3.4W T10)
Supersedes: 4R0-83517-00-00
$5.39
You save $0.60
-10%
9
Yamaha Motors
Obsolete Yamaha Part3GM-83517-00-00
Required: 3
BULB (12V-1.7W)
$7.64
You save $0.85
-10%
10
Yamaha Motors
Obsolete Yamaha Part3FV-83517-00-00
Required: 1
BULB (12V-1.7W T6.5)
Supersedes: 2GV-83517-00-00
$8.54
You save $0.95
-15%
11
Yamaha Motors
Screw98580-04010-00
Required: 4
SCREW, PAN HEAD
In stock
Only 2 remaining
$8.07
You save $1.42
12
Yamaha Motors
WASHER92903-04100-00
Required: 4
WASHER, SPRING
Supersedes: 92902-04100-00
No longer availableSearch Nationwide Inventory
$1.43
-50%
13
Yamaha Motors
Plate Washer92990-04600-00
Required: 4
WASHER, PLATE
Supersedes: 92901-04600-00
In stock
Only 1 remaining
$0.49
You save $0.49
-10%
14
Yamaha Motors
Tapping Screw90167-04057-00
Required: 2
SCREW, TAPPING
$1.98
You save $0.22
-10%
15
Yamaha Motors
Pan Head Screw98580-03010-00
Required: 3
SCREW, PAN HEAD
$8.54
You save $0.95
-10%
16
Yamaha Motors
Spring Washer92990-03100-00
Required: 3
WASHER, SPRING
$8.54
You save $0.95
-10%
17
Yamaha Motors
Screw with Washer90159-03102-00
Required: 3
SCREW, WITH WASHER
$2.07
You save $0.23
-10%
18
Yamaha Motors
Tapping Screw90164-04008-00
Required: 4
SCREW, TAPPING
$9.44
You save $1.05
-10%
19
Yamaha Motors
Tapping Screw90167-03058-00
Required: 1
SCREW, TAPPING
No longer availableSearch Nationwide Inventory
$1.22
You save $0.14
-10%
20
Yamaha Motors
Socket Cord Assembly4FM-83520-00-00
Required: 1
SOCKET CORD ASSY
Supersedes: 3GM-83520-00-00
No longer availableSearch Nationwide Inventory
$128.69
You save $14.30
-10%
No longer availableSearch Nationwide Inventory
$49.49
You save $5.50
-10%
No longer availableSearch Nationwide Inventory
$2.69
You save $0.30
-10%
23
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-14023-00
Required: 2
GROMMET
Supersedes: 90480-14102-00
$7.64
You save $0.85
-10%
24
Yamaha Motors
Nut95317-06600-00
Required: 2
NUT
Supersedes: 95307-06600-00
$3.46
You save $0.38
-10%
No longer availableSearch Nationwide Inventory
$1.76
You save $0.20
-10%
26
Yamaha Motors
COLLAR90387-06158-00
Required: 2
COLLAR
Supersedes: 90387-063E6-00
$8.54
You save $0.95
27
Yamaha Motors
SPEEDOMETER CABLE ASSY4FL-83550-01
Required: 1
SPEEDOMETER CABLE ASSY
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
