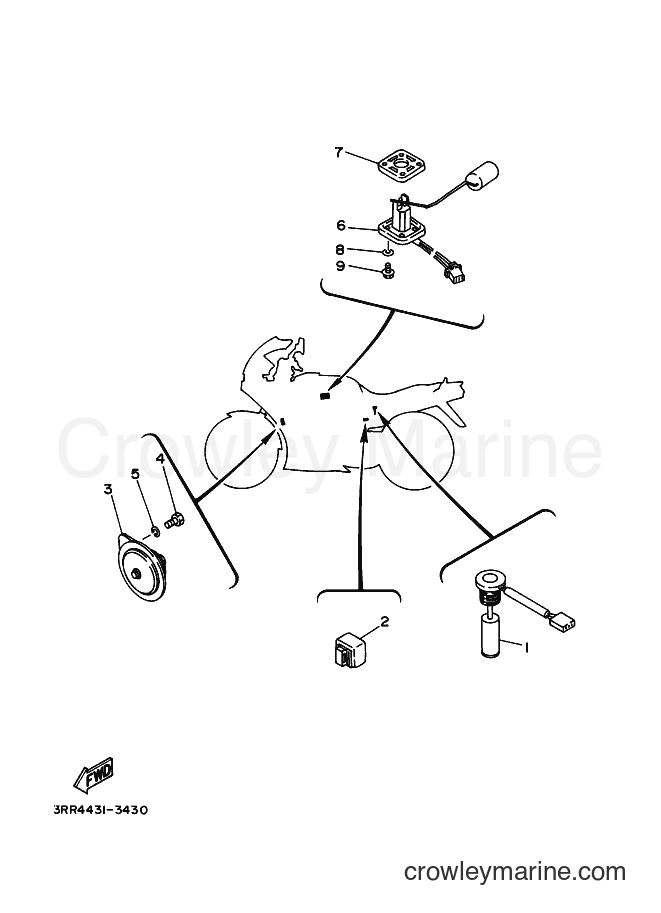

1998 Sport Bike TZR150 - TZR150 (3RR6) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors TZR150 (3RR6) [010] - ELECTRICAL 2
Change View:
OIL LEVEL GAUGE ASSY
1
Yamaha Motors
OIL LEVEL GAUGE ASSY4XC-H5720-00
Required: 1
OIL LEVEL GAUGE ASSY
Price unavailable
-10%
Flasher Relay Assembly
2
Yamaha Motors
Flasher Relay Assembly29G-83350-20-00
Required: 1
FLASHER RELAY ASSY
Cross Ship
Leaves in 2-5 days
$90.99
$81.89
You save $9.10
More details
HORN
3
Yamaha Motors
HORN3RR-H3371-00
Required: 1
HORN
Price unavailable
SENDER UNIT ASSY, FUEL METER
6
Yamaha Motors
SENDER UNIT ASSY, FUEL METER3RR-H5752-00
Required: 1
SENDER UNIT ASSY, FUEL METER
Price unavailable
GASKET, SENDER UNIT
7
Yamaha Motors
GASKET, SENDER UNIT3JF-H5753-00
Required: 1
GASKET, SENDER UNIT
Price unavailable
WASHER, PLATE
8
Yamaha Motors
WASHER, PLATE90202-04218
Required: 4
WASHER, PLATE
Price unavailable
-10%
Flange Bolt
9
Yamaha Motors
Flange Bolt90105-05361-00
Required: 4
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
