1998 Sport Bike TZR150 - TZR150 (3RR6) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

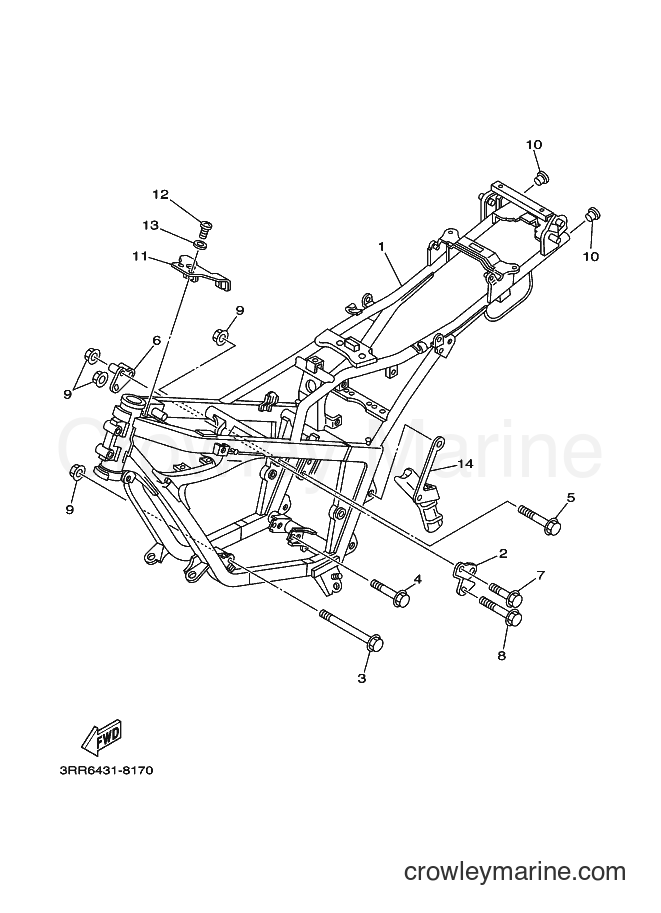

Yamaha Motors TZR150 (3RR6) [010] - FRAME
Change View:
FRAME COMP.
1
Yamaha Motors
FRAME COMP.3RR-F1110-10-35
Required: 1
FRAME COMP.
Price unavailable
STAY, ENGINE 3
2
Yamaha Motors
STAY, ENGINE 33RR-F1316-00
Required: 1
STAY, ENGINE 3
Price unavailable
BOLT, FLANGE
3
Yamaha Motors
BOLT, FLANGE90105-08495
Required: 1
BOLT, FLANGE
Price unavailable
-10%
Washer Based Bolt
4
Yamaha Motors
Washer Based Bolt90105-08721-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$4.80
$4.32
You save $0.48
More details
-10%
FLANGE BOLT (JF2)
5
Yamaha Motors
FLANGE BOLT (JF2)95817-08080-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$5.49
$4.94
You save $0.55
More details
STAY, ENGINE 2
6
Yamaha Motors
STAY, ENGINE 23RR-F1315-00
Required: 1
STAY, ENGINE 2
Price unavailable
-10%
Flange Bolt
7
Yamaha Motors
Flange Bolt95817-08055-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$4.21
$3.79
You save $0.42
More details
-10%
FLANGE BOLT (JF2)
8
Yamaha Motors
FLANGE BOLT (JF2)95817-08080-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$5.49
$4.94
You save $0.55
More details
-15%
Flange Nut
9
Yamaha Motors
Flange Nut95707-08500-00
Required: 5
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.95
$1.66
You save $0.29
More details
-10%
Plug
10
Yamaha Motors
Plug90338-16148-00
Required: 2
PLUG
Cross Ship
Leaves in 2-5 days
$12.49
$11.24
You save $1.25
More details
STAY 1
11
Yamaha Motors
STAY 13RR-F142G-00
Required: 1
STAY 1
Price unavailable
-10%
Screw
12
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98507-06012-00
Cross Ship
Leaves in 2-5 days
$4.10
$3.69
You save $0.41
More details
-10%
Plate Washer
13
Yamaha Motors
Plate Washer92907-06600-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$1.00
$0.90
You save $0.10
More details
HOLDER, FUEL PIPE
14
Yamaha Motors
HOLDER, FUEL PIPE3RR-F1374-20
Required: 1
HOLDER, FUEL PIPE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
