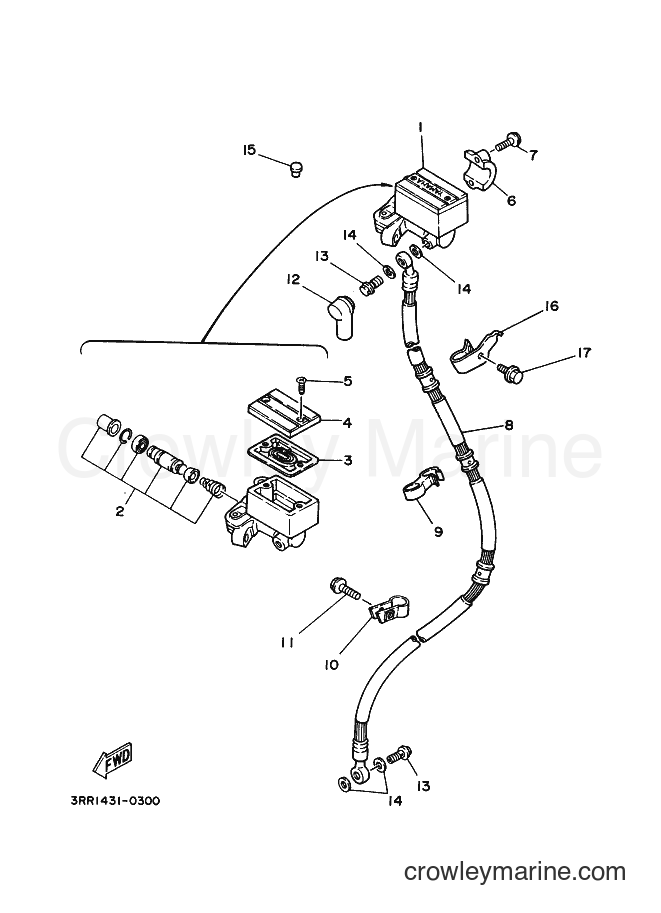

1998 Sport Bike TZR150 - TZR150 (3RR6) [010] FRONT MASTER CYLINDER diagram
![Yamaha Motors TZR150 (3RR6) [010] - FRONT MASTER CYLINDER](https://cdn.crowleymarine.com/yamaha/d6tzoqP4.png)
-10%
1
Yamaha Motors
Master Cylinder Sub Assembly3TB-25870-00-00
Required: 1
MASTER CYLINDER SUB ASSY
Supersedes: 2RJ-25870-00-00
$261.89
You save $29.10
-10%
2
Yamaha Motors
Master Cylinder Kit23L-W0041-00-00
Required: 1
. CYLINDER KIT, MASTER
Supersedes: 4L0-W0041-00-00
$120.59
You save $13.40
-10%
3
Yamaha Motors
DIAPHRAGM RESERVOR4L0-25854-00-00
Required: 1
. DIAPHRAGM, RESERVOIR
$27.89
You save $3.10
-10%
4
Yamaha Motors
Reservoir Cap4H7-25852-00-00
Required: 1
. CAP, RESERVOIR
$39.59
You save $4.40
-10%
5
Yamaha Motors
Flat Screw98707-04012-00
Required: 2
. SCREW, FLAT HEAD
Supersedes: 98706-04012-00
$1.67
You save $0.19
-10%
6
Yamaha Motors
Master Cylinder Bracket4L0-25867-00-00
Required: 1
BRACKET, MASTER CYLINDER
$32.39
You save $3.60
-10%
7
Yamaha Motors
Flange Bolt95811-06025-00
Required: 2
BOLT, FLANGE
Supersedes: 95827-06025-00
No longer availableSearch Nationwide Inventory
$1.53
You save $0.17
8
Yamaha Motors
HOSE, BRAKE 13RR-F5872-01
Required: 1
HOSE, BRAKE 1
Price unavailable
9
Yamaha Motors
GUIDE, CABLE3MA-26279-00
Required: 1
GUIDE, CABLE
Price unavailable
10
Yamaha Motors
HOLDER, BRAKE HOSE 22JK-F5876-01
Required: 1
HOLDER, BRAKE HOSE 2
Price unavailable
-50%
In stock
Only 3 remaining
$1.23
You save $1.23
-10%
12
Yamaha Motors
MASTER CYLINDER BOOT4L0-25862-01-00
Required: 1
BOOT, MASTER CYLINDER
No longer availableSearch Nationwide Inventory
$7.64
You save $0.85
-10%
$11.24
You save $1.25
-20%
14
Yamaha Motors
Plate Washer90201-10118-00
Required: 4
WASHER, PLATE
In stock
Only 5 remaining
$3.04
You save $0.76
-10%
$9.44
You save $1.05
16
Yamaha Motors
HOLDER, BRAKE HOSE 13RR-F5875-00
Required: 1
HOLDER, BRAKE HOSE 1
Price unavailable
-10%
$0.89
You save $0.10
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
