1998 Sport Bike TZR150 - TZR150 (3RR6) [010] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

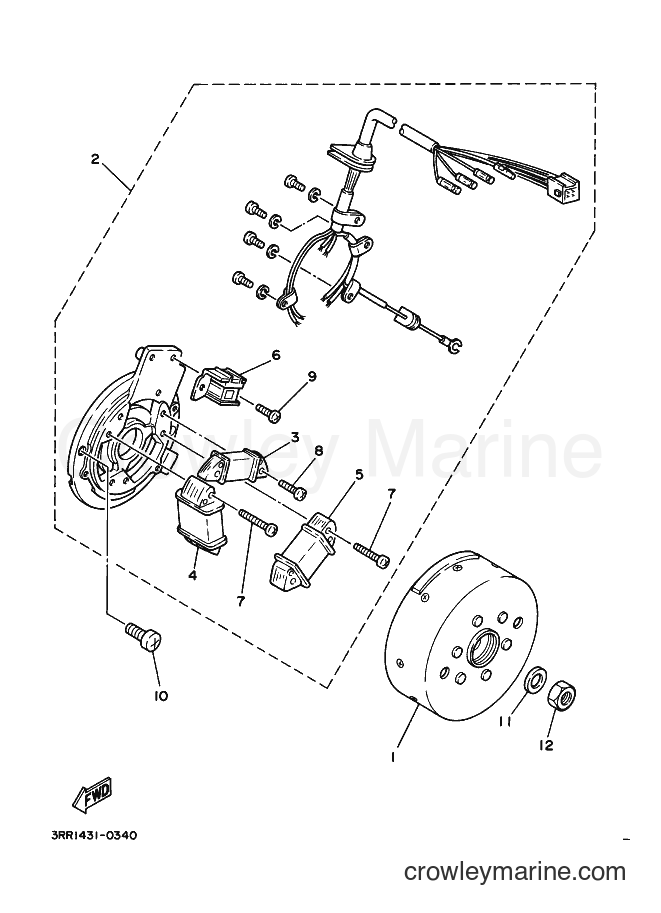

Yamaha Motors TZR150 (3RR6) [010] - GENERATOR

Change View:

Yamaha Motors

ROTOR ASSY4AP-H5550-00

Required: 1

ROTOR ASSY

Price unavailable

Yamaha Motors

BASE ASSY3RR-H5560-00

Required: 1

BASE ASSY

Price unavailable

Yamaha Motors

. COIL, CHARGE3RR-85520-00

Required: 1

. COIL, CHARGE

Price unavailable

Yamaha Motors

. COIL, LIGHTING 13RR-H1313-00

Required: 1

. COIL, LIGHTING 1

Price unavailable

Yamaha Motors

. COIL, LIGHTING 23RR-H1314-00

Required: 1

. COIL, LIGHTING 2

Price unavailable

Yamaha Motors

. COIL, PULSER*

Required: 1

. COIL, PULSER

Price unavailable

Yamaha Motors

Pan Head Screw98507-04030-00

Required: 4

. SCREW, PAN HEAD

Supersedes: 98501-04030-00

$2.52

More details

-10%

Yamaha Motors

Pan Head Screw98517-04016-00

Required: 2

. SCREW, PAN HEAD

Supersedes: 98501-04016-00

~~$9.49~~

$8.54

You save $0.95

-15%

. SCREW, PAN HEAD

Supersedes: 98501-04010-00

In stock

Only 2 remaining

~~$9.49~~

$8.07

You save $1.42

More details

Yamaha Motors

SCREW, PAN HEAD98507-08016

Required: 2

SCREW, PAN HEAD

Price unavailable

-10%

Yamaha Motors

Plate Washer90201-12593-00

Required: 1

WASHER, PLATE

~~$10.49~~

$9.44

You save $1.05

More details

-10%

Yamaha Motors

Hexagon Nut90170-12369-00

Required: 1

NUT

~~$7.99~~

$7.19

You save $0.80

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
