1998 Sport Bike TZR150 - TZR150 (3RR6) [010] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

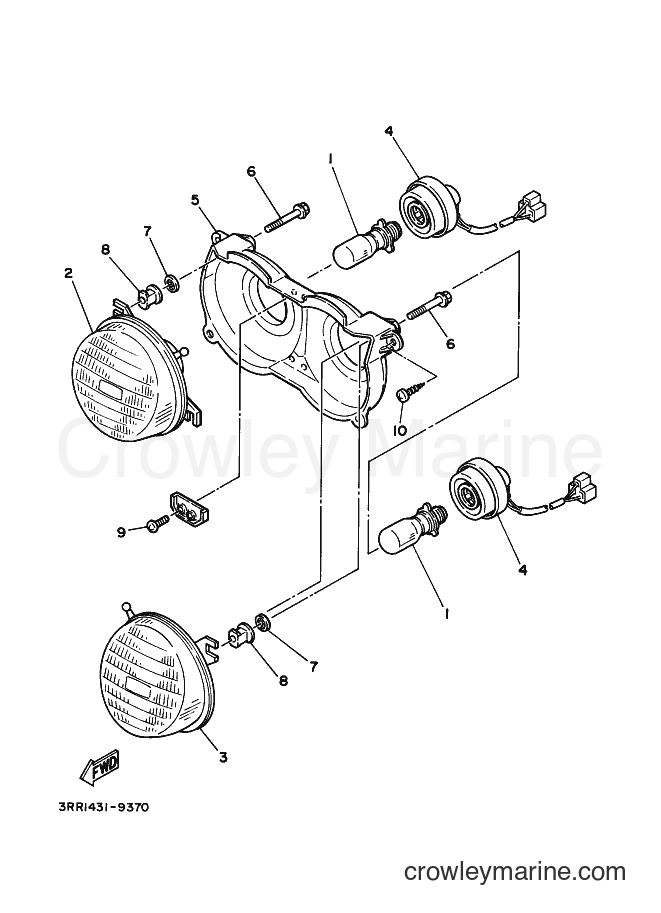

Yamaha Motors TZR150 (3RR6) [010] - HEADLIGHT
Change View:
BULB, HEADLIGHT (12V-25/25W)
1
Yamaha Motors
BULB, HEADLIGHT (12V-25/25W)2JH-H4314-V0
Required: 2
BULB, HEADLIGHT (12V-25/25W)
Price unavailable
LENS ASSY
2
Yamaha Motors
LENS ASSY3RR-H4320-00
Required: 1
LENS ASSY
Price unavailable
LENS ASSY
3
Yamaha Motors
LENS ASSY3RR-H432A-00
Required: 1
LENS ASSY
Price unavailable
SOCKET CORD ASSY 1
4
Yamaha Motors
SOCKET CORD ASSY 13RR-H4340-00
Required: 2
SOCKET CORD ASSY 1
Price unavailable
BODY ASSY
5
Yamaha Motors
BODY ASSY3RR-H4330-00
Required: 1
BODY ASSY
Price unavailable
SCREW, RIM ADJUSTING
6
Yamaha Motors
SCREW, RIM ADJUSTING3RR-H4331-00
Required: 4
SCREW, RIM ADJUSTING
Price unavailable
NUT
7
Yamaha Motors
NUT3RR-H4326-00
Required: 4
NUT
Price unavailable
NUT, ADJUSTING
8
Yamaha Motors
NUT, ADJUSTING3RR-H4334-00
Required: 4
NUT, ADJUSTING
Price unavailable
-10%
Tapping Screw
9
Yamaha Motors
Tapping Screw97707-40616-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-40616-00
Cross Ship
Leaves in 2-5 days
$1.85
$1.67
You save $0.19
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
