1998 Sport Bike TZR150 - TZR150 (3RR6) [010] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

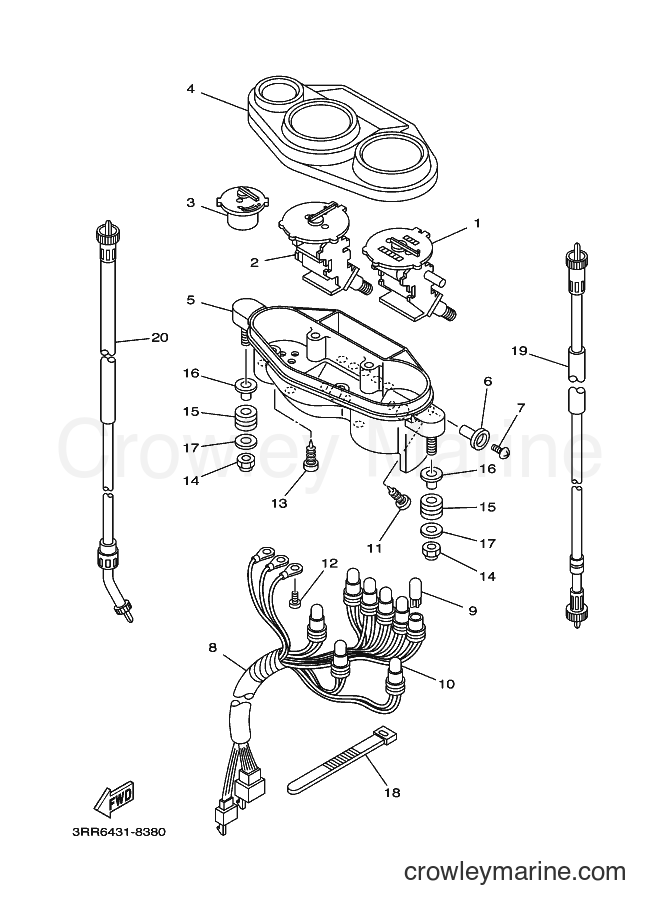

Yamaha Motors TZR150 (3RR6) [010] - METER
Change View:
SPEEDOMETER ASSY
1
Yamaha Motors
SPEEDOMETER ASSY4AP-H3570-00
Required: 1
SPEEDOMETER ASSY
Price unavailable
TACHOMETER ASSY
2
Yamaha Motors
TACHOMETER ASSY4AP-H3540-00
Required: 1
TACHOMETER ASSY
Price unavailable
WATER TEMPERATURE ASSY
3
Yamaha Motors
WATER TEMPERATURE ASSY4AP-H3590-00
Required: 1
WATER TEMPERATURE ASSY
Price unavailable
COVER, METER
4
Yamaha Motors
COVER, METER4AP-H3559-00
Required: 1
COVER, METER
Price unavailable
CASE, UNDER
5
Yamaha Motors
CASE, UNDER4AP-H353H-00
Required: 1
CASE, UNDER
Price unavailable
KNOB, TRIP METER
6
Yamaha Motors
KNOB, TRIP METER3RR-83578-00
Required: 1
KNOB, TRIP METER
Price unavailable
-10%
Pan Head Screw
7
Yamaha Motors
Pan Head Screw90157-02031-00
Required: 1
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$11.49
$10.34
You save $1.15
More details
SOCKET CORD ASSY
8
Yamaha Motors
SOCKET CORD ASSY3RR-H3509-00
Required: 1
SOCKET CORD ASSY
Price unavailable
BULB (12V-3.4W)
9
Yamaha Motors
BULB (12V-3.4W)*
Required: 5
BULB (12V-3.4W)
Price unavailable
BULB (12V-1.7W)
10
Yamaha Motors
BULB (12V-1.7W)*
Required: 3
BULB (12V-1.7W)
Price unavailable
SCREW, TAPPING
11
Yamaha Motors
SCREW, TAPPING*
Required: 4
SCREW, TAPPING
Price unavailable
-10%
Screw with Washer
12
Yamaha Motors
Screw with Washer90159-03102-00
Required: 3
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$2.30
$2.07
You save $0.23
More details
SCREW, SPECIAL
13
Yamaha Motors
SCREW, SPECIAL3RR-H362Y-00
Required: 4
SCREW, SPECIAL
Price unavailable
-10%
Nut
14
Yamaha Motors
Nut95317-06600-00
Required: 2
NUT
Supersedes: 95307-06600-00
Cross Ship
Leaves in 2-5 days
$3.85
$3.46
You save $0.38
More details
DAMPER
15
Yamaha Motors
DAMPER4AP-H3513-00
Required: 2
DAMPER
Price unavailable
-10%
Plate Washer
17
Yamaha Motors
Plate Washer90201-06380-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$0.65
$0.59
You save $0.06
More details
BAND, SWITCH CORD
18
Yamaha Motors
BAND, SWITCH CORD2A1-H3936-10
Required: 1
BAND, SWITCH CORD
Price unavailable
SPEEDOMETER CABLE ASSY
19
Yamaha Motors
SPEEDOMETER CABLE ASSY2JK-H3550-00
Required: 1
SPEEDOMETER CABLE ASSY
Price unavailable
TACHOMETER CABLE ASSY
20
Yamaha Motors
TACHOMETER CABLE ASSY3RR-H3560-00
Required: 1
TACHOMETER CABLE ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
