1998 Sport Bike TZR150 - TZR150 (3RR6) [010] STARTER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

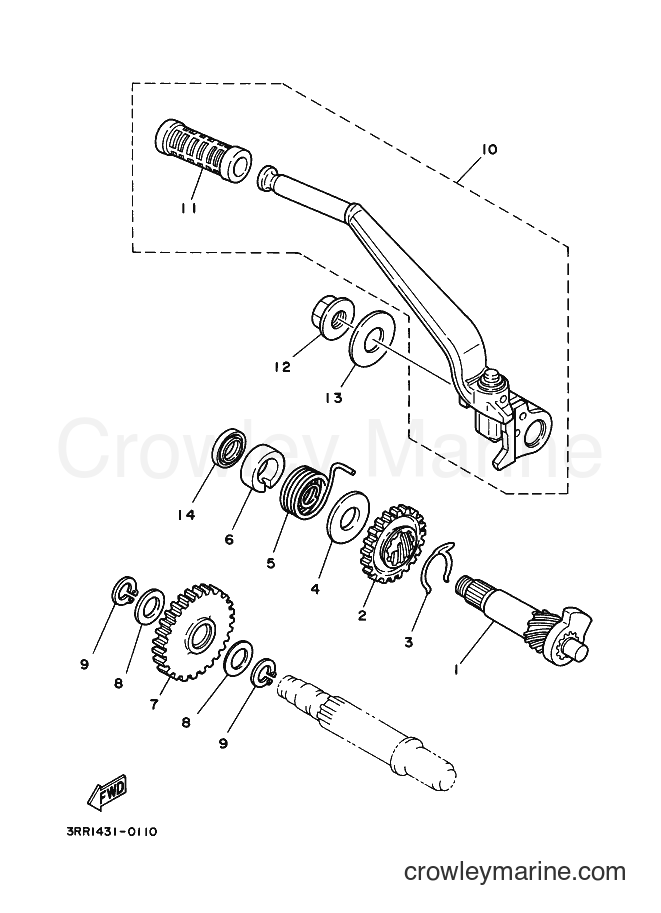

Yamaha Motors TZR150 (3RR6) [010] - STARTER
Change View:
KICK AXLE ASSY
1
Yamaha Motors
KICK AXLE ASSY3RR-E5660-00
Required: 1
KICK AXLE ASSY
Price unavailable
GEAR, KICK
2
Yamaha Motors
GEAR, KICK4MA-E5641-00
Required: 1
GEAR, KICK
Price unavailable
-10%
Clip
3
Yamaha Motors
Clip90468-26048-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Plain Washer
4
Yamaha Motors
Plain Washer90201-200J7-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$11.49
$10.34
You save $1.15
More details
SPRING, TORSION
5
Yamaha Motors
SPRING, TORSION90508-30797
Required: 1
SPRING, TORSION
Price unavailable
SPACER
6
Yamaha Motors
SPACER3JF-E5666-01
Required: 1
SPACER
Price unavailable
GEAR, KICK IDLE
7
Yamaha Motors
GEAR, KICK IDLE4MA-E5651-00
Required: 1
GEAR, KICK IDLE
Price unavailable
-10%
Plain Washer
8
Yamaha Motors
Plain Washer90201-154E8-00
Required: 2
WASHER, PLATE (T=1.0)
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Circlip (Outer)
9
Yamaha Motors
Circlip (Outer)93440-15012-00
Required: 2
CIRCLIP
Supersedes: 93440-15802-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
KICK CRANK ASSY
10
Yamaha Motors
KICK CRANK ASSY3RR-E5620-00
Required: 1
KICK CRANK ASSY
Price unavailable
COVER, KICK LEVER
11
Yamaha Motors
COVER, KICK LEVER2A1-E5618-10
Required: 1
COVER, KICK LEVER
Price unavailable
-10%
Washer Plate
13
Yamaha Motors
Washer Plate90201-133P2-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Oil Seal
14
Yamaha Motors
Oil Seal93109-20069-00
Required: 1
OIL SEAL
Supersedes: 93109-20014-00
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
