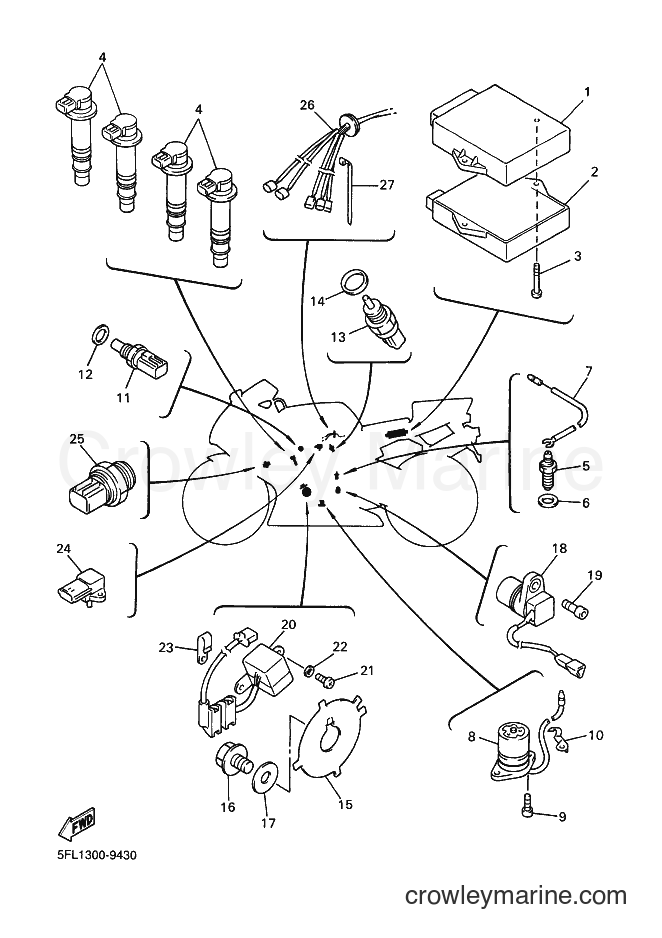

1999 Sport Bike YZF-R7 - YZF-R7 (5FL1) [010] ELECTRICAL 1 diagram
![Yamaha Motors YZF-R7 (5FL1) [010] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/582wvFMJ.png)
-10%
1
Yamaha Motors
ENGINE CONTROL UNIT ASSEMBLY5FL-8591A-00-00
Required: 1
ENGINE CONTROL UNIT ASSY
No longer availableSearch Nationwide Inventory
$928.79
You save $103.20
-10%
2
Yamaha Motors
C.D.I. UNIT ASSY5FL-85540-00-00
Required: 1
C.D.I. UNIT ASSY
No longer availableSearch Nationwide Inventory
$560.69
You save $62.30
-10%
3
Yamaha Motors
Button head bolt92017-06050-00
Required: 2
BOLT, BUTTON HEAD
$2.21
You save $0.25
-10%
4
Yamaha Motors
Ignition Coil Assembly5FL-82310-00-00
Required: 4
IGNITION COIL ASSY
No longer availableSearch Nationwide Inventory
$145.79
You save $16.20
-10%
5
Yamaha Motors
Neutral Switch Assembly4GY-82540-10-00
Required: 1
NEUTRAL SWITCH ASSY
Supersedes: 4KM-82540-00-00
$37.79
You save $4.20
-20%
In stock
Only 3 remaining
$4.79
You save $1.20
-10%
No longer availableSearch Nationwide Inventory
$2.79
You save $0.31
-10%
8
Yamaha Motors
Oil Level Gauge Assembly5FL-85720-00-00
Required: 1
OIL LEVEL GAUGE ASSY
No longer availableSearch Nationwide Inventory
$119.69
You save $13.30
-10%
$9.44
You save $1.05
-10%
No longer availableSearch Nationwide Inventory
$8.54
You save $0.95
-10%
11
Yamaha Motors
Thermosensor Assembly8CC-85790-01-00
Required: 1
THERMOSENSOR ASSY
Supersedes: 8CC-85790-00-00
$93.59
You save $10.40
-10%
12
Yamaha Motors
Plate Washer90201-12790-00
Required: 1
WASHER, PLATE
$9.44
You save $1.05
-10%
13
Yamaha Motors
Thermosensor Assembly5FL-85790-00-00
Required: 1
THERMOSENSOR ASSY
$82.79
You save $9.20
-10%
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$14.39
You save $1.60
-10%
16
Yamaha Motors
Flange Bolt90105-10153-00
Required: 1
BOLT, WASHER BASED
Supersedes: 90105-10217-00
$5.84
You save $0.65
-10%
$12.14
You save $1.35
-10%
18
Yamaha Motors
Speed Sensor5FL-83755-03-00
Required: 2
SENSOR, SPEED
Supersedes: 5FL-83755-00-00
$142.19
You save $15.80
-10%
19
Yamaha Motors
Bolt (4MY)91317-06016-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-06124-00
$1.17
You save $0.13
-10%
No longer availableSearch Nationwide Inventory
$65.42
You save $7.27
-10%
21
Yamaha Motors
Pan Head Screw98517-05012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98507-05012-00
$4.94
You save $0.55
22
Yamaha Motors
Plate Washer92907-05600-00
Required: 2
WASHER, PLATE
$1.98
-10%
23
Yamaha Motors
Clamp90465-08054-00
Required: 1
CLAMP
Supersedes: 90465-08191-00
$5.84
You save $0.65
-10%
24
Yamaha Motors
Pressure Sensor5FL-82380-00-00
Required: 2
SENSOR, PRESSURE
No longer availableSearch Nationwide Inventory
$141.29
You save $15.70
-10%
25
Yamaha Motors
THERMO SWITCH ASSY5EB-82560-01-00
Required: 1
THERMO SWITCH ASSY
Supersedes: 5EB-82560-00-00
$44.99
You save $5.00
-10%
26
Yamaha Motors
Sub Lead Wire5FL-82509-00-00
Required: 1
WIRE, SUB LEAD
No longer availableSearch Nationwide Inventory
$26.99
You save $3.00
-10%
$3.97
You save $0.44
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
