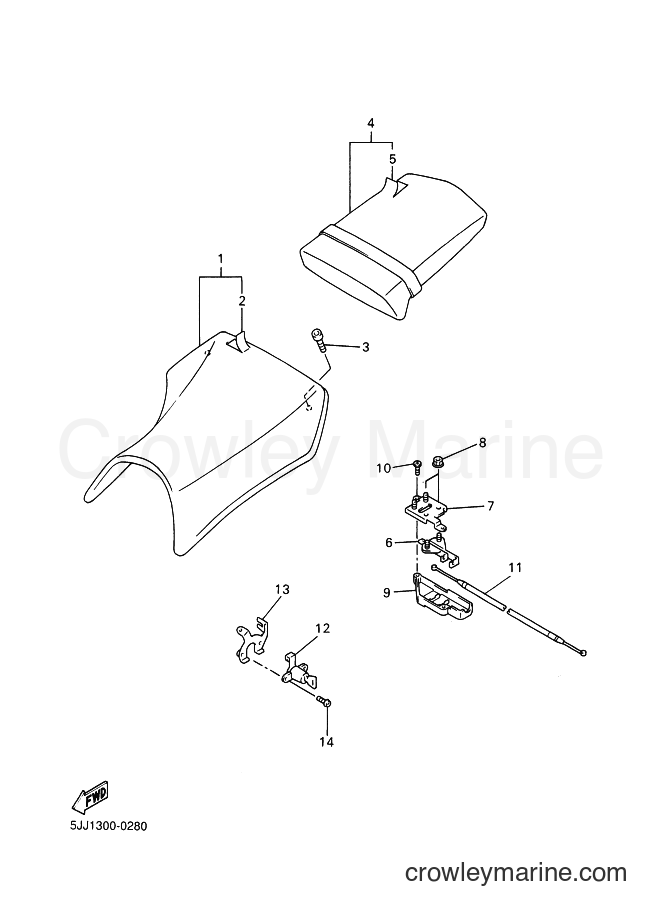

2000 Sport Bike YZF-R1 - YZF-R1 (5JJ1) [070] SEAT diagram
![Yamaha Motors YZF-R1 (5JJ1) [070] - SEAT](https://cdn.crowleymarine.com/yamaha/WJC0b8z1.png)
-10%
1
Yamaha Motors
SINGLE SEAT ASSEMBLY5JJ-24710-00-00
Required: 1
SINGLE SEAT ASSY
No longer availableSearch Nationwide Inventory
$199.79
You save $22.20
-10%
2
Yamaha Motors
Seat Cover5JJ-2470F-00-00
Required: 1
. SEAT COVER COMP.
No longer availableSearch Nationwide Inventory
$83.69
You save $9.30
-10%
3
Yamaha Motors
HEXAGON SOCKET BOLT90110-06258-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
$9.44
You save $1.05
-10%
4
Yamaha Motors
Tandem Seat Assembly5JJ-24750-00-00
Required: 1
TANDEM SEAT ASSY
No longer availableSearch Nationwide Inventory
$220.49
You save $24.50
-10%
5
Yamaha Motors
Tandem Seat Cover5JJ-24751-00-00
Required: 1
. COVER, TANDEM SEAT
No longer availableSearch Nationwide Inventory
$58.49
You save $6.50
-50%
In stock
Only 1 remaining
$52.99
You save $52.99
-10%
7
Yamaha Motors
Plate5JJ-24792-01-00
Required: 1
PLATE
Supersedes: 5JJ-24792-00-00
No longer availableSearch Nationwide Inventory
$10.79
You save $1.20
-10%
$0.90
You save $0.10
-10%
9
Yamaha Motors
Cover 25JJ-2475X-01-00
Required: 1
COVER,2
Supersedes: 5JJ-2475X-00-00
No longer availableSearch Nationwide Inventory
$7.19
You save $0.80
-10%
10
Yamaha Motors
Truss Screw97707-40012-00
Required: 2
SCREW, TAPPING
$8.54
You save $0.95
-10%
11
Yamaha Motors
SEAT LOCK CABLE5JJ-2478E-00-00
Required: 1
CABLE, SEAT LOCK
No longer availableSearch Nationwide Inventory
$14.39
You save $1.60
-10%
12
Yamaha Motors
SEAT LOCK ASSEMBLY3CK-W2470-00-00
Required: 1
ROTOR SET
Supersedes: 2TV-W2470-00-00
$82.79
You save $9.20
-10%
$17.99
You save $2.00
-10%
$8.54
You save $0.95
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
