2000 Sport Bike YZF-R1 - YZF-R1 (5JJ1) [070] STARTING MOTOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

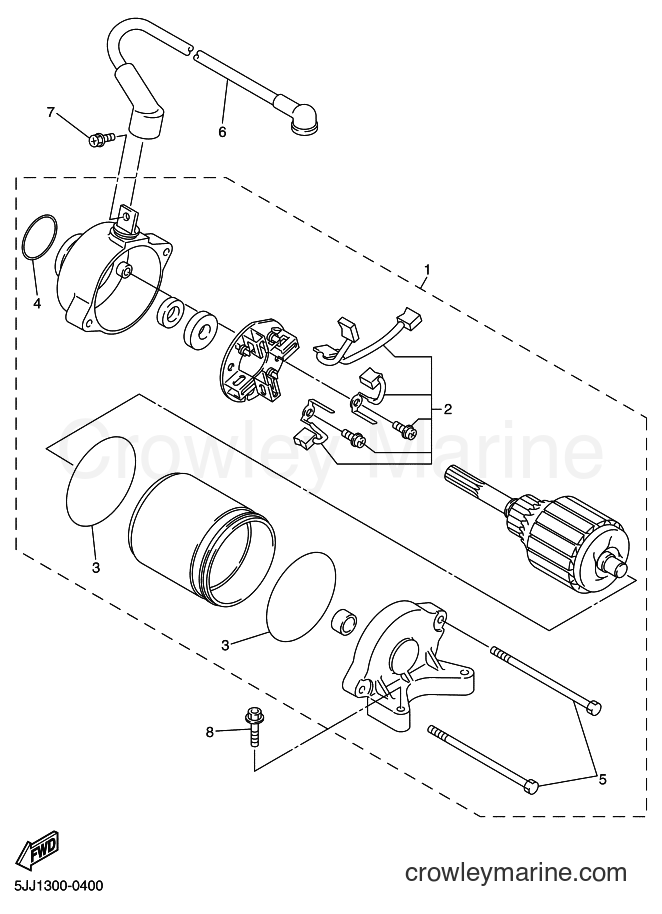

Yamaha Motors YZF-R1 (5JJ1) [070] - STARTING MOTOR

Change View:

-10%

Yamaha Motors

Lower Motor Unit Assembly5PW-81890-02-00

Required: 1

MOTOR ASSY

Supersedes: 5JJ-81890-00-00

~~$736.99~~

$663.29

You save $73.70

More details

-10%

Yamaha Motors

Brush Set5PW-81801-00-00

Required: 1

. BRUSH SET

Supersedes: 5JJ-81801-00-00

~~$69.99~~

$62.99

You save $7.00

-10%

. O-RING

~~$9.49~~

$8.54

You save $0.95

-10%

. O-RING

~~$8.49~~

$7.64

You save $0.85

More details

-10%

Yamaha Motors

Screw (M8 X 40)5PW-81846-00-00

Required: 2

. SCREW

Supersedes: 5JJ-81846-00-00

~~$7.99~~

$7.19

You save $0.80

More details

-10%

Yamaha Motors

CORD COMP.5JJ-8183G-00-00

Required: 1

CORD COMP.

No longer availableSearch Nationwide Inventory

~~$44.99~~

$40.49

You save $4.50

-10%

BOLT 2

Supersedes: 5JJ-81828-00-00

No longer availableSearch Nationwide Inventory

~~$2.25~~

$2.02

You save $0.23

More details

-20%

Yamaha Motors

Small Flange Bolt95027-06025-00

Required: 2

BOLT, FLANGE

In stock

Only 1 remaining

~~$4.16~~

$3.33

You save $0.83

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
