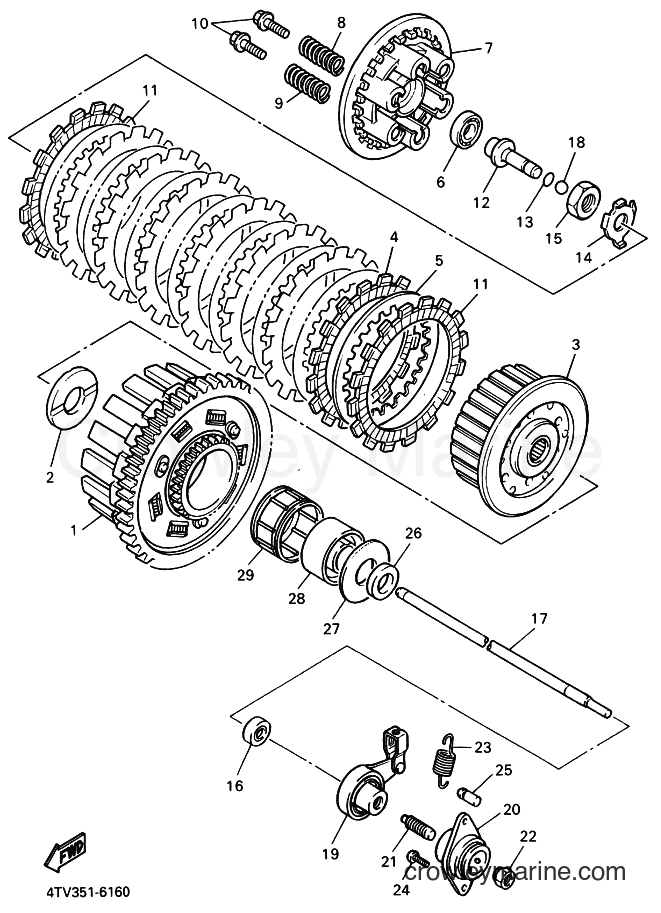

2000 Sport Bike YZF600R - YZF600R (4WE5) [030] CLUTCH diagram
![Yamaha Motors YZF600R (4WE5) [030] - CLUTCH](https://cdn.crowleymarine.com/yamaha/srZs8dNC.png)
-10%
1
Yamaha Motors
Primary Driven Gear4JH-16150-00-00
Required: 1
PRIMARY DRIVEN GEAR COMP.
No longer availableSearch Nationwide Inventory
$444.59
You save $49.40
-10%
2
Yamaha Motors
Thrust Plate1WG-16154-00-00
Required: 1
PLATE, THRUST 1
No longer availableSearch Nationwide Inventory
$33.29
You save $3.70
-10%
No longer availableSearch Nationwide Inventory
$132.29
You save $14.70
-10%
4
Yamaha Motors
Friction Plate4JH-16321-00-00
Required: 7
PLATE, FRICTION
$26.09
You save $2.90
-10%
5
Yamaha Motors
CLUTCH PLATE1LX-16324-00-00
Required: 8
PLATE, CLUTCH 1
$23.39
You save $2.60
-50%
6
Yamaha Motors
93306-00105-0093306-00101-00
Required: 1
BEARING (B6001)
Supersedes: 93306-00105-00
In stock
Only 1 remaining
$8.00
You save $8.00
-10%
7
Yamaha Motors
PRESSURE PLATE 14JH-16351-00-00
Required: 1
PLATE, PRESSURE 1
$79.19
You save $8.80
-10%
8
Yamaha Motors
Compression Spring90501-23346-00
Required: 3
SPRING, COMPRESSION
$14.84
You save $1.65
-10%
9
Yamaha Motors
Compression Spring90501-224J9-00
Required: 3
SPRING, COMPRESSION
$11.24
You save $1.25
-10%
10
Yamaha Motors
Screw with Washer90159-06092-00
Required: 6
SCREW, WITH WASHER
$9.44
You save $1.05
-10%
11
Yamaha Motors
Friction Plate3JD-16321-00-00
Required: 2
PLATE, FRICTION
$26.09
You save $2.90
-10%
$29.69
You save $3.30
-50%
In stock
5+ in stock
$4.75
You save $4.75
-10%
$14.84
You save $1.65
-10%
$14.84
You save $1.65
-50%
16
Yamaha Motors
SDO TYPE OIL SEAL93109-08058-00
Required: 1
OIL SEAL (SD07 8-21-5.5 HS)
In stock
Only 1 remaining
$6.75
You save $6.75
-10%
17
Yamaha Motors
Push Rod4JH-16357-01-00
Required: 1
ROD, PUSH 2
Supersedes: 4JH-16357-00-00
$32.39
You save $3.60
-50%
In stock
Only 3 remaining
$1.45
You save $1.45
-10%
19
Yamaha Motors
PUSH LEVER ASSEMBLY4JH-16340-00-00
Required: 1
PUSH LEVER ASSY
$62.99
You save $7.00
-50%
20
Yamaha Motors
BALL SCREW HOUSING ASSEMBLY1WG-16304-00-00
Required: 1
BALL SCREW HOUSING ASSY
In stock
Only 1 remaining
$72.00
You save $72.00
-10%
$10.34
You save $1.15
-10%
$7.64
You save $0.85
-50%
23
Yamaha Motors
TENSION SPRING90506-11488-00
Required: 1
SPRING, TENSION
In stock
Only 1 remaining
$5.25
You save $5.25
-50%
24
Yamaha Motors
PAN HEAD SCREW (3SX)98517-05010-00
Required: 2
SCREW, PAN HEAD
Supersedes: 90157-05065-00
In stock
Only 4 remaining
$2.30
You save $2.30
-10%
$9.89
You save $1.10
-10%
$18.89
You save $2.10
-10%
27
Yamaha Motors
Thrust Plate1WG-16164-00-00
Required: 1
PLATE, THRUST 2
No longer availableSearch Nationwide Inventory
$20.69
You save $2.30
-10%
No longer availableSearch Nationwide Inventory
$44.99
You save $5.00
-10%
No longer availableSearch Nationwide Inventory
$49.49
You save $5.50
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
