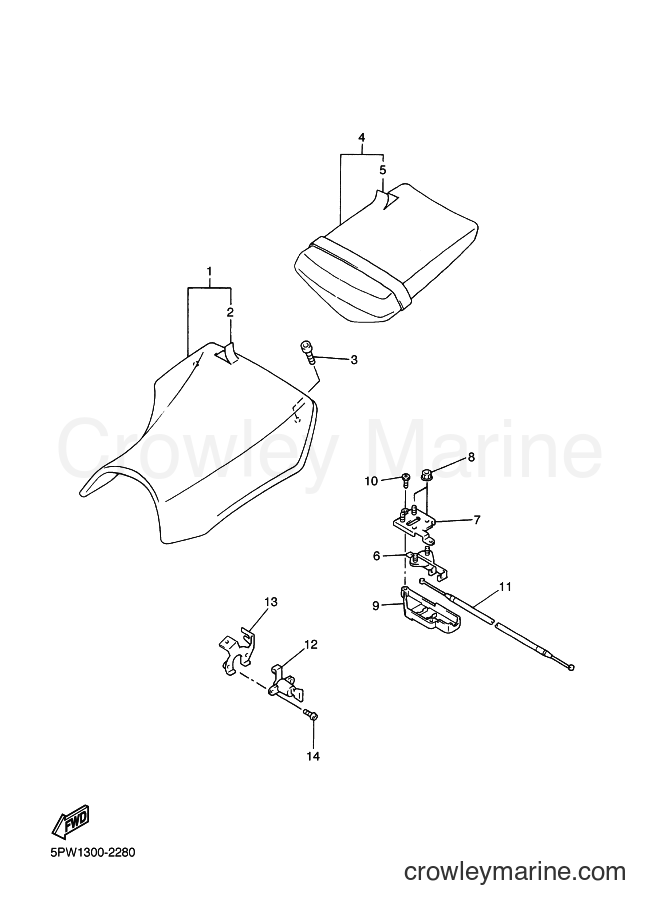

2003 Sport Bike YZF-R1 - YZF-R1 (5PW7) [040] SEAT diagram
![Yamaha Motors YZF-R1 (5PW7) [040] - SEAT](https://cdn.crowleymarine.com/yamaha/4NTJzaWC.png)
-10%
1
Yamaha Motors
SINGLE SEAT ASSEMBLY5PW-24710-01-00
Required: 1
SINGLE SEAT ASSY
No longer availableSearch Nationwide Inventory
$165.59
You save $18.40
-10%
2
Yamaha Motors
SEAT COVER - COMPLETE5PW-2470F-00-00
Required: 1
. SEAT COVER COMP.
No longer availableSearch Nationwide Inventory
$78.32
You save $8.70
-10%
3
Yamaha Motors
HEXAGON SOCKET BOLT90110-06258-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
$9.44
You save $1.05
-10%
4
Yamaha Motors
Tandem Seat Assembly5PW-24750-00-00
Required: 1
TANDEM SEAT ASSY
$222.29
You save $24.70
-10%
5
Yamaha Motors
Tandem Seat Cover5PW-24751-00-00
Required: 1
. COVER, TANDEM SEAT
No longer availableSearch Nationwide Inventory
$55.79
You save $6.20
-50%
In stock
Only 1 remaining
$52.99
You save $52.99
-10%
No longer availableSearch Nationwide Inventory
$10.79
You save $1.20
-10%
$0.90
You save $0.10
-10%
No longer availableSearch Nationwide Inventory
$7.19
You save $0.80
-10%
10
Yamaha Motors
Truss Screw97707-40012-00
Required: 2
SCREW, TAPPING
$8.54
You save $0.95
-10%
11
Yamaha Motors
SEAT LOCK CABLE5JJ-2478E-00-00
Required: 1
CABLE, SEAT LOCK
No longer availableSearch Nationwide Inventory
$14.39
You save $1.60
-10%
12
Yamaha Motors
SEAT LOCK ASSEMBLY3CK-W2470-00-00
Required: 1
SEAT LOCK ASSY
Supersedes: 2TV-W2470-00-00
$82.79
You save $9.20
-10%
$11.69
You save $1.30
-10%
$8.54
You save $0.95
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
