2003 Sport Bike YZF-R1 - YZF-R1 (5PW7) [030] STARTING MOTOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

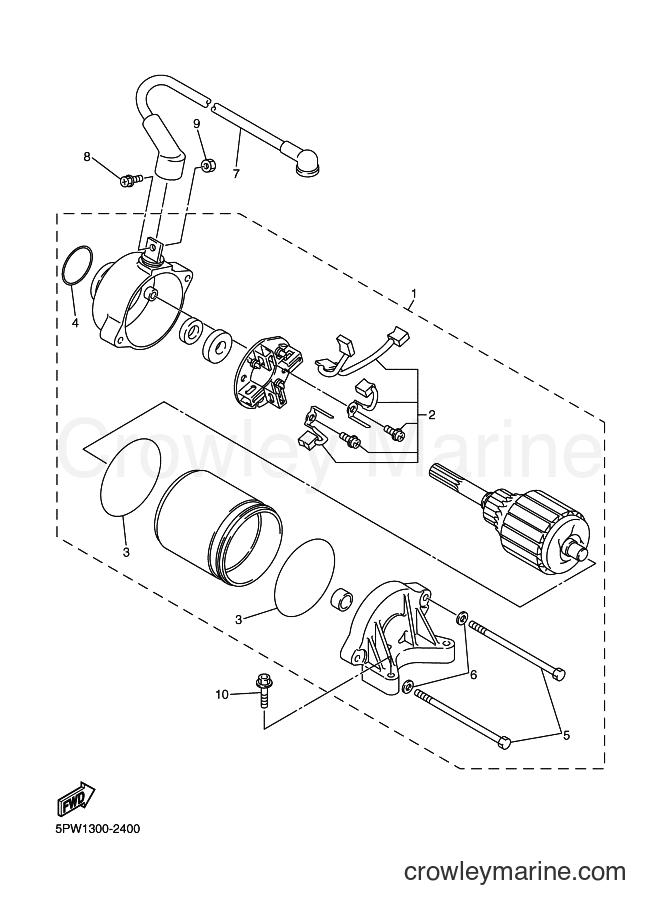

Yamaha Motors YZF-R1 (5PW7) [030] - STARTING MOTOR
Change View:
-10%
Lower Motor Unit Assembly
1
Yamaha Motors
Lower Motor Unit Assembly5PW-81890-02-00
Required: 1
MOTOR ASSY
Supersedes: 5PW-81890-01-00
Cross Ship
Leaves in 2-5 days
$736.99
$663.29
You save $73.70
More details
-10%
Brush Set
2
Yamaha Motors
Brush Set5PW-81801-00-00
Required: 1
. BRUSH SET
Cross Ship
Leaves in 2-5 days
$69.99
$62.99
You save $7.00
More details
-10%
O-Ring
3
Yamaha Motors
O-Ring93210-55669-00
Required: 2
. O-RING
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
O-Ring
4
Yamaha Motors
O-Ring93210-25711-00
Required: 1
. O-RING
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-10%
Screw (M8 X 40)
5
Yamaha Motors
Screw (M8 X 40)5PW-81846-00-00
Required: 2
. SCREW
Cross Ship
Leaves in 2-5 days
$7.99
$7.19
You save $0.80
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
